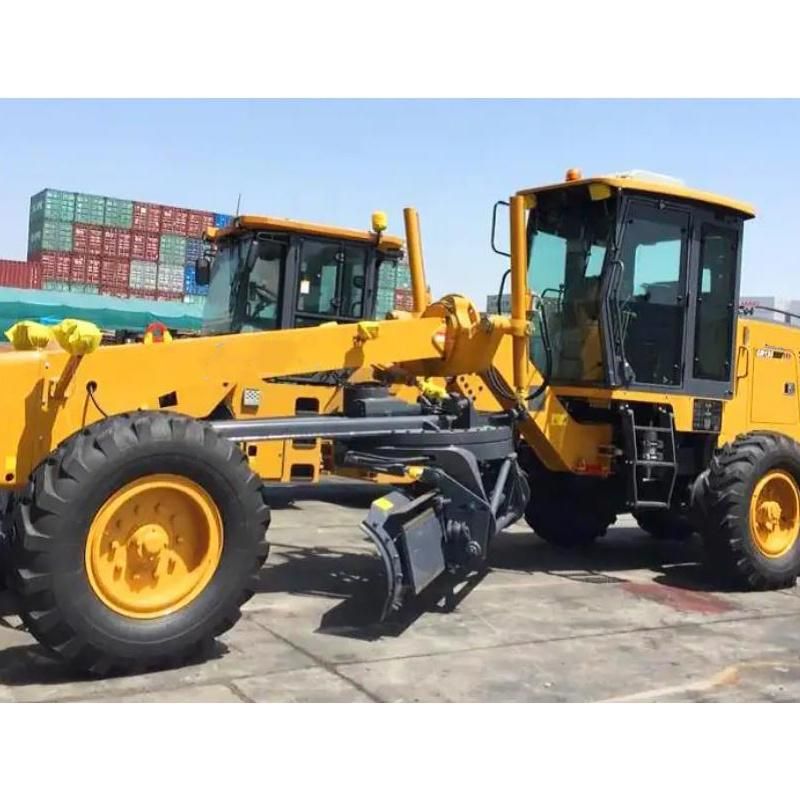

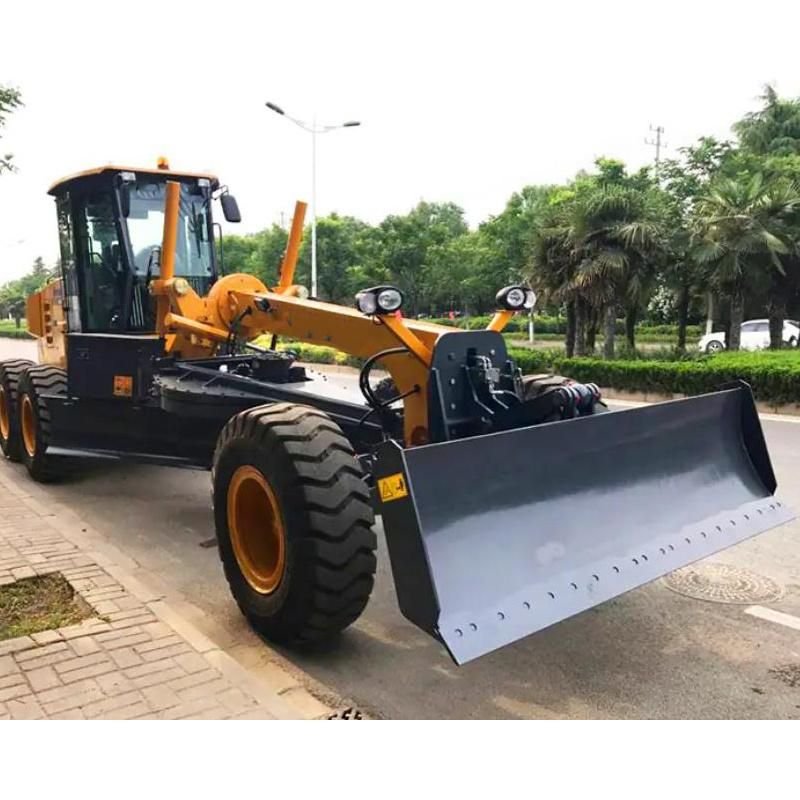

Top Factory 300HP Motor Grader Gr3005 with Ripper
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：GR3005
- Walking Mode：Wheeled
- Type：Large Grader
- Engine Model：Qsl8.9-C325-30
- Rated Power/Speed：242kw,2100rpm
- Total Weight：28000kg
- Tire Specification：20.5-25
- Ground Clearance (Front Axle)：450mm
- Space of Front and Rear Axles：7617mm
- Space of Middle and Rear Wheels：1960mm
- Pitch (mm)：203
- Tractive Effort：140kn
- Maximum Gradeability：30
- Tire Inflation Pressure：330kpa
- Working System Pressure：22MPa
- Minimum Turning Radius：9m
- Maximum Lift Height：419mm
- Maximum Cutting Depth：438mm
- Transport Package：Nude
- Specification：10615*3280*3960mm
- Trademark：Famous
- Origin：China
- HS Code：8429201000
- Production Capacity：1000 Units,Year
Description
210LPictures
Why choose us
Why choose us
