• Model NO.：YN958
• Bucket Capacity：3.0 M3
• Dumping Height：3100 mm
• Dumping Reach：1280 mm
• Max. Breakout Force：170 Kn
• Max. Drawing Force：150 Kn
• Max. Grade Ability：30°
• Rated Power：162kw,2200rpm
• Overall Dimensions：7960*3070*3400 mm
• Operating Weight：17000 Kg
• Usage：Universal Type
• Engine Power：147~515kw
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Color：Yellow
• Transport Package：Naked
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China
• HS Code：8429510000
• Production Capacity：50PCS,Week

Basic Info.

Model NO. YN958 Bucket Capacity 3.0 M3 Dumping Height 3100 mm Dumping Reach 1280 mm Max. Breakout Force 170 Kn Max. Drawing Force 150 Kn Max. Grade Ability 30° Rated Power 162kw/2200rpm Overall Dimensions 7960*3070*3400 mm Operating Weight 17000 Kg Usage Universal Type Engine Power 147~515kw Scraper Type Pull Scraper Load and Unload Method Front Discharge Color Yellow Transport Package Naked Trademark YINENG Origin Taian City, Shandong Province, China HS Code 8429510000 Production Capacity 50PCS/Week

Product Description

3 m3, 5 ton front wheel loader, with ISO9001: 2000 and CE approved.

* Weichai Steyr diesel engine WD10G220E21 is adopted, large torque backup and strong power.
* Heavier chassis
* Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.
* Strengthened axles owning large bearing capacities and high reliability.
* Twin pump merging hydraulic system makes lower consumption and excellent performance.
* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
* Air over hydraulic brake system; Eight caliper disc brakes.
* Air break control, expand hoof type parking brake and emergency brake.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns
Good durability.

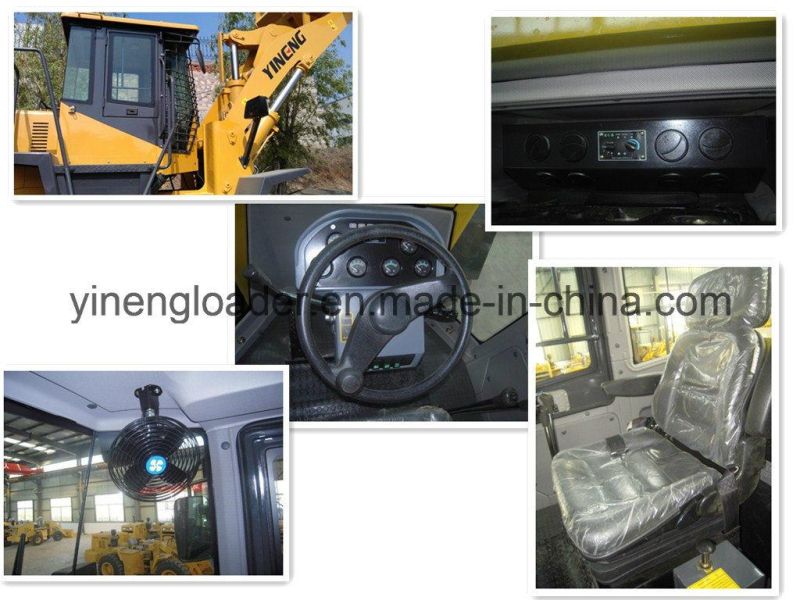

* Integral, luxury instrument board.

OPTIONALS:
(1) Dongfeng Cummins 6CTA8.3-C215
(2) A/C
(3) Joystick Control
(4) Quick Hitch
(5) Fork
(6) ROPS
(7) ZF TECH GEARBOX (WG180)
(8) ZF TECH GEARBOX (WG200)

Item	Specifications	Item	Specifications
Bucket capacity	3.0 m3	Rated power	162kW/2200rpm
Rated load	5000 kg	Tyre	23.5-25
Dumping height	3100 mm	Overall dimensions	7960*3070*3400mm
Max. breakout force	170 KN	Operating weight	17000kg
Max. drawing force	150 KN


Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
