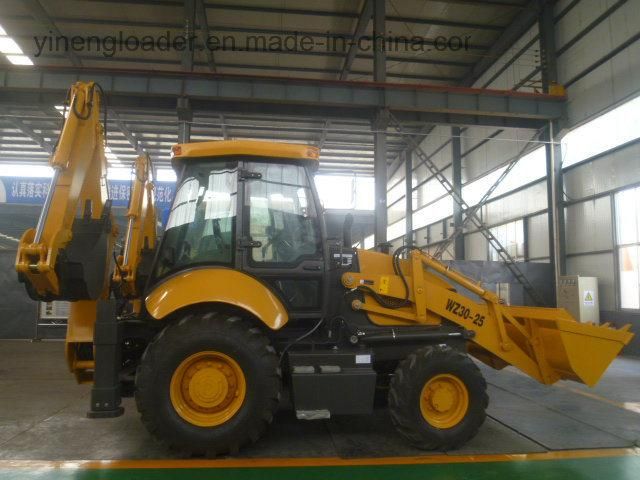

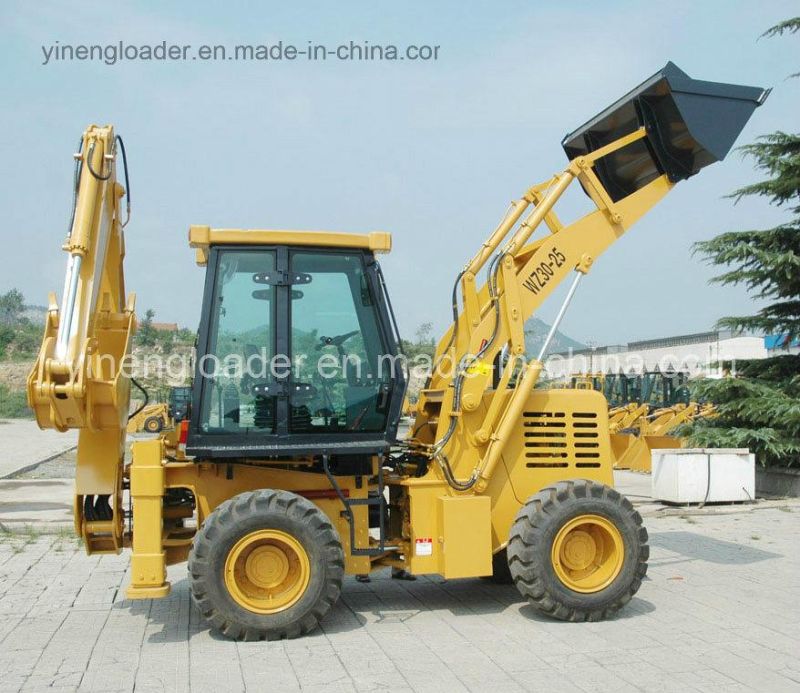

2 Ton Backhoe Wheel Loader with Excavator
Shandong Yineng Heavy Industry Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：1-3t
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
Base Info
- Model NO.：WZ30-25Backhoe loader
- Width X Height：5900X 2300 X 3769(mm)
- Cab Roof Height：2900(mm)
- Transport Package：Naked
- Specification：3ton
- Trademark：YN
- Origin：Taian
- HS Code：84295100
- Production Capacity：30000 PCS,Year
Description
Basic Info.
Model NO. WZ30-25Backhoe loader Width X Height 5900X 2300 X 3769(mm) Cab Roof Height 2900(mm) Transport Package Naked Specification 3ton Trademark YN Origin Taian HS Code 84295100 Production Capacity 30000 PCS/YearProduct Description
Overall Dimension
| Overall Dimension | |
| Length * Width * Height | 7070*2300 * 3769(mm) |
| Cab roof height | 2900(mm) |
| Wheel base | 2250(mm) |
| Track | 1640(mm) |
| Min. ground clearance | 300(mm) |
| Main Technical Specification | |
| load hydraulic system | 18Mpa |
| dig hydraulic system | 20Mpa |
| steering hydraulic system | 12Mpa |
| system flow | 120L/min |
| total operating weight | 7600kg |
| maximum speed | 22Km/h |
| maximum gradient capacity | 30° |
| loading bucket capacity | 1.0 m3 |
| rated loading | 2500KG |
| maximum articulated height of bucket | 3400(mm) |
| bucket discharge height | 2795(mm) |
| bucket discharge distance | 1048(mm) |
| loading lift capacity | 25KN |
| bucket lift time | 6.8s |
| bucket lower time | 2.5s |
| bucket discharge time | 1.2s |
| maximum tractive force | 39KN |
| maximum breakout force | 38KN |
| backacter bucket capacity | 0.3m3 |
| backacter discharge height | 3878(mm) |
| maximum digging depth | 4500(mm) |
| maximum digging radius | 5688(mm) |
| bucket slewing angle | 190° |
| bucket digging capacity | 46KN |
| bucket stick digging capacity | 31KN |
