• Model NO.：SEM921
• Engine Model：Sc9dk190.1g3
• Rated Power/Speed：140,2200kw,Rpm
• Max.Gradeability：30
• Min.Turning Radius：7.3m
• Rated Power：140kw
• Transmission Type：Hangchi 6wg180
• Blade Cutting Angle：20-70
• Circle Reversing Rotation：360
• Molo Board Width * Height：3965*610mm
• Operating Weight：15,070kg
• Transport Package：Nude
• Specification：70CBM
• Trademark：MAFAL
• Origin：Qinzhou
• HS Code：84292010
• Production Capacity：200units

Basic Info.

Model NO. SEM921 Engine Model Sc9dk190.1g3 Rated Power/Speed 140/2200kw/Rpm Max.Gradeability 30 Min.Turning Radius 7.3m Rated Power 140kw Transmission Type Hangchi 6wg180 Blade Cutting Angle 20-70 Circle Reversing Rotation 360 Molo Board Width * Height 3965*610mm Operating Weight 15,070kg Transport Package Nude Specification 70CBM Trademark MAFAL Origin Qinzhou HS Code 84292010 Production Capacity 200units

Product Description

SEM BRAND Cheap SEM919 Sem921 Motor Grader for Afirica

Main parameters:

SEM Tandem Axle

• Leveraging Caterpillar designing and experience on MG tandem axle
• Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
• Less down time and reduced labor and service cost for maintenance and repairing
• Longer service interval for lubrication oil change
• Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line

Control System

• 7 position link bar with electric over hydraulic control allows ease of operation from within the cab
• Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
• The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
• Replaceable bushings reduce service time and cost

Blade Float

• Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
• Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
• Provides protection for machine and pavement during snow removal and snow plowing

Hydraulic System

• Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
• World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
• Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
• Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks

Drawbar

• A-frame tubular design drawbar provides maximum strength and durability
• Replaceable drawbar draft ball (bolted - not welded) for less service time and cost
• Easy removal of wear shims to adjust drawbar

Front Frame

• Flanged box section design removes welds from high stress areas, improving reliability and durability
• Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
• Hydraulic hose routing minimizes exposure to damage and provides quick access for service
• Maintenance-free bushings improve durability and reduce overall service cost

Control Layout

• Short throw levers are efficiently spaced, allowing ease of multi-function control
• Short lever travel (40mm) with low lever effort reduces operator fatigue
• Large Cab
• High performance dashboard with 3 levels alarming monition system
• Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
• Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort

• Specifications

  Operating Weight	15,930 kg
  Engine Model	SDEC SC9D220G2
  Rated Power	162 kW/217 hp
  Overall Dimensions L*W*H	8854x2630x3360 mm
  Blade Length	4,279 mm
  Max. Drawbar	85 kN
  Max. Lift above Ground (Blade)	475 mm
  Max. Depth of Cut (Blade)	715 mm
  Max. Blade Tip - Forward	40º
  Max. Blade Tip - Rear	5º
  Front Axle Steering Angle Left/Right	47.5º
  Min. Turning Radius	7.8 m
  Tandem Oscillation (Front up)	15º
  Tandem Oscillation (Rear up)	25º
  Transmission Model	Hangchi 6WG180
  Gears	F6/R3
  Tires	17.5-25

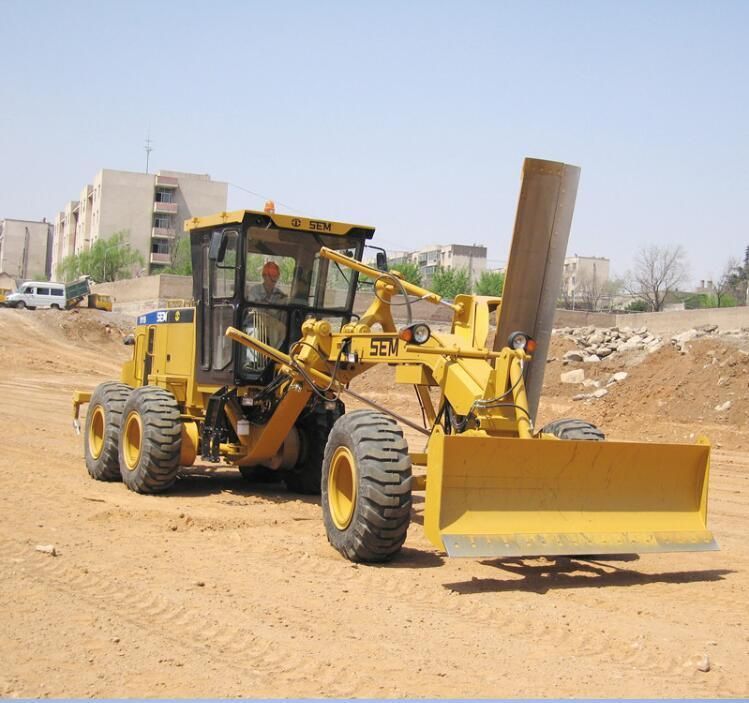

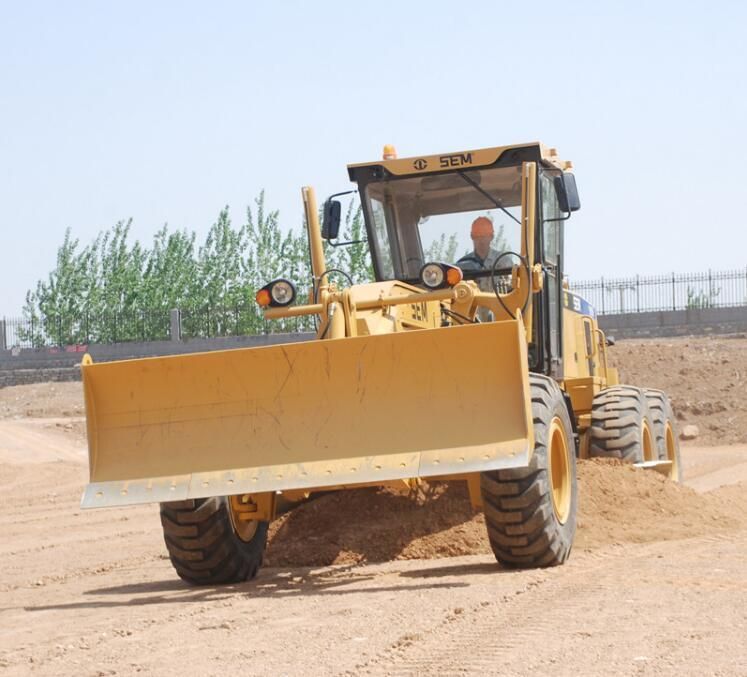

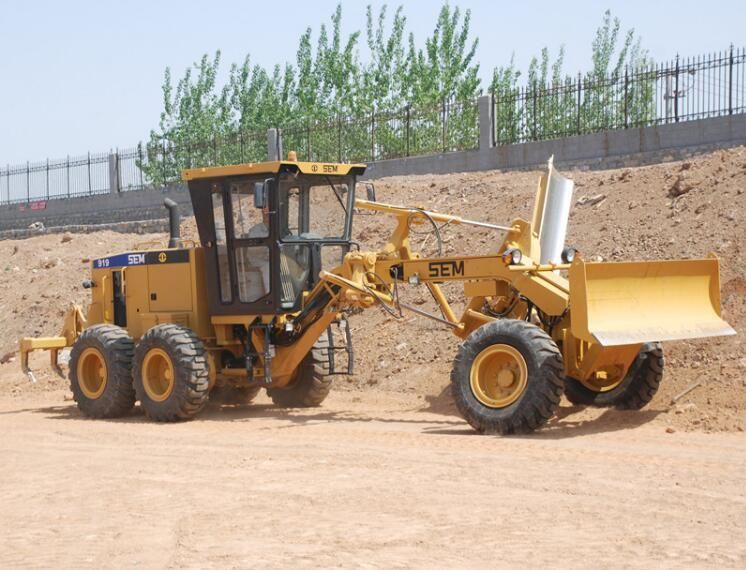

Photos:




1.. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, Ghana,Algeria,Nigeria,Congo,Mozambique ,Kenya etc.

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material

Other questions, please contact me directly!!
Peter 008615921244786
