• Maximum Digging Height：3085mm
• After Warranty Service：Video Technical Support
• Color：Blue
• Unique Selling Point：High Digging Power
• Applicable Industries：Manufacturing Plant
• Maximum Digging Depth：1825mm
• Max Digging Radius：1221mm
• Hydraulic Valve Brand：Kyb
• Hydraulic Pump Brand：Kyb
• Operating Weight：1ton
• Moving Type：Crawler Excavator
• Engine Brand：Isuzu
• Trademark：SUNWARD
• Origin：Hunan, China
• Production Capacity：100000 Set,Sets Per Year

Type of cabCanopyBucket capacity,std.0.04m3Bucket width380mmMachine weight1880kg

Dimensions

Overall length3582mmOverall height2415mmOverall width990mmGround clearance160mm

Engine

BrandYanmarModel3TNV80F-SSSUDisplacement1.267LOutput13.4kW/2200rpm

Working ranges



Max. cutting height3458mmMax. loading height2431mmMax. digging depth2206mmMax. vertical wall digging depth1590mmMax. digging reach3942mmoom swing angle(left/right)71°/49°Front swing radius1794mmTail swing radius680mmMax. digging force(Arm)11.24kNMax. digging force(Bucket)22.7kNTrackTypeRubber trackTrack width230mm

Undercarrige

Track length1538mmLength to center of rollers1210mmLenhth to center of track760/1090 mmTravelling speed(High/Low)3.5/2 km/hGradeability30°Swing speed10rpmDozer sizeWidth990/1320 mmHeight267mmLifting capacity (Height/Depth)216/270 mmHydraulic pumps2 variable plunger pumps (21L/min)1 gear pump (15L/min)1 pilot gear pump (5.9L/min)Fuel tank capacity24.6LHydraulic oil tank capacity18.6L

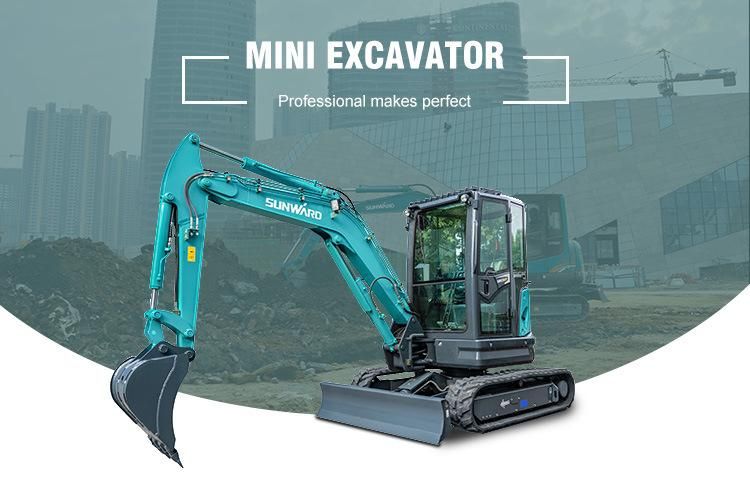

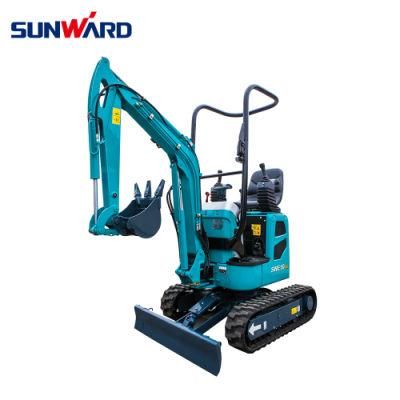

SUNWARD SWE18UF excavator mini hydraulic pump With Lowest Price

mini excavator hydraulic pump
