• Model NO.：FL936H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Load Capacity：3 Ton
• Bucket：2cbm
• Engine：Wp6g125e22
• Cabin：Mechanical Suspension Seat
• Rated Power：92kw,2200rpm
• Weight：11260kg
• Bucket Option：1.5~3.5 M3
• Transport Package：Bulk Package
• Specification：40HQ
• Trademark：LOVOL
• Origin：China
• HS Code：8429510000
• Production Capacity：100unit,Month

Basic Info.

Model NO. FL936H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Load Capacity 3 Ton Bucket 2cbm Engine Wp6g125e22 Cabin Mechanical Suspension Seat Rated Power 92kw/2200rpm Weight 11260kg Bucket Option 1.5~3.5 M3 Transport Package Bulk Package Specification 40HQ Trademark LOVOL Origin China HS Code 8429510000 Production Capacity 100unit/Month

Product Description

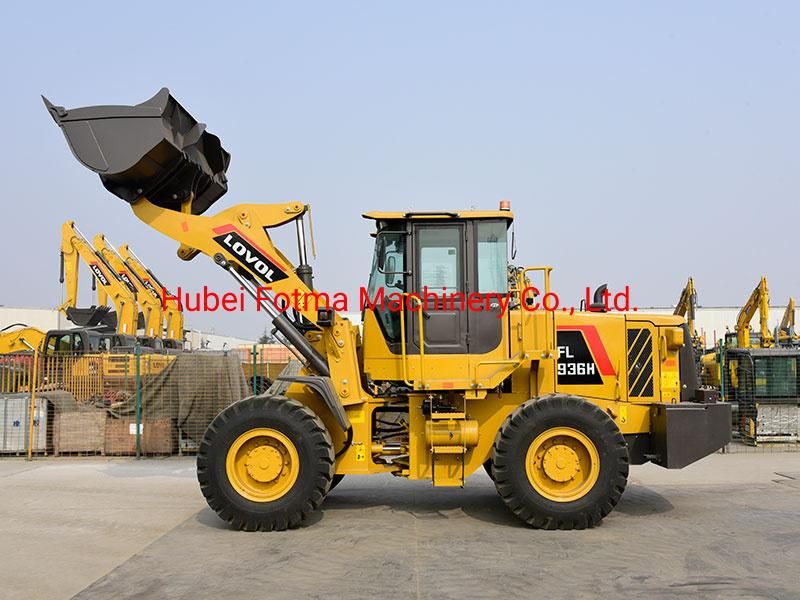

Lovol FL936h Wheel Loader 3ton Lovol Wheel Loader 2M3 Bucket

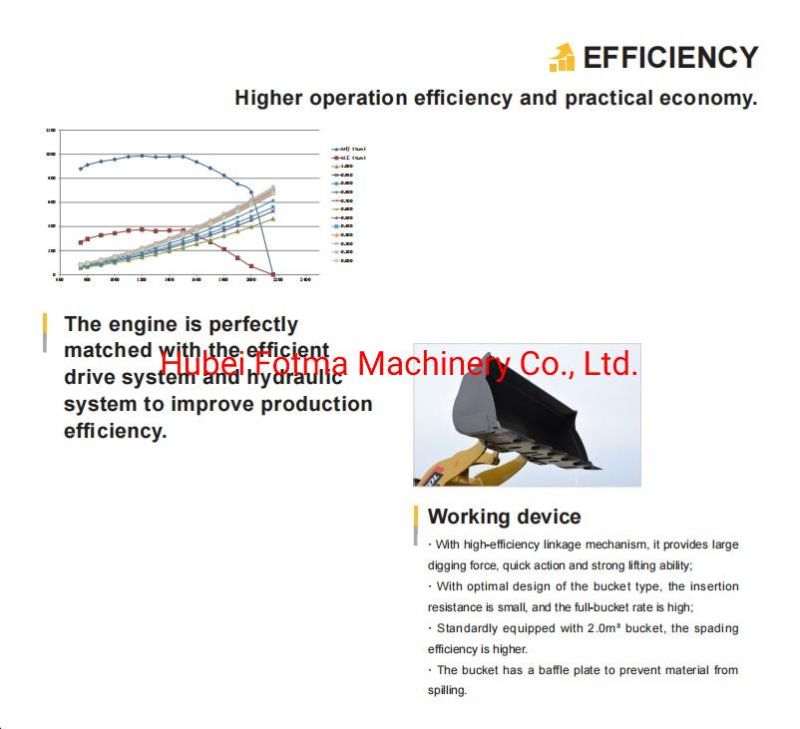

Productivity
The proven linkage structure is very efficient which has big breakout force, quick movement and high lifting capacity features.

Optimal designed bucket which can cut into materials easily with small resistance, and could retain more materials.

The bucket has guide plate which can avoid the materials sprinkling to protect bucket cylinder during lifting.

High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.

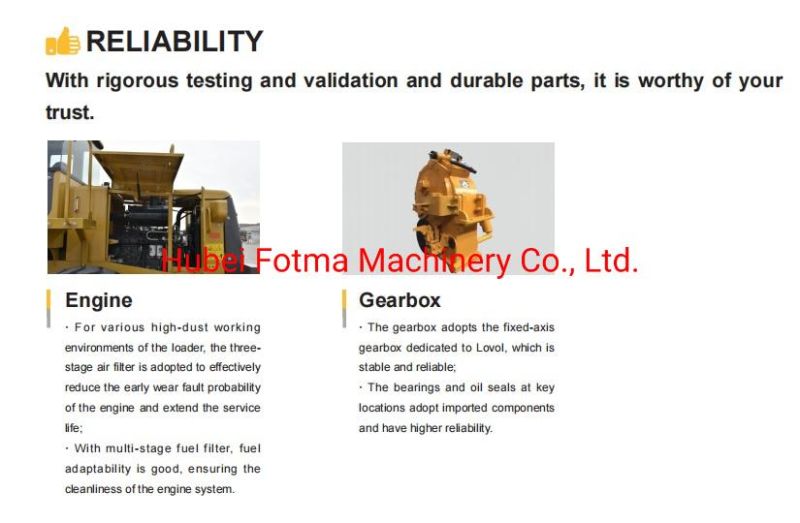

Reliability
Optimal designed bucket which can cut into materials easily with small resistance, and could retain more materials.

The bucket has guide plate which can avoid the materials sprinkling to protect bucket cylinder during lifting.

High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.

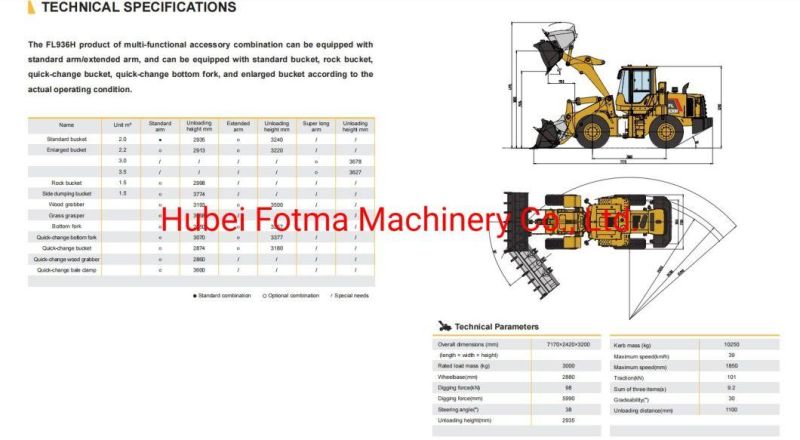

Products Parameter

Item	Unit	Parameter
Model		FL936H
Rated Power	kW	92
Operating Weight	kg	10300
Bucket Capacity	m³	2
Engine Model	-	WEICHAI WP6G125E22
Max. Breakout Force	kN	98
Rated Load	kd	3000
Max. Traction Force	KN	101
Max. Gradeability	°	30
Max. Dump Clearance	mm	2930
Dump Reach	mm	1100
Wheel Tread	mm	1850
Wheelbase	mm	2880
Overall Dimension(L×W×H)	mm	7230*2425*3200
Type	-	Single pump flow diffluence, load - sensing hydraulic system
Steering Angle Each Direction	-	38º
Min. Turning Radius	mm	6020
Working Pressure	Mpa	16
Boom Lifting Time	s	5.6
Total Cycle Time	s	9.2
Fuel Tank	L	150
Hydraulic Tank	L	105
Engine Oil	L	14.5L
