• Model NO.：3000t,h
• Load and Unload Mode：Ship Loader Cantilever Loader
• Walking Mode：Wheeled
• Type：Large-Scale Bulk Materials Ship Loader
• Transport Package：Wooden Case
• Specification：As per drawing
• Trademark：VILLE
• Origin：China
• HS Code：85
• Production Capacity：50pieces,Year

Basic Info.

Model NO. 3000t/h Load and Unload Mode Ship Loader Cantilever Loader Walking Mode Wheeled Type Large-Scale Bulk Materials Ship Loader Transport Package Wooden Case Specification As per drawing Trademark VILLE Origin China HS Code 85 Production Capacity 50pieces/Year

Product Description

The Shiploader telescopic loading spout allows high-capacity ship loading.

Loading spout can load cargo into large cargo holds in sea and river ships evenly and in a relatively short time.
The loading spout for ship loading increases cargo capacity, saving money for the port and ship operators.

Ship loading spouts are designed for the most demanding operations at sea terminals. Therefore the robust construction and high reliability is necessary.

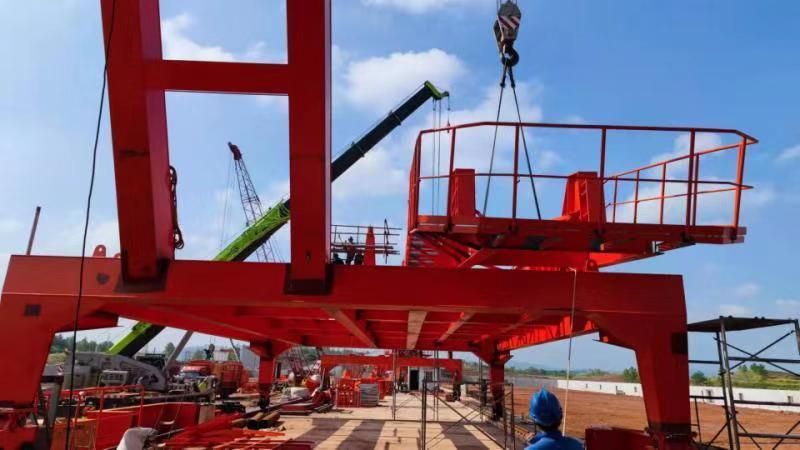

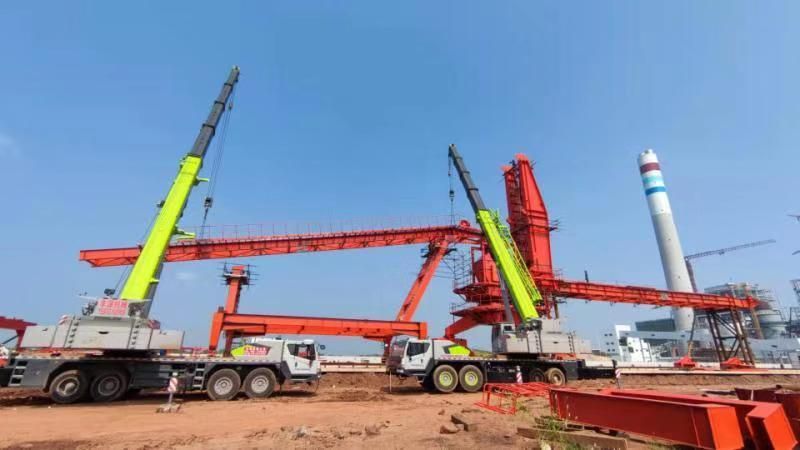

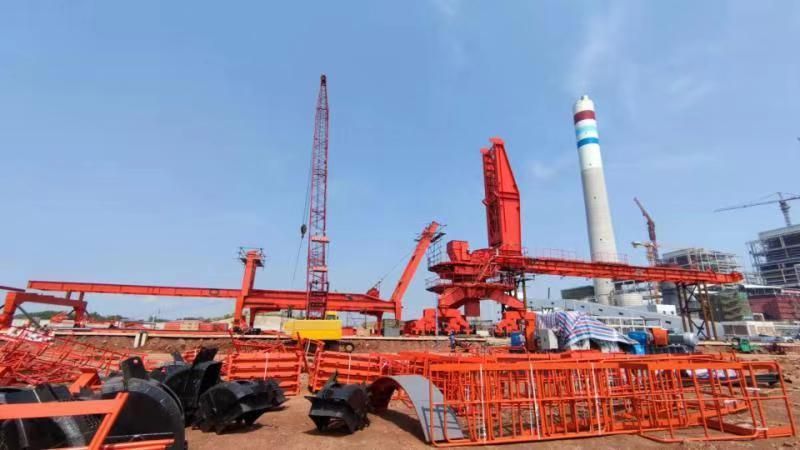

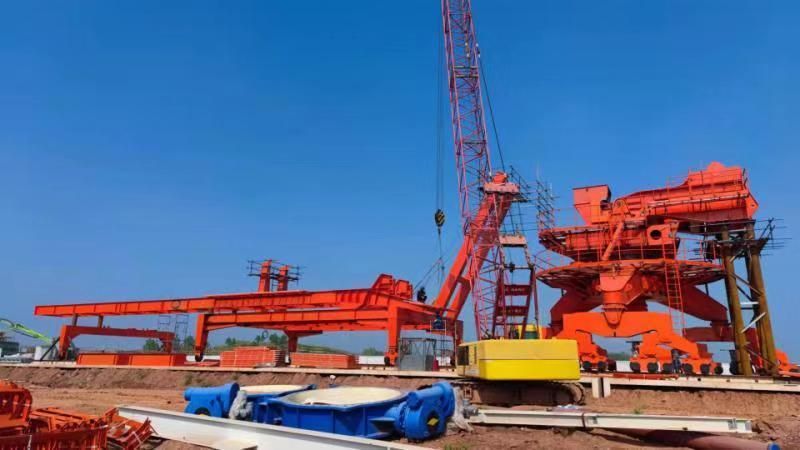

The movable-type ship loader is a kind of large-scale bulk materials machinery which is used for loading the bulk materials in the wharf. The ordinary ship loader is composed of cantilever crane, cantilever crane belt conveyor, flexible chute tube, tripper car, traveling device, gantry, tower, pitching device, etc.

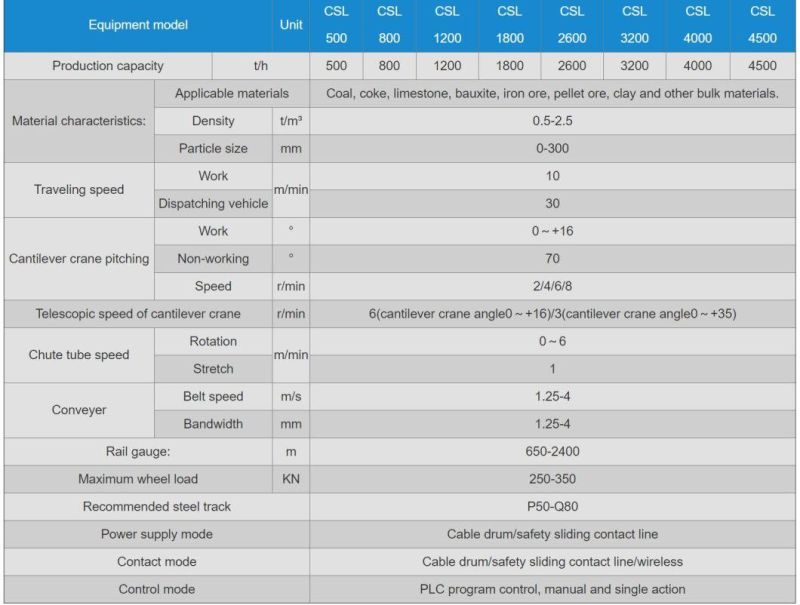

MAIN TECHNICAL FEATURES

• max. flow rate: 4000 m3/h (based on the model)
• level switch: rotary / tilt
• operating conditions: -20/+80°C (other per request)
• loading conduit: tubes/single bellows, tubes

ACCESSORIES

• electric control box (plastic or stainless steel)
• pivot gimbals (movable in one or two axis)
• protection cages
• load cells to control the spout would not be overloaded
• ATEX design

We offer two types of shiploaders:

• 1. with distribution trimmer shovel
  angle of rotation up to 350°
  available also with tilting mechanism
• 2. with dustproof bell and rubber skirt

Performance Features:

1. The complete machine can be operated along with the wharf with favorable maneuverability, flexible operation mode and strong adaptability of ship type.

2. Considering that the cantilever crane can only make pitching and extension-retraction movement to cooperate with the traveling cart via its extension and retraction for the sake of changing the charging position of chute tube, it can save the slewing drive and bearing, as a result, the complete machine becomes more simple and portable.

3. The machine is inclined to apply herringbone structure, adopt the tubular profiles to serve as the main stress components, and reject the plate-girder welding structure, therefore, the plate shearing, welding and other procedures are reduced in the manufacturing process to reduce the manufacturing and processing difficulty and shorten the manufacturing period.

4. It applies the flexible chute tube to reduce the dust pollution during the ship loading.

5. The complete machine is intensively controlled by PLC, of which the main mechanisms apply the frequency control mode to make the mechanism realize stable operation without impact.
