China Liugong 5 Ton Clg856 Wheel Loader 856h 5 Ton Mini Wheel Front End Payloader with 3.0m3 Bucket for Sale
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic - Mechanical
Base Info
- Model NO.：CLG856H
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Operating Weight：17000-17800 Kg
- Standard Bucket：3.0 M3
- Gross Power：162 Kw (220 HP) @ 2200 Rpm
- Net Power：162 Kw (220 HP) @ 2000 Rpm
- Total Cycle Time：10 S
- Bucket Breakout Force：172 Kn
- Model：Cummin S 6lt9.3
- Emissions：EPA Tier 2 , EU Stage II
- Length with Bucket Down：8357 mm
- Width Over Tires：2750 mm
- Tipping Load-Full Turn：10800 Kg
- Dump Reach, Full Height Discharge：1126 mm
- Dump Clearance, Full Height Discharge：3100mm
- Turning Radius, Outside of Tire：6205 mm
- Transport Package：Nude Package
- Specification：5 ton wheel loader
- Trademark：Liugong
- Origin：China
- Production Capacity：500,Month
Description
Basic Info.
Model NO. CLG856H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Operating Weight 17000-17800 Kg Standard Bucket 3.0 M3 Gross Power 162 Kw (220 HP) @ 2200 Rpm Net Power 162 Kw (220 HP) @ 2000 Rpm Total Cycle Time 10 S Bucket Breakout Force 172 Kn Model Cummin S 6lt9.3 Emissions EPA Tier 2 / EU Stage II Length with Bucket Down 8357 mm Width Over Tires 2750 mm Tipping Load-Full Turn 10800 Kg Dump Reach, Full Height Discharge 1126 mm Dump Clearance, Full Height Discharge 3100mm Turning Radius, Outside of Tire 6205 mm Transport Package Nude Package Specification 5 ton wheel loader Trademark Liugong Origin China Production Capacity 500/MonthProduct Description

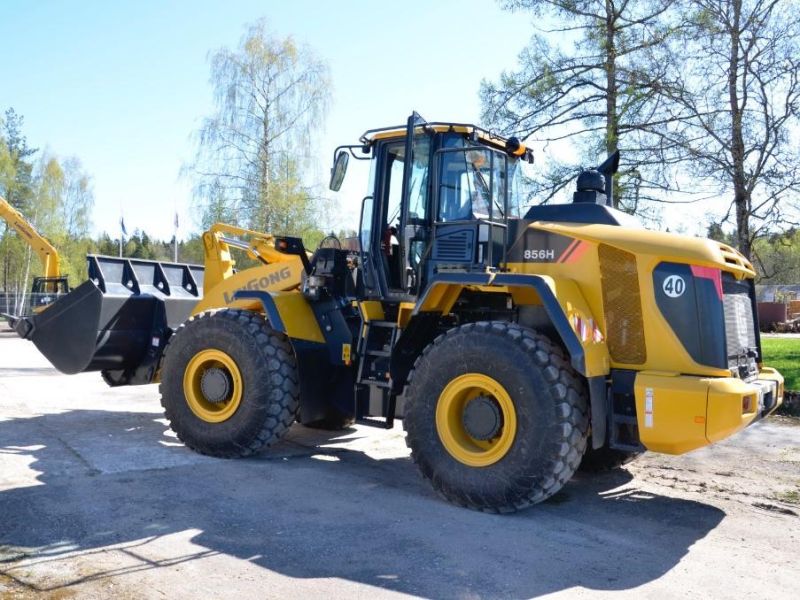

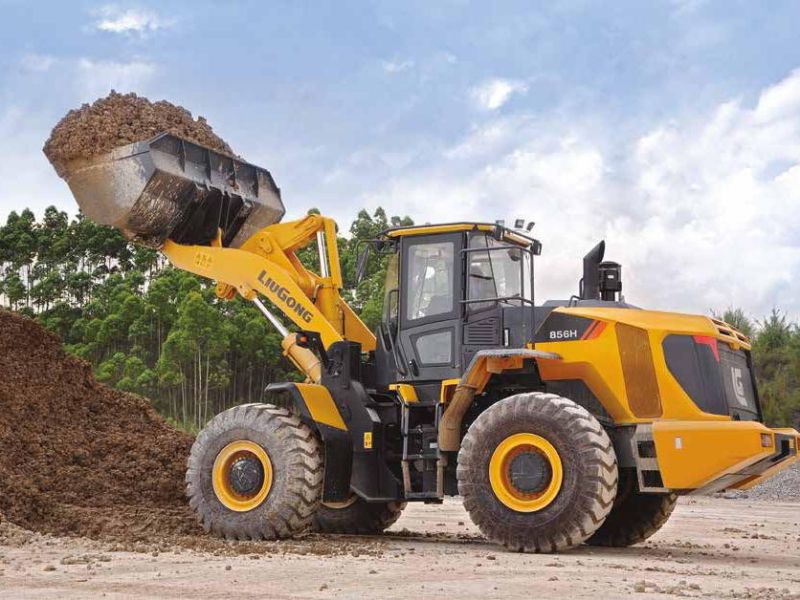

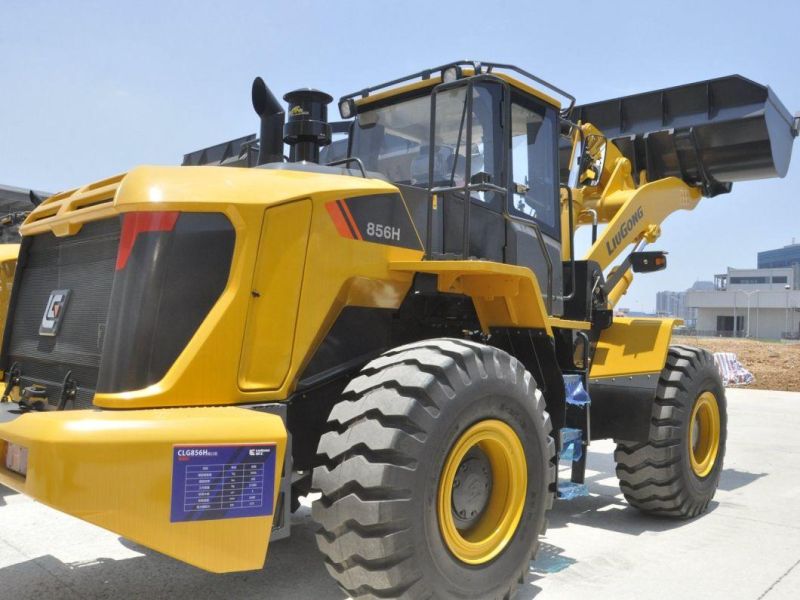

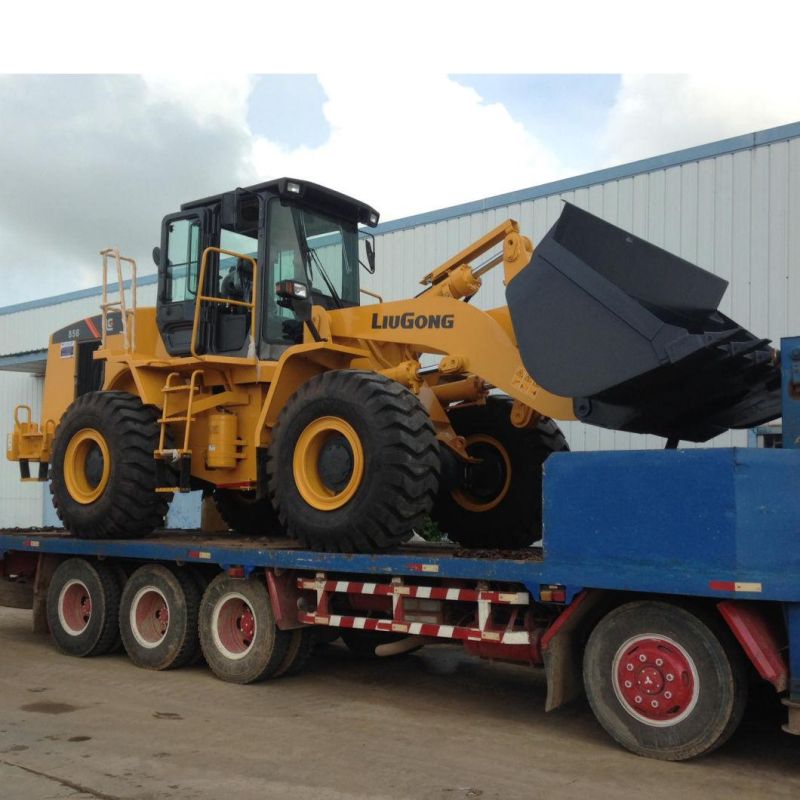

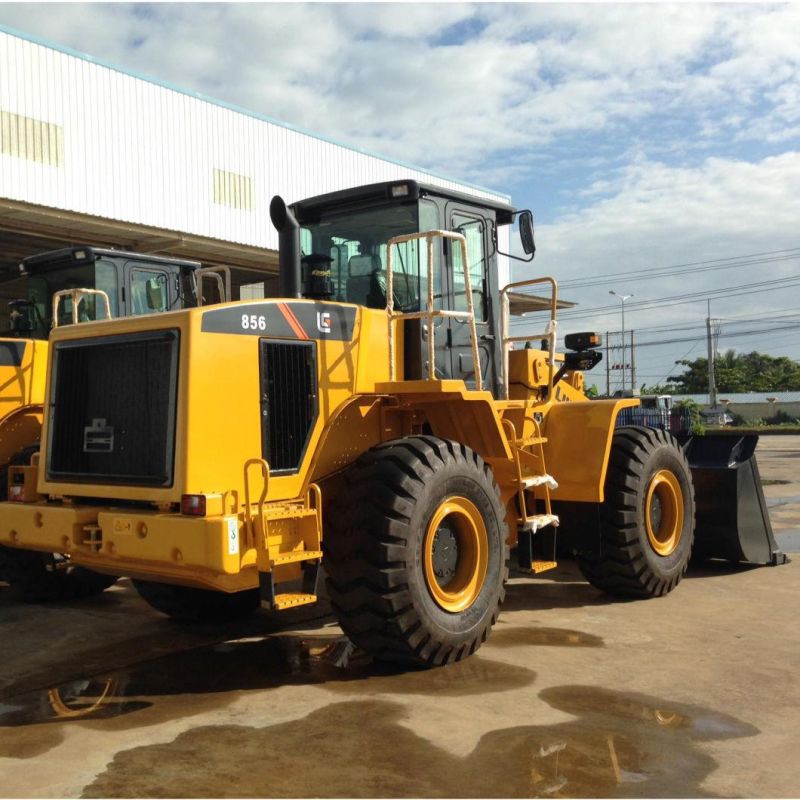

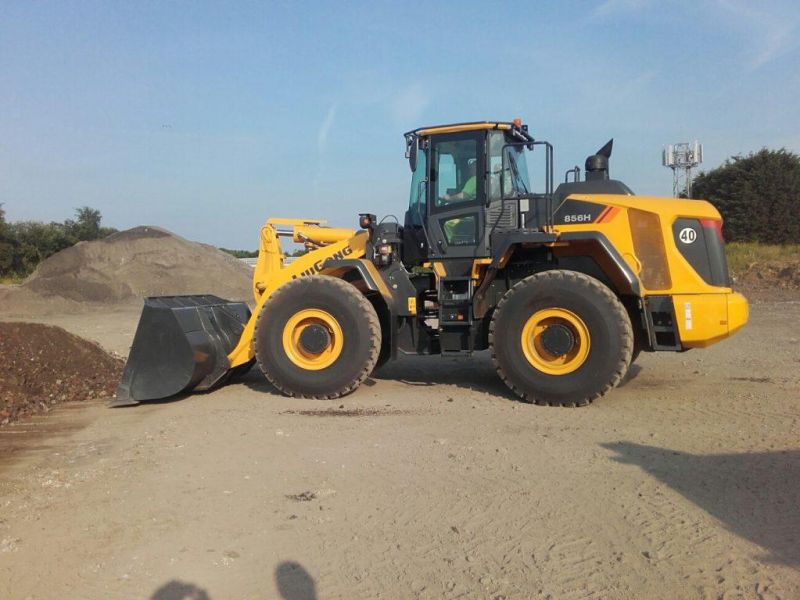

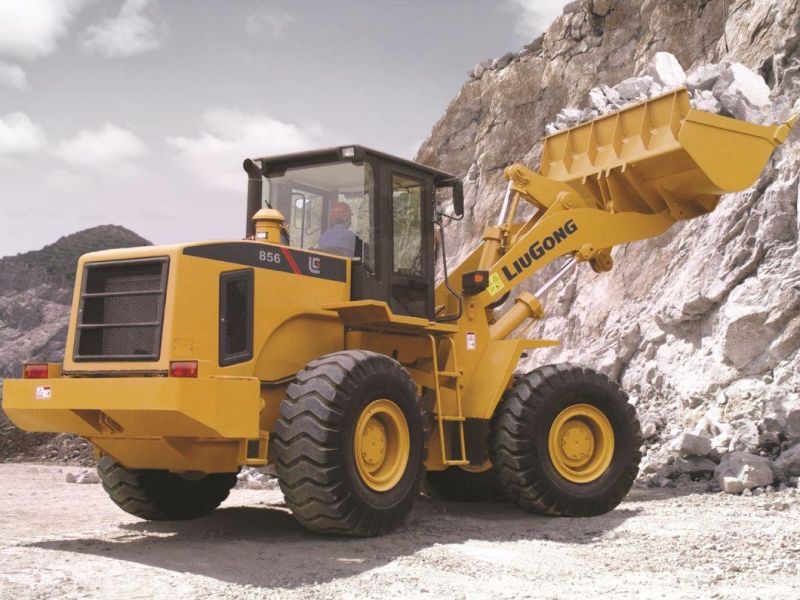

Loaders CLG856H 856H 5 ton Wheel Front End Loader
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions. Fully-sealing and micro-pressuring system ensures the cab is clean and quiet.
- Single layer radiator and big range fin spacing for high efficiency and easy maintenance.
- Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.
856H---Satge II:
| Operating weight | 17000-19300 kg |
| Standard bucket | 3.0 m3 |
| Gross power | 162 kW (220 hp) @ 2000 rpm |
| Net power | 148 kW (201 hp) @ 2200 rpm |
| Rated load | 5000 kg |
| Total cycle time | 10 s |
| Tipping load-full turn | 10800 kg |
| Bucket breakout force | 172 kN |
| Dump clearance, full height discharge | 3100 mm |
| Dump reach, full height discharge | 1126 mm |
| Model | 6LT9.3 |
| Emissions | EPA Tier 2 / EU Stage II |
| Cooling system | Charge air cooling |
| Length with bucket down | 8357 mm |
| Width over tires | 2750 mm |
| Cab height | 3450 mm |
| Turning radius, outside of tire | 6205 mm |
| Bucket capacity | 2.6-5.6 m3 |
| General Purpose | 3.0 m3 |
| Light material | 4.2, 5.2, 5.6 m3 |
| Heavy-rock | 2.7 m3 |
| Operating weight | 17000-19300 kg |
| Standard bucket | 3.0 m3 |
| Gross power | 162 kW (220 hp) @ 2000 rpm |
| Net power | 148 kW (201 hp) @ 2200 rpm |
| Rated load | 5000 kg |
| Total cycle time | 10 s |
| Tipping load-full turn | 10800 kg |
| Bucket breakout force | 172 kN |
| Dump clearance, full height discharge | 3100 mm |
| Dump reach, full height discharge | 1126 mm |
| Model | 6LT9.3 |
| Emissions | EPA Tier 2 / EU Stage II |
| Cooling system | Charge air cooling |
| Length with bucket down | 8357 mm |
| Width over tires | 2750 mm |
| Cab height | 3450 mm |
| Turning radius, outside of tire | 6205 mm |
| Bucket capacity | 2.6-5.6 m3 |
| General Purpose | 3.0 m3 |
| Light material | 4.2, 5.2, 5.6 m3 |
| Heavy-rock | 2.7 m3 |
856H---Satge IIIA:
| Operating weight | 17000-18425 kg |
| Standard bucket | 3.0 m³ |
| Gross power | 162 kW (220 hp) @ 2000 rpm |
| Net power | 154 kW (209 hp) @ 2000 rpm |
| Rated load | 5000 kg |
| Total cycle time | 10.2 s |
| Tipping load-full turn | 10800 kg |
| Bucket breakout force | 179 kN |
| Dump clearance, full height discharge | 3100 mm |
| Dump reach, full height discharge | 1126 mm |
| Model | Cumminz QSL9.3 |
| Emissions | EPA Tier 3 / EU Stage IIIA |
| Cooling system | Charge air cooling |
| Length with bucket down | 8357 mm |
| Width over tires | 2750 mm |
| Cab height | 3450 mm |
| Turning radius, outside of tire | 6205 mm |
| Bucket capacity | 2.6-5.6 m³ |
| General Purpose | 3.0 m³ |
| Light material | 4.2, 5.2, 5.6 m³ |
| Heavy-rock | 2.7 m³ |
856H---Satge IV / Tire 4F:
| Operating weight | 11811-19200 kg |
| Standard bucket | 3.2 m³ |
| Maximum gross power | 168 kW (228 hp) @ 2000 rpm |
| Maximum net power | 160 kW (218 hp) @ 2000 rpm |
| Rated load | 5000 kg |
| Total cycle time | 10.3 s |
| Tipping load-full turn | 11500 kg |
| Bucket breakout force | 175 kN |
| Dump clearance, full height discharge | 2955 mm |
| Dump reach, full height discharge | 1129 mm |
| Model | Cumminz QSB6.7 |
| Emissions | EPA Tier 4F / EU Stage IV |
| Cooling system | Charge air cooling |
| Length with bucket down | 8318 mm |
| Width over tires | 2750 mm |
| Cab height | 3450 mm |
| Turning radius, outside of tire | 6205 mm |
| Bucket capacity | 2.6-5.6 m³ |
| General Purpose | 3.0 m³ |
| Light material | 4.2, 5.2, 5.6 m³ |
| Heavy-rock | 2.7 m³ |
