| Travel System | | Model | Yanmar 3TNV70 | Travel motors | Eaton, USA |
| Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×3 |
| Carrier roller quantities | 2×1 |
| No. of cylinder | 3 | Travel shoes | No |
| Bore and stroke | 70x74(mm) | Travel speed | 2.7/5.0(km/h) |
| Displacement | 0.854L | Drawbar pulling force | 11.7kN |
| Power output | 10kw/2200rpm | Gradeability | 58%(300) |
| Max. torque | 50N.m/2000rpm | Ground clearance | 160mm |
| Hydraulic System | Cab & Electrical System |

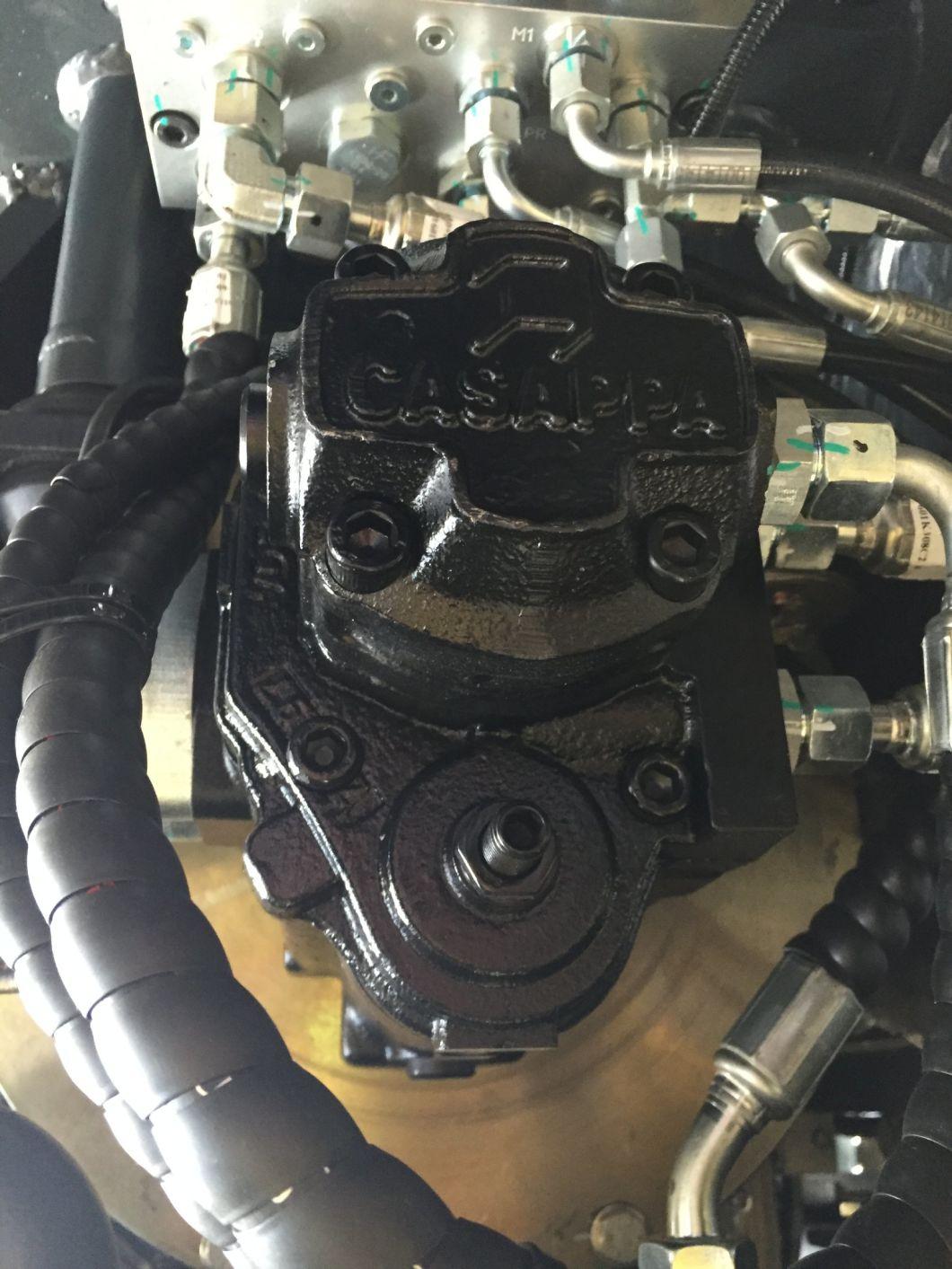

| Pump | CASAPPA, Italy | Cab | All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat |
| Type | Axial-piston pump+gear pump |
| Max. discharge flow | 2x20+15.1(L/min) |
| Max. discharge pressure |
| Boom, arm and bucket | 17 MPa | Voltage | 12V |
| Travel circuit | 12 MPa | Batteries | 1X12V |
| Swing circuit | 9 MPa | Battery capacity | 60Ah |
| Control circuit | 3 MPa | Boom, Arm & Bucket |
| Pilot control pump | Gear type | Boom cylinder | Φ60xΦ35xS440-L770 |
| Main control valves | Hydro Control, Italy | Arm cylinder | Φ60xΦ35xS330-L600 |
| Oil cooler | Air cooled type | Bucket cylinder | Φ55xΦ30xS300-L560 |
| Swing System | Refilling Capacity & lubrication |

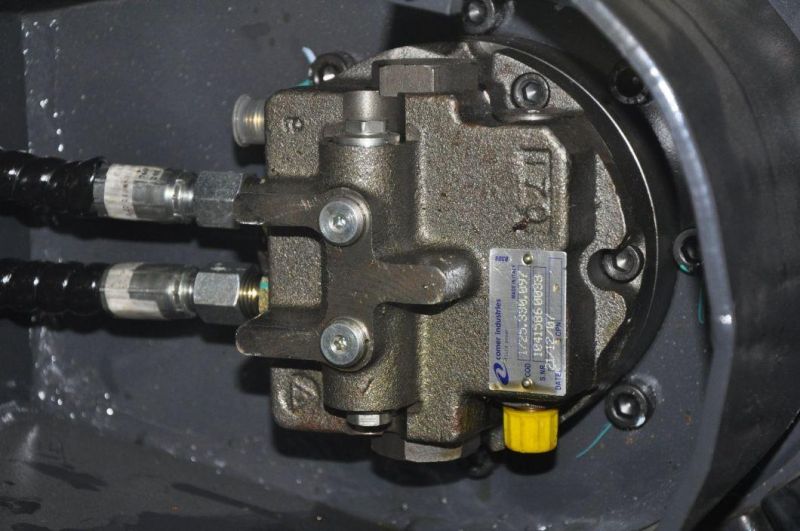

| Swing motor | Eaton, USA | Fuel tank | 28L |
| Swing motor type | Axial-piston motor | Cooling system | 8L |
| Brake | No | Engine oil | 4.4L |
| Parking brake | No | Hydraulic oil tank | 17.5L Tank Oil Level |
| Swing speed | 8.8 r/min | 24L Hydraulic System |
| Bucket |
| Type | Backhoe bucket | |
| Bucket capacity | 0.04m3 (SAE) | Bucket Capacity scope | 0.028-0.095m3 |
| Number of bucket teeth | 3 or 4 | Bucket width | 450 mm |
| Working ranges | |
| Boom length | 1829m | Arm length | 950mm |
| A | Max. digging height | 3281mm | B | Max. dumping height | 2393mm |
| C | Max. digging depth | 2033mm | D | Max. vertical digging depth | 1605mm |
| E | Max. digging distance | 3941mm | F | Max. digging radius at ground level | 3878mm |
| G | Min swing radius of work equipment | 1625mm | | | |
| A | Bucket digging force | 11.2 KN | B | Arm digging force | 9.1 KN |
| Overall Dimensions |
| A | Overall length | 3694mm | I | Track grounding length | 1210mm |
| B | Ground contact length(Transportation) | 2366mm | J | Track length | 1588mm |
| C | Overall height(to top of boom) | 1157mm | K | Track gauge(extension 1090mm) | 760mm |
| D | Overall width | 1000mm | L | Track width(extension 1320mm) | 990mm |
| E | Overall height(to top of cab) | 2411mm | M | Track Shoe width | 230mm |
| F | Counter weight ground clearance | 207mm | O | Bonnet height | 1222mm |
| G | Min. Ground clearance | 160mm | P | Revolving frame width | 1000mm |
| H | Tail swing radius | 660mm | Q | Distance from swing center to tail | 665mm |
| Operating Weight and Ground Pressure |
| Operating weight | 1700kg(with canopy) | Ground pressure | 28 KP |
