Heavy Loading Mechanical Upenders & Coil Tippers for Sale
Shandong Dyehome Intelligent Equipment Co., Ltd- After-sales Service：Yes
- Warranty：One Year
- Type：Bearing
- Application：Tunnel Boring Machine
- Certification：CE, ISO9001: 2000
- Condition：New
Base Info
- Model NO.：DH-FZ-10
- Trademark：Dyehome
- Origin：China
Description
Technical Feactures

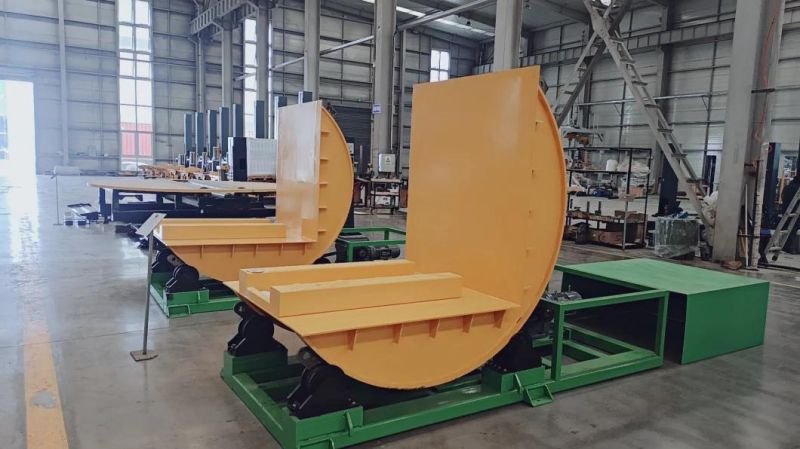

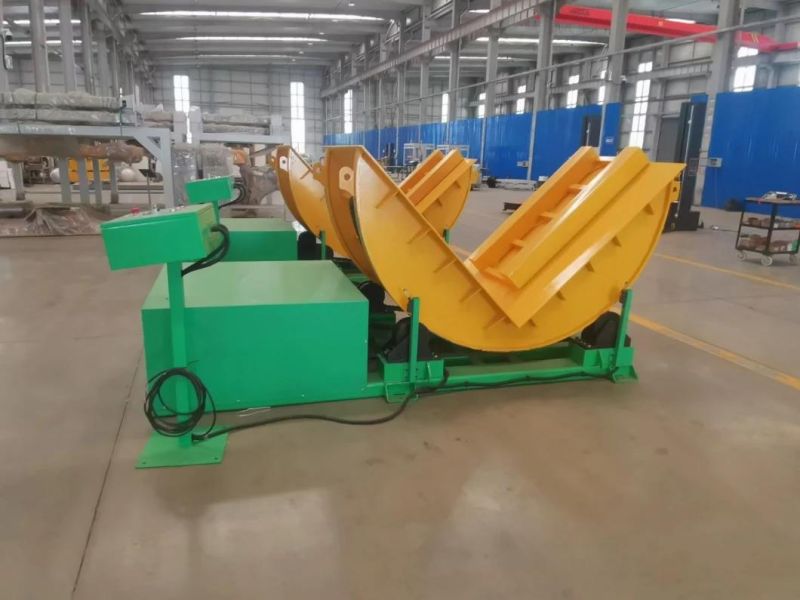

For turning over the coil for 90 degree. It's widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc.1. Special double chain drive, oblique gear & worm speed reducer is adopted.
2. Four-roller device wrapped with polyamide adhesive.
3. Inverter control is adopted, fast, stable & safe.
4. Separate control panel allows remote operation.
5. Multiple position limit system ensures safe operation.
6. The machine can be stopped at random; object will stay in current position.
Technical parameters
| Name | FZ-03 | FZ-06 | FZ-08 | FZ-10 | FZ-15 | FZ-15-180 |
| Capacity | 3T | 6T | 8T | 10T | 15T | 15T |
| Speed | 40sec | 40sec | 40sec | 50sec | 60sec | 90sec |
| Driving mode | Two chains | Two chains | Two chains | Four Chains | Four Chains | Mechanical |
| Power | 1.5KW | 1.5KW | 2.2kW | 2.2kW | 4.2KW | 5.5KW |
| Control Mode | Panel/Remote | Panel/Remote | Panel/Remote | Panel/Remote | Panel/Remote | Panel/Remote |
