• Model NO.：GR1653
• Product Name：Gr1653 170HP Small Motor Grader for Road Trenching
• Dimension：9242X2601X3430mm
• Tire：17.5-25 RP12
• Operating Weight：15000kg
• Max. Cutting Depth：500mm
• Transport Package：Nude
• Specification：7500kg
• Trademark：CCC ISO9001
• Origin：China
• HS Code：84295100
• Production Capacity：100units,Year

GR1653Specification
 Engine model
 Shangchai D6114ZGBRated power/speed
 125KW(170hp)/2200rpmDimension(L*W*H)Standard mm9242*2601*3430Operating weightStandard kg15000Module Weight on front wheelskg4500Module Weight on rear wheelskg10500Tire size
 17.5-25 RP12Min.ground clearancemm430Distance between front and rear axlesmm6266Distance between middle and rear axlesmm1639Operating specification

 Max.steering angle of front wheels
 ±45°Max.lean angle of front wheels
 ±17°Max.oscillation angle of front axle
 ±15°Frame articulation angle
 ±25°Min.turning radius using articulation  m7.8BladeMaximum lift above ground      mm460Maximum depth of cutting        mm500Maximun blade posting angle90°Blade cutting angle28°~70°Circle reversing rotation360°Performance specification

 Travelling speed,forwardkm/h5. 8. 11. 19. 23. 38Travelling speed,reversekm/h5. 11.   23Max.tractive forceKN77Max.gradeability
 20°Certificate

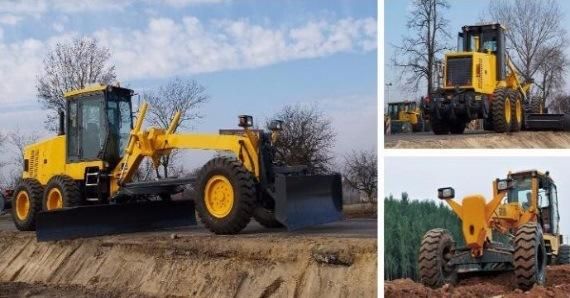

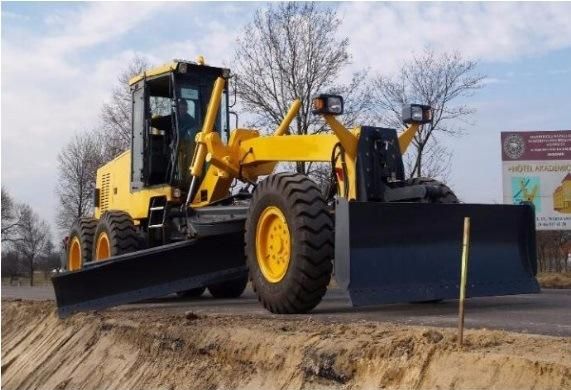

III.DETAILS
