• Model NO.：HY-400
• Feeding Height：1800mm
• Vibrating Amplitude：2.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Orange
• Engine：Yunnei Yn48gbz
• Hydraulic Swing Motor：Eton
• Reducer：Eton
• Optional Engine：Yuchai Ycd4p22t-130
• Optional：4BTA3.9-C125
• Transport Package：Nude Package
• Specification：7500*2700*3380mm
• Trademark：HONGYUAN
• Origin：Qingzhou, China
• HS Code：87054000
• Production Capacity：30 Unit Per Month

Basic Info.

Model NO. HY-400 Feeding Height 1800mm Vibrating Amplitude 2.0mm Certification ISO9001: 2000, CE Condition New Color Orange Engine Yunnei Yn48gbz Hydraulic Swing Motor Eton Reducer Eton Optional Engine Yuchai Ycd4p22t-130 Optional 4BTA3.9-C125 Transport Package Nude Package Specification 7500*2700*3380mm Trademark HONGYUAN Origin Qingzhou, China HS Code 87054000 Production Capacity 30 Unit Per Month

Product Description

Product Description

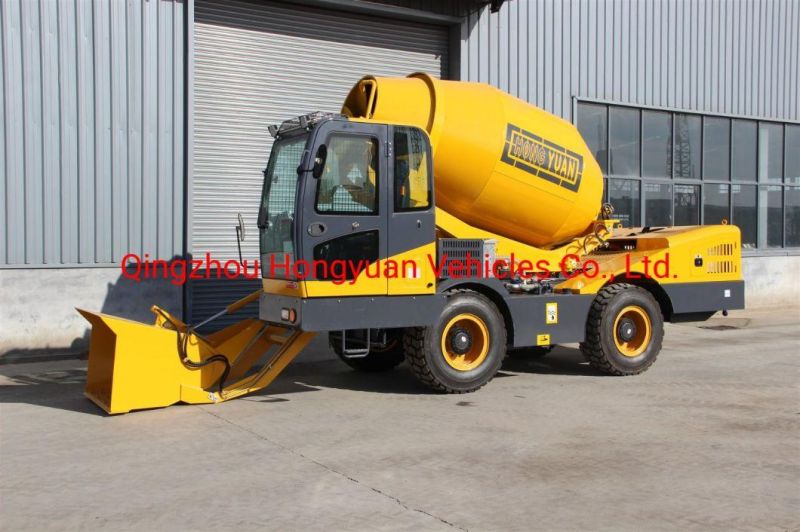

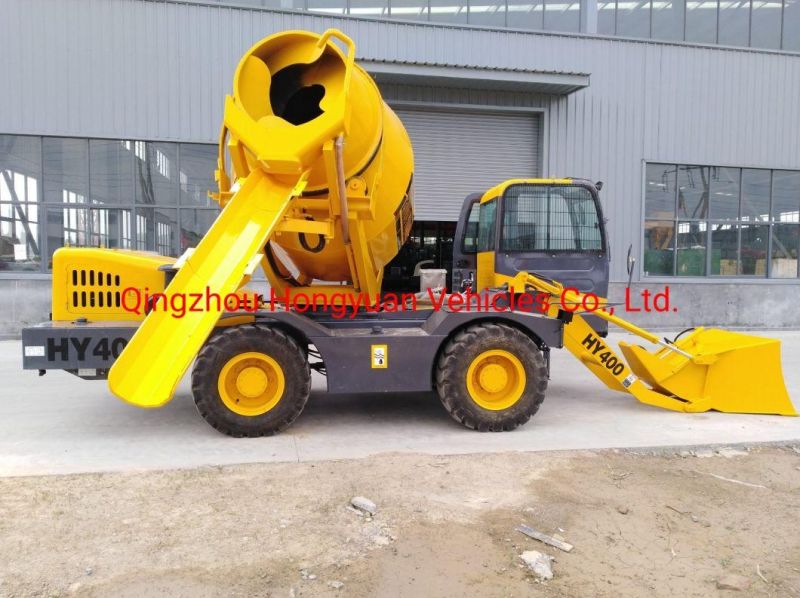

 Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

Main Features

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

Specifications

Mixing drum	capacity : 4.0M3,  14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree.
engine paramters	YUNNEI YN48GBZ, rated power/turns: 92kw (125HP)/ 2400rpm.
drive system	hydraulic component( variable stroke pump) : Eton two grades gear transmission : road/off road, 4wheel drive
speed	low gear speed: 0-9.5km/h, high gear speed : 0-28km/h

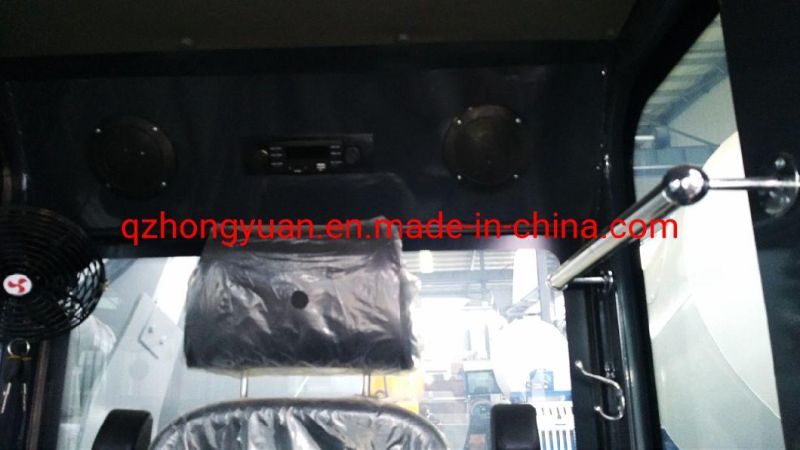

cabin	front cabin with rops &fops design
Hydraulic sytem	2 variable stroke pumps provide power separately to car drive and mixer. 2 constant rate pumps provide power to drum slewing , brake, water. cooling: water/air
joystick	all working operation designed in one joystick
bucket	capacity: 0.6m3 hydraulic controlled door
chute	adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement
water sytem	water pump with high pressure washing gun
climbing angle	30degree with full load
brake	wet brake, parking brake with gear box
tires	off-road engineering tire 16/70-20 PR16

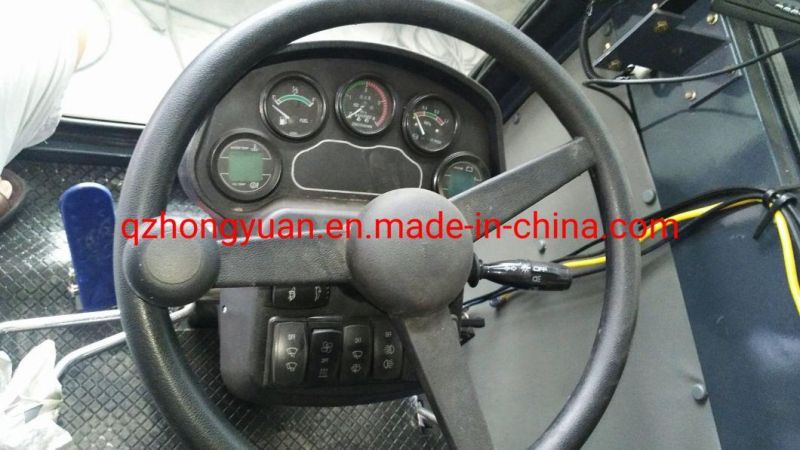

steering	Back axle steering, all hydraulic inner steering radius: 1988mm/4130mm outer steering radius:3767 mm/6030mm
electric system	battery :2X12V    120Ah, provide lighting and ignition
fuel tank	110L
hydraulic oil tank	80L
carframe	all steel welding
weight	off load:8t, full load :18t

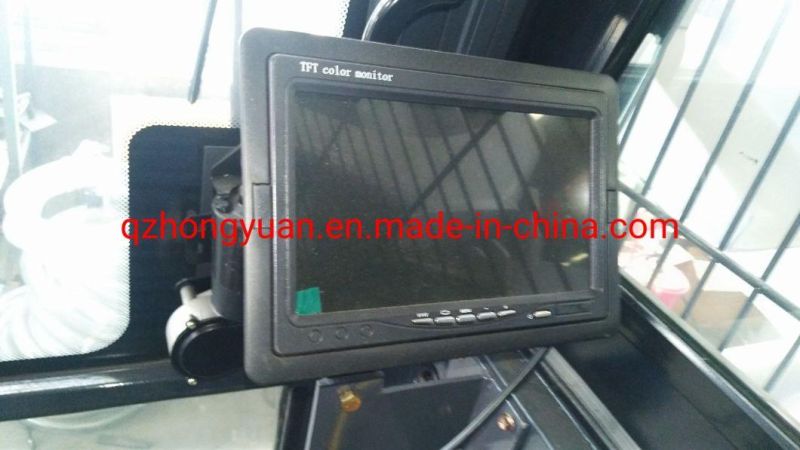

weighing system	equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.
Dimensions(LxWxH)	7500*2700*3380mm

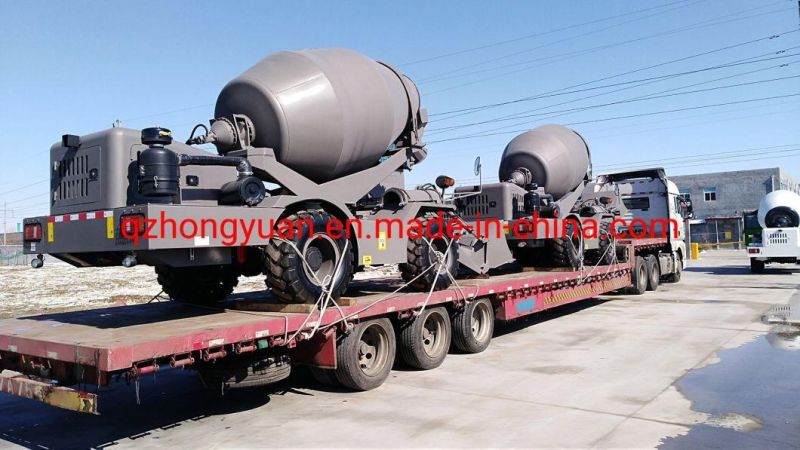

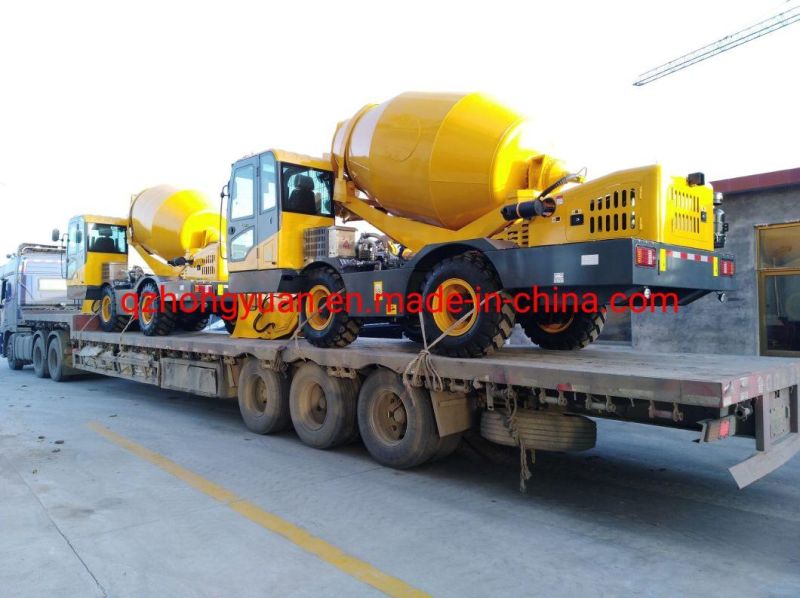

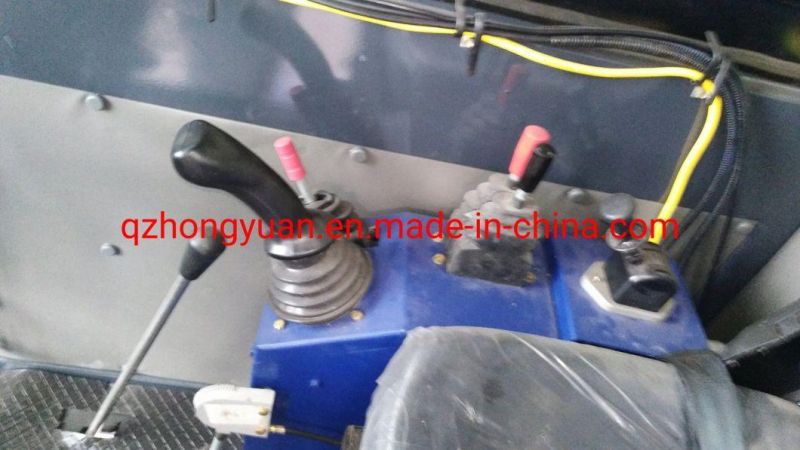

The detailed pictures

FAQ

Q:All Of Hongyuan Wheel Loader Has CE Certification?

A:Yes.They all Have CE Certications.



Q:What Products Dose Hongyuan Machinery Company Has?

A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.



Q:Dose the Hongyuan Machinery Has Their Own Factory?

A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.



Q:Dose the Hongyuan Machinery Has Good Service?

A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.


Our Services

    We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.

    The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.

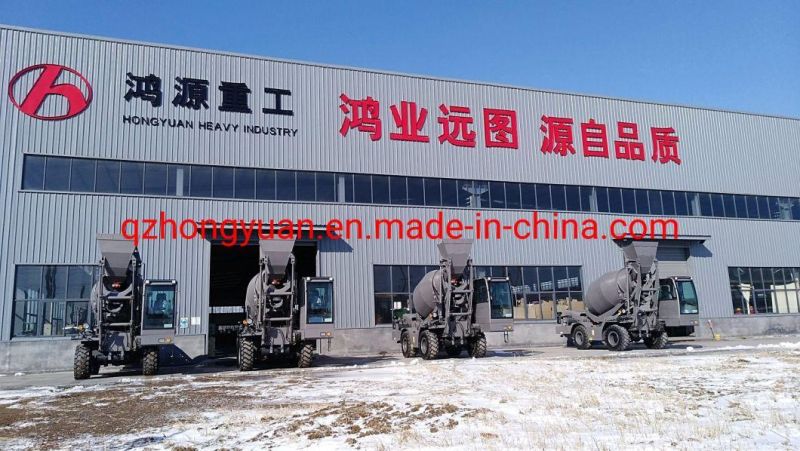

Company Profiles
