• Model NO.：YN926
• Type：Small Loader
• Dumping Height：2750 mm
• Dumping Reach：920 mm
• Max. Breakout Force：55 Kn
• Max. Drawing Force：45 Kn
• Rated Power：60 Kw,2400 Rpm
• Tyre：16,70-20
• Operating Weight：6000 Kg
• Usage：Special Type
• Scraper Type：Pull Scraper
• Engine Power：60kw
• Transport Package：Naked
• Specification：5880*2060*2750 Mm
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China
• HS Code：8429510000
• Production Capacity：50PCS,Week

Basic Info.

Model NO. YN926 Type Small Loader Dumping Height 2750 mm Dumping Reach 920 mm Max. Breakout Force 55 Kn Max. Drawing Force 45 Kn Rated Power 60 Kw/2400 Rpm Tyre 16/70-20 Operating Weight 6000 Kg Usage Special Type Scraper Type Pull Scraper Engine Power 60kw Transport Package Naked Specification 5880*2060*2750 Mm Trademark YINENG Origin Taian City, Shandong Province, China HS Code 8429510000 Production Capacity 50PCS/Week

Product Description

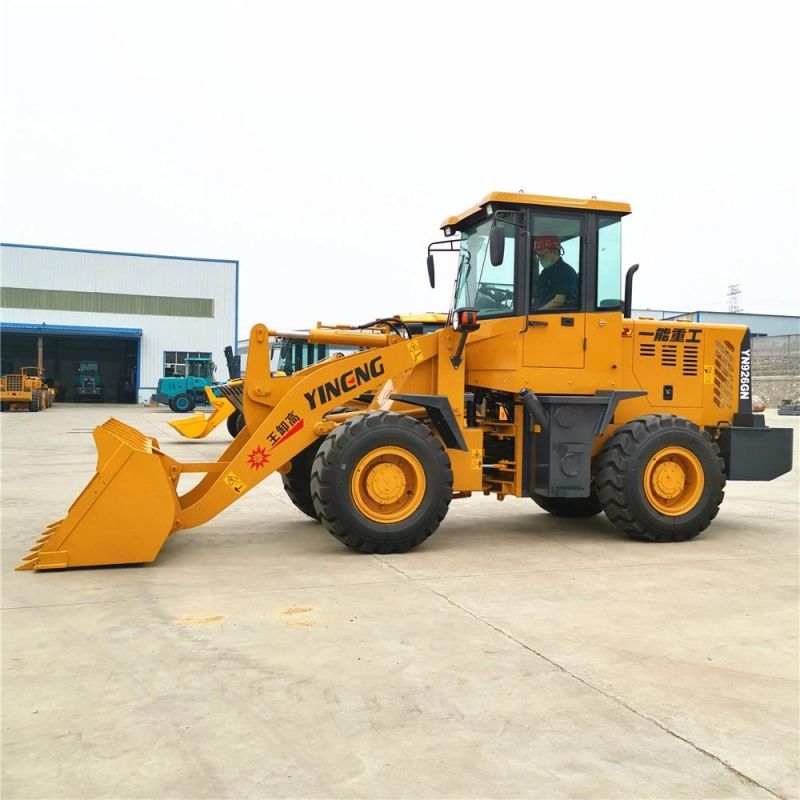

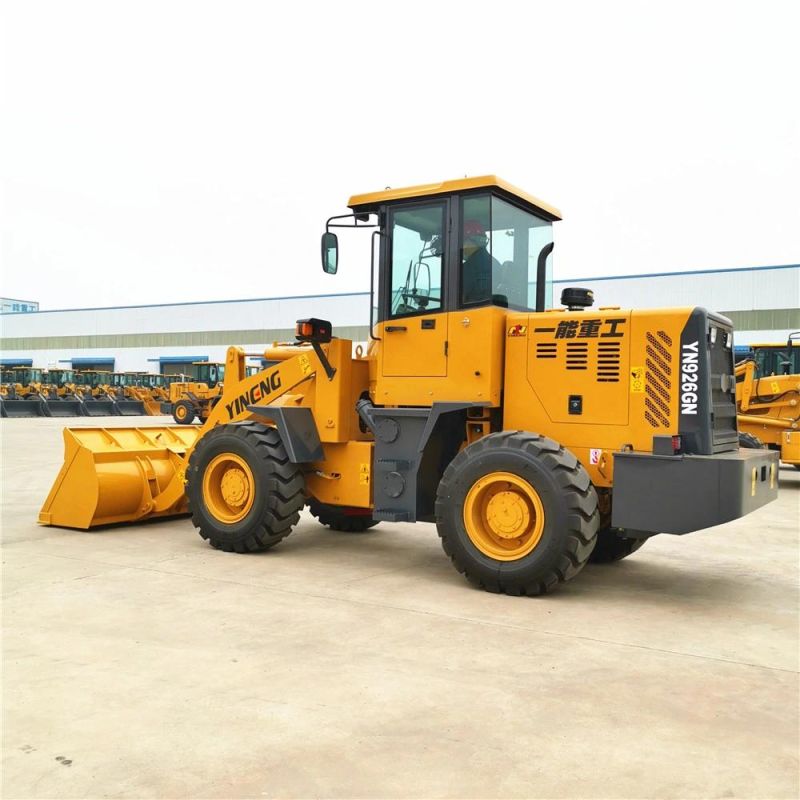

1.1 m3, 2 ton front wheel loader, with ISO9001: 2000 and CE approved.

* YTO diesel engine is adopted, with strong power.
* Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns simple structure and high reliability.
* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
* Double sealed hydraulic pipeline joints with 24° Awl and O ring of international standard, avoiding oil leakage;
* Load sensing fully hydraulic steering system makes operation easy.
* Air over hydraulic brake system; Caliper disc brakes.

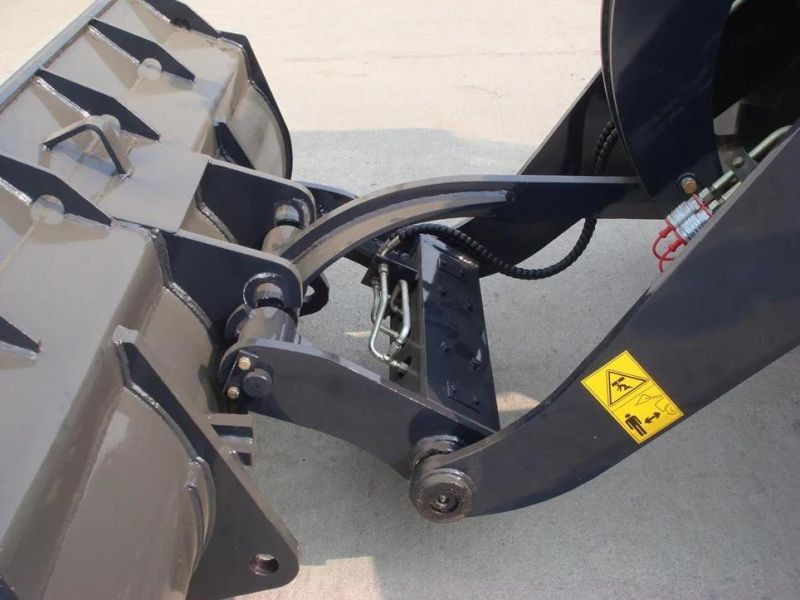

* Working device with automatically levelling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

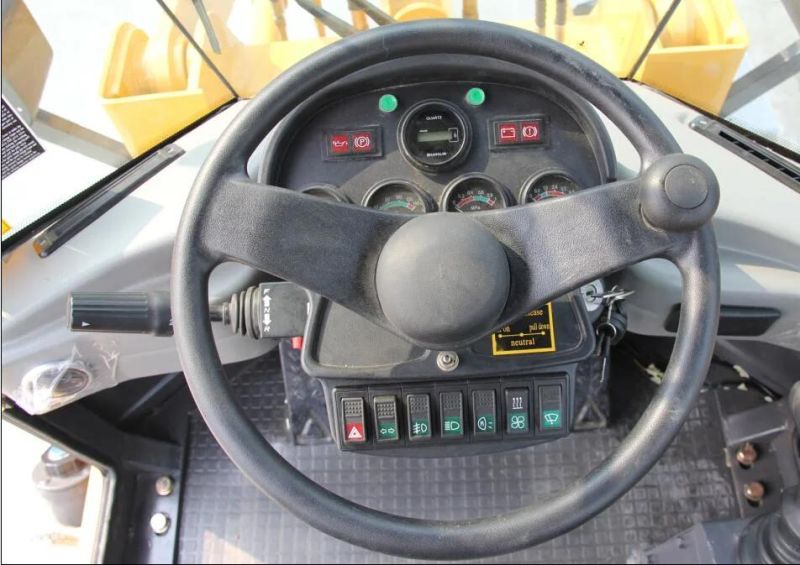

* Integral, luxury instrument board.

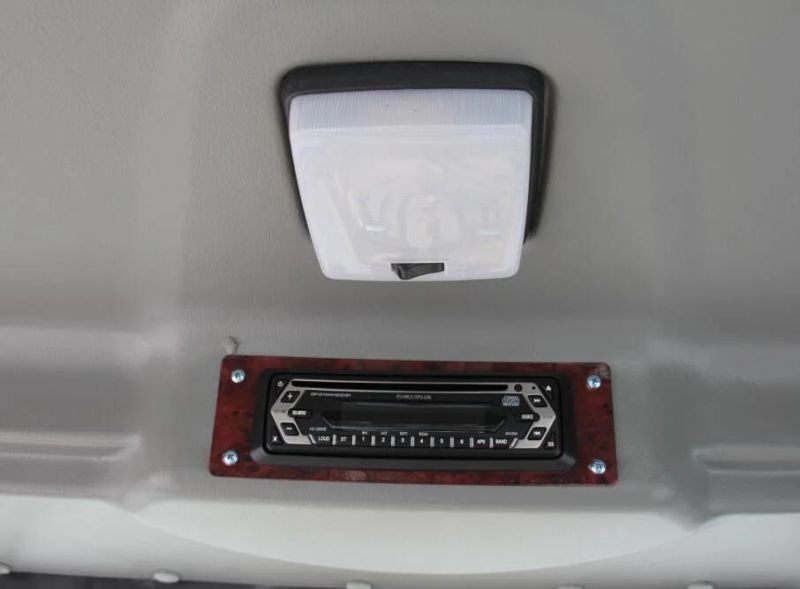

* New, luxury cabin.

OPTIONAL:
(1) LOVOL 1004-4L06 (60KW)
(2) DONGFENG CUMMINS 4BTA3.9-C100(74kw)
(3) ORIGINAL CUMMINS B3.3TAA-80 (EURO III)
(4) ELECTRONIC CONTROL
(5) A/C
(6) Joystick control
(7) Quick hitch
(8) Fork
(9) ROPS

Item	Specifications	Item	Specifications
Bucket capacity	1.1 m 3	Min. turning radius (outside of rear wheels)	4600 mm
Rated load	2000 kg	Steering angle	Each direction 35º
Dumping height	2750 mm	Min. ground clearance	320 mm
Dumping reach	920 mm	Wheel base	2350 mm
Boom lifting time	5 S	Tread	1500 mm
Total cycling time	9 S	Engine model	YTO LR4018G
Max. speed	25 km/h	Rated power	60 kW/2400 rpm
Max. breakout force	55 kN	Tyre	16/70-20
Max. drawing force	45 kN	Overall dimensions	5880*2060*2750 mm
Max. grade ability	30°	Operating weight	6000 kg

Company Profile

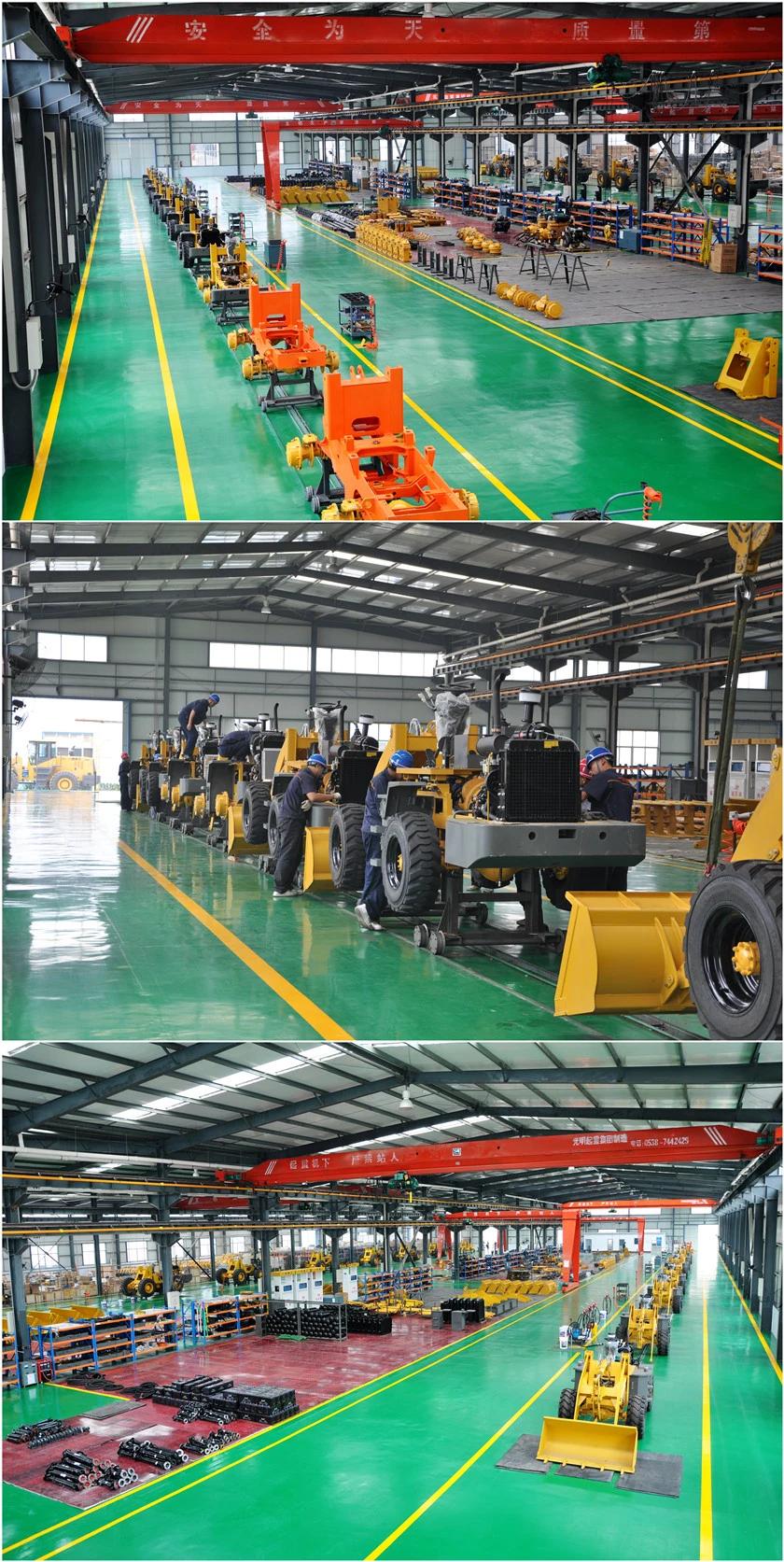

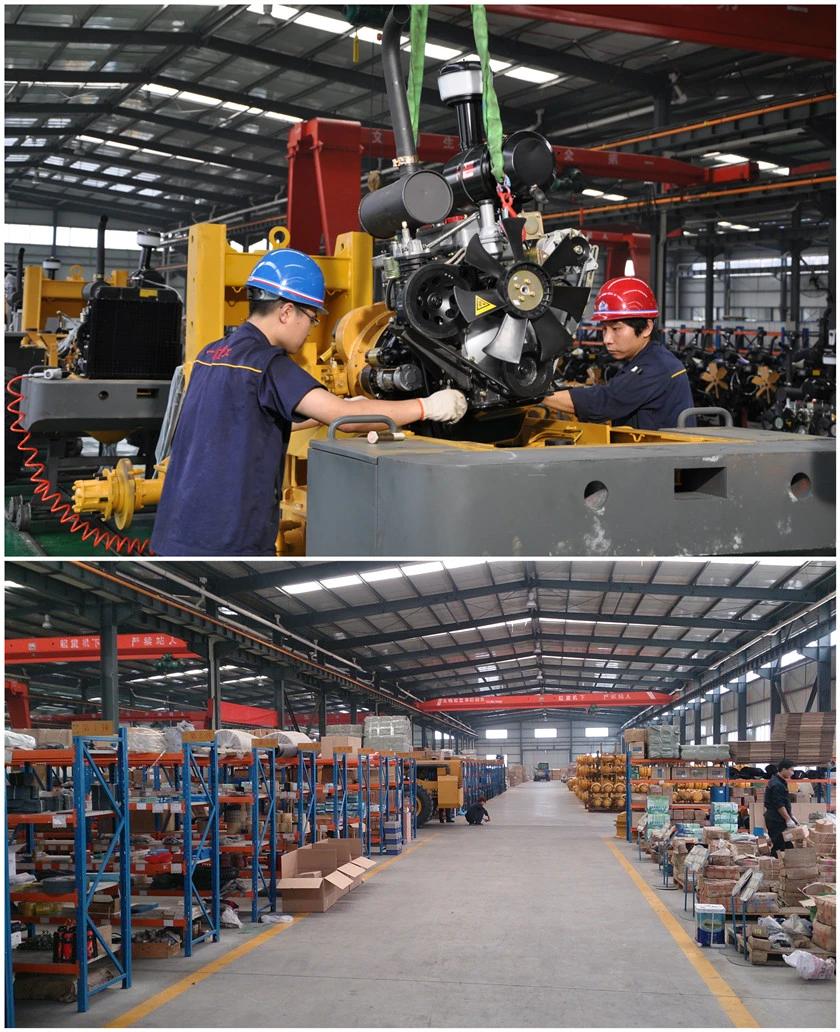

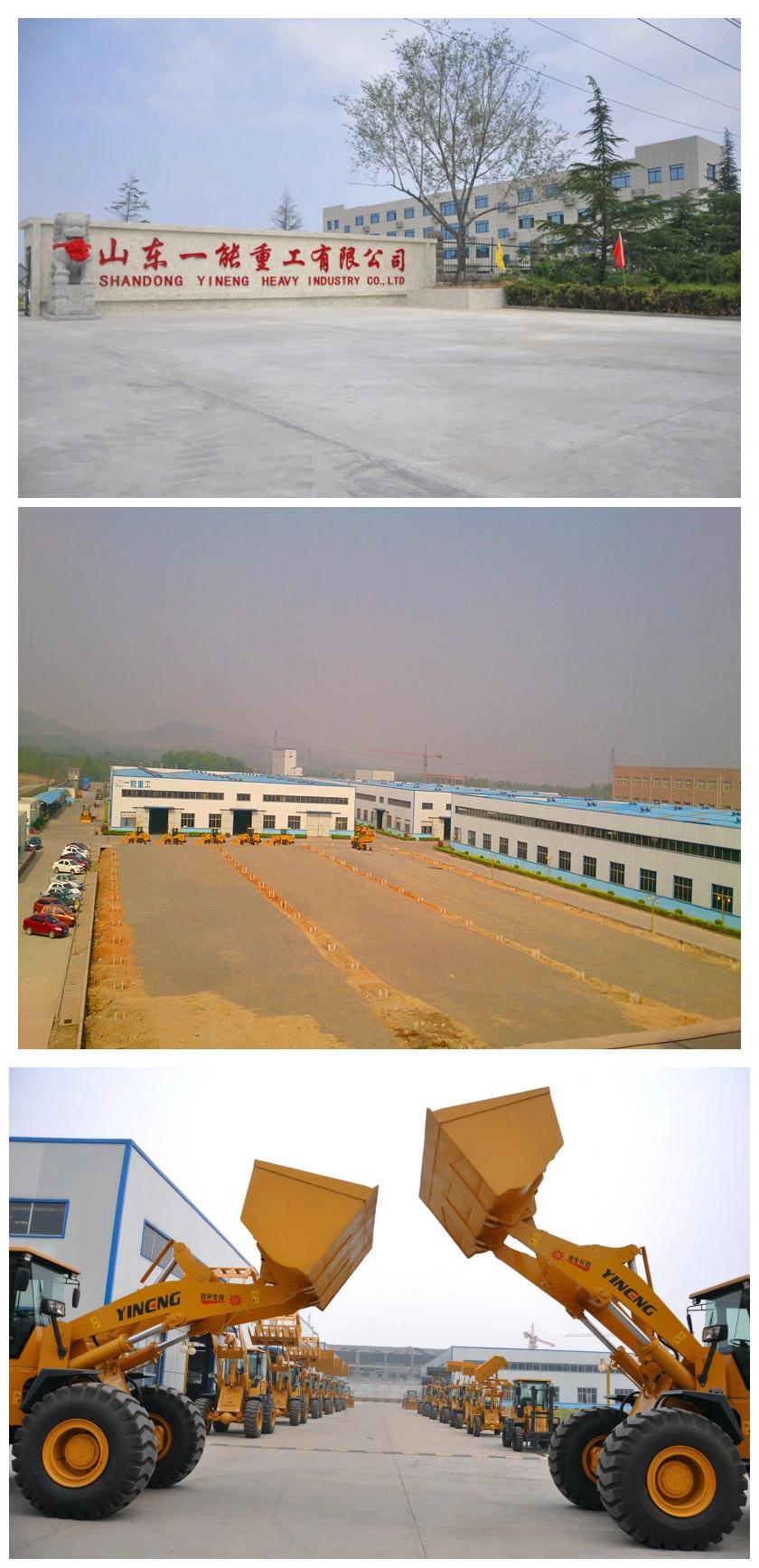

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil,  Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
