• Model NO.：Shantui SD22
• Condition：New
• Use：Construction Machinery
• Product Name：Crawler Bulldozer
• Delivery Time：Shipped in 30 Days After Payment
• Engine：Imported Engine From America Nt855-C280s10
• Blade Type：Shantui SD22
• Rated Power：220HP
• Machine Weight：22000kg
• Width of Track Shoe：560mm
• Name：Shangtui Crawler Bulldozer
• Keywords：Shantui Hydraulic RC Bulldozer Dh17 Bulldozer
• Transport Package：Nude
• Specification：6000× 3725× 3332
• Trademark：SHANTUI
• Origin：China
• HS Code：8429510000
• Production Capacity：500 Unit,Month

ITEMUNITSD22L×W×H (Ripper not included)mm6000×3725×3332.18Operating weight (Ripper not included)t24.6Engine-imported engine from America NT855-C280S10Rated powerkW/rpm162/1800Gradeability°30Blade type-Straight tilt blade U-blade Angle bladeBlade widthmmStraight tilt blade 3725×1315 U blade      3800×1343 Angle blade 4365×1055Dozing capacitym³Straight tilt blade 6.4 U blade 7.5 Angle blade 4.7Ma× drop below ground of blademm538Lift height of blademm1210Ripper type-Single ripper Three-shank ripperRipping depth of rippermmSingle ripper 695 Three-shank ripper 666Lifting height of rippermmSingle ripper515 Three-shank ripper 555Number of carriers (each side)-2    Number of track rollers (each side)-7Number of track shoes (each side)-41Width of track shoemm560Track gaugemm2000Ground length and ground pressuremm/MPa3050-0.072Pitchmm216Forward speedkm/h0-3.60-6.50-11.2Reverse speedkm/h0-4.30-7.70-13.2

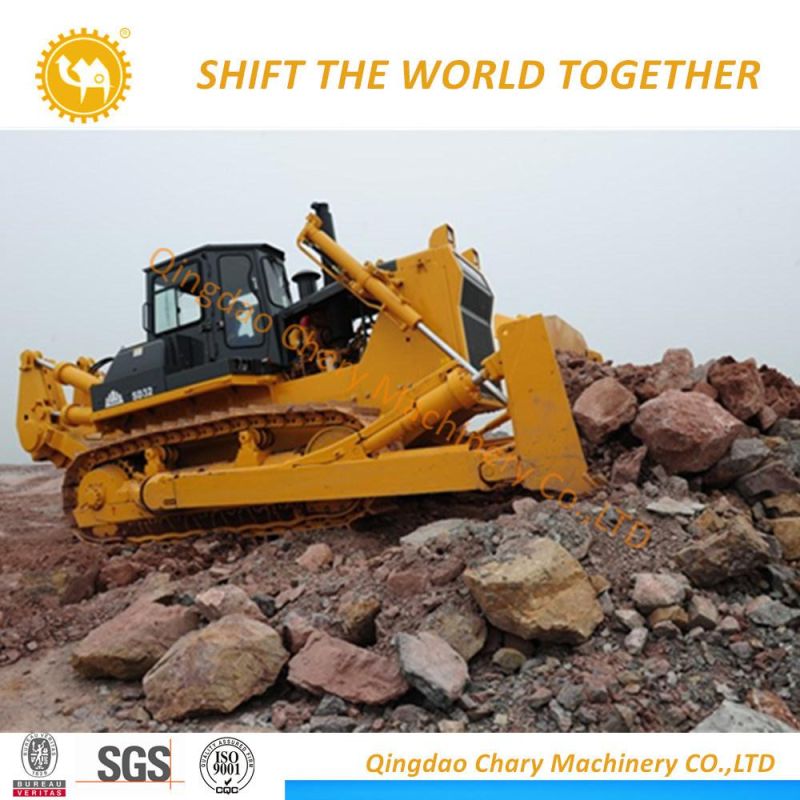

High Efficiency New Shantui SD22 Crawler bulldozer

Shantui 220HP bulldozer SD22 with rear ripper



1.Chongfa NT855-C280S10 engine features strong power and high efficiency and energy-saving.



2.The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission efficiency.



3.The engine can run normally and reliably under all load conditions and all hot environments required by the user without overheating.



4.It can realize the automatic diagnosis and whole-process monitoring of the malfunctions. The integrally injection molded instrument panel integrates the A/C, electric devices, and instruments, featuring beautiful appearance and high grade.



5.The full box-type main frame with application of high performance materials and high strength castings features high by carrying capacity against impact load and bendingmoment and the high quality welds guarantee the life cycle of the main frame.



6.The semi-rigid suspension traveling system increases the ground area of tracks and improves the traction force of vehicle.



7.The ergonomically designed driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side with the adoption of flexible shaft structure. The working device controls are arranged on the right side with adoption of servo control system to achieve lighter and more flexible operations and relieve the operating fatigue.



8.The standard straight tilting blade features powerful cutting force to handle diversified severe working environments and the large single-shank ripper of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.



Configuration:

• Engine: Cummins  Euro-II/Euro-III
• Rated powet:220HP
• Blade type: Straight Tilt Blade
• Shantui Chassis
• Shantui  transmission
• Cabin with Air Conditioner
• Operating Weight (with ripper):25 ton

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU


WHY CHOOSE US?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.




OUR SERVICE

(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

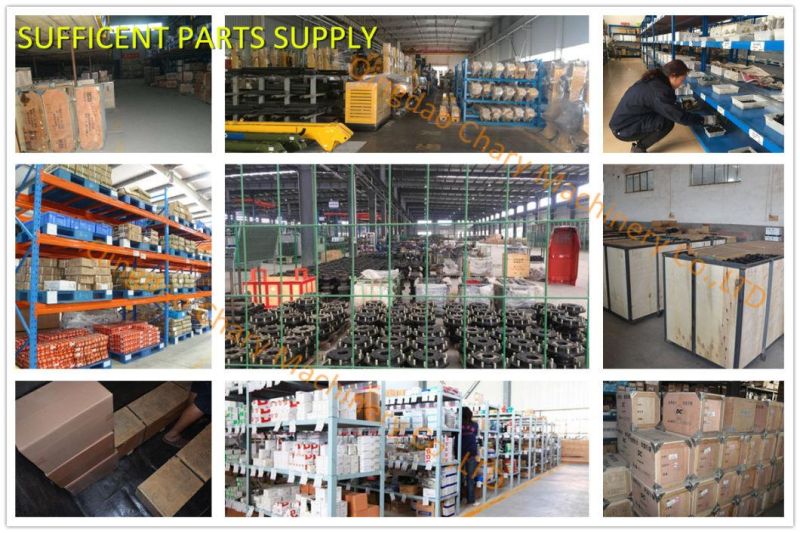

(6) Spare Parts Supply:
