• Model NO.：TZ03D(04D,06D,08D)
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：Wooden Packing or Iron Crate Package
• Specification：220*80*110cm
• Trademark：OEM
• Origin：Weifang China
• HS Code：8432
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. TZ03D(04D/06D/08D) Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Wooden Packing or Iron Crate Package Specification 220*80*110cm Trademark OEM Origin Weifang China HS Code 8432 Production Capacity 1000 Sets/Year

Product Description

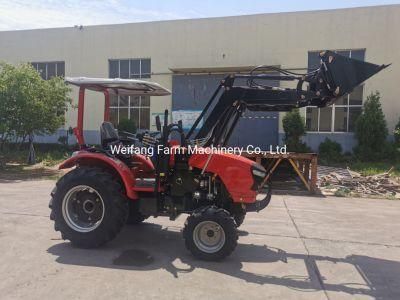

                                                       4 in 1 Front End Loader for Tractor

• Specification & Features
  • Standard level lift.
  • Perfect painting and finishing in details.
  • Special requests on the the size if bucket are available
  • Quick release bracket and it is very easy for installation.
  • Quick release attachment which can work with others extensive implements

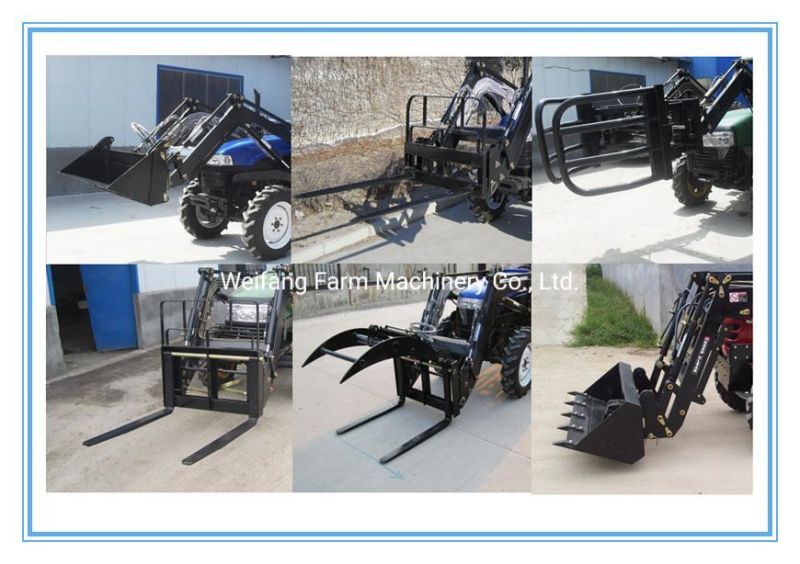

  • 4 in 1 bucket,pallet fork and wood Grapple are available on it.

Type	TZ03D	TZ04D	TZ06D	TZ08	TZ10D
Fitted Power (hp)	25/28	30/50	50/60	60/70	80-90
Rated Capacity (cbm)	0.2	0.23	0.3	0.43	0.6
Rated load (kg)	300	400	600	800	1000
Uninstall Height Max. (mm)	1800	2000	2000	2200	2400
Unload angle	45°	45°	45°	45°	45°
Uninstall Distance Max. (mm)	650	900	900	960	1000
Time for bucket lifting (Seconds)	6	7	7	8	8
Max. Digging depth (mm)	100	140	140	160	160
