60t/H, 80t/H, 120t/H Stationary Mini Asphalt Mixing Plant Price
Zhengzhou Focus Machinery Co., Ltd.- Type：Asphalt Mixing Plant
- Object：Asphalt Concrete Pavement
- Moving Type：Fixed
- Mixing Method：Intermittent Compulsory
- Automatic Grade：Automatic
- Product Capacity：40～400t,h
Base Info
- Model NO.：LB1000 asphalt mixing plant
- Certification：ISO9001: 2000, CE
- Condition：New
- Power of Asphalt Mixing Palnt：280kw
- Dry Cylinder：1.3mx5.2m
- Emission Standard：50mg,Nm3
- Asphalt Tank Volume：30000L
- Mixing Kettle Capacity：Mixing Kettle Capacity
- Vibrating Screen：4 Layers
- Hot Aggregate Container：15t Asphalt Mixing Plant
- Mixing Cycle：45s Asphalt Mixing Plant
- Control System：Manual ,Semi-Auto , Automatic
- Name：60t,H, 80t,H, 120t,H Stationary Mini Asphalt Mixin
- Transport Package：4-20 Sets of 40hq
- Specification：ISO9001: 2008, CE
- Trademark：FOCUS
- Origin：Zhengzhou, China
- HS Code：847432000
- Production Capacity：20sets,Months
Description
Filler: ±0.5%
Bitumen: ±0.25%
Sizes of asphalt batching plant / asphalt mixing plant for sale:
LB compulsory type asphalt mixing plant:
LB500(40T/H), LB800(64T/H), LB1000(80T/H), LB1500(120T/H), LB2000(160T/H), LB2500(200T/H), etc.
DHB drum type asphalt mixing plant:
DHB 20 20t/h, DHB40 40t/h, DHB60 60t/h, DHB80 80t/h
Mobile type:
MDHB20 20t/h, MDHB40 40t/h, MDHB60 60t/h, MDHB80 80/th

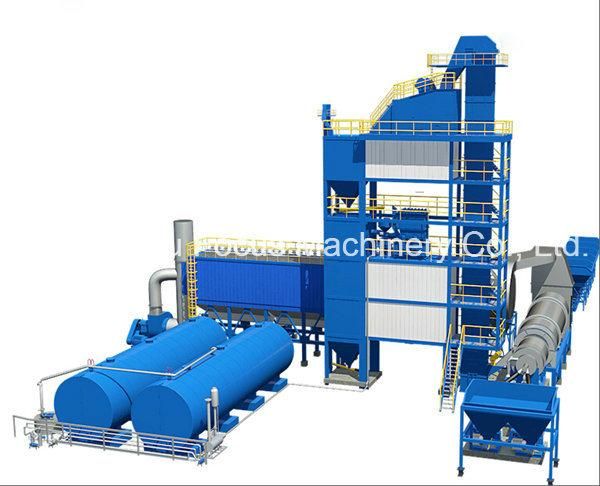

Main Features of LB Series of stationary asphalt mixing / batching plant:
1.The original modular design of the mixing plant makes transport and installation work quick and convenient. It can separate extra flotsam from useful stuff.
2.Superior design of drying drum, advanced combustion heating technology can improve efficiency, reduce energy consumption.
3.Plate chain type hot aggregate and powder hoist, can improve the life of the hoist.
4.High hot aggregate bin can enlarge the volume for aggregates, enlarge the production capacity.
5.Advanced pulse bag dust collector, soot emissions below 20mg/Nm3, can meet the highest international environmental standards.
6.Automatic / manual control system with fault self-diagnosis program, simple and safe.
7.Optimized design, while using high-energy conversion rate Hardened reducer, energy efficient.
8.Core components adopt international famous brand products, such as Siemens motors and electrical components, EBICO burners, Switzerland METTLER TOLEDO weighing sensor, etc., reduces the failure rate and prolong the life of equipment.

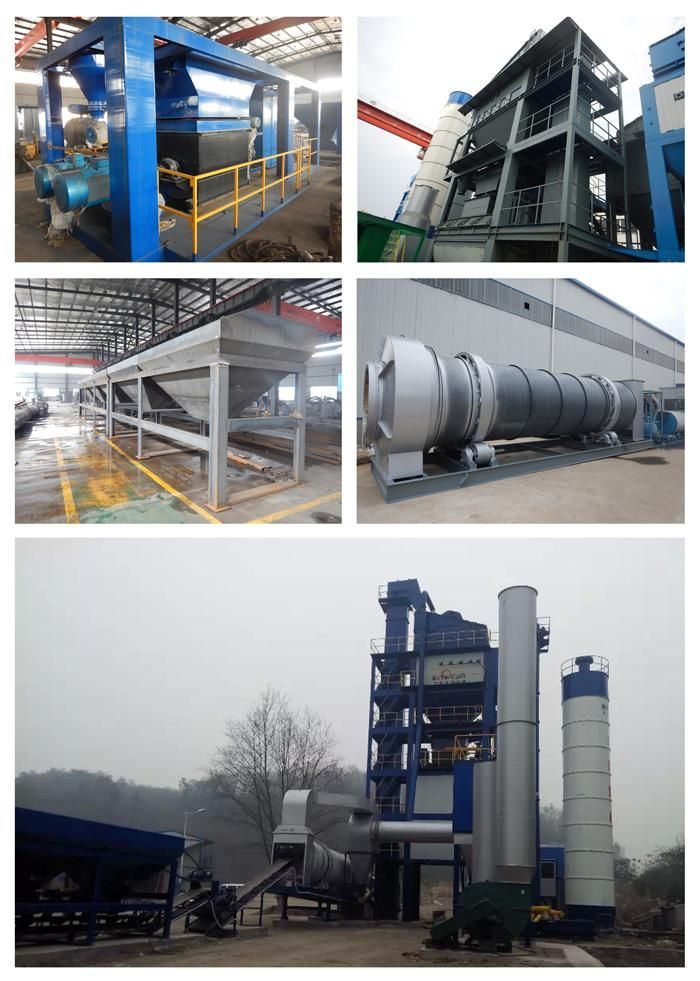

Parts of LB series Aspahlt Mixing /Batching Plant:
1.Cold Aggregate Supply System
Detachable structure is more suitable for transportation, and can guarantee large capacity.
Seamless ring belt, more reliable, can be used for longer time.
Frequency convertor control, infinite variable speed adjustment, more accurate and can save energy.
2.Drying Drum
SIEMENS motors, hard-teeth reduction gear, friction driving, drum rotating stably.
Optimized lift blade design, make sure heating equably and high energy using ratio.
With 50mm insulating layer and stainless steel skin, avoid heat be lost.
3. Burning System
The burner can use both diesel and heavy oil. Oil circuit system is separated with the burner body, safe and convenient and flexible. The working pressure of the oil pump is 12 bar, long service life, oil selection is wide.
4.Dust Collection System
Two level dust collection system (volute casing collector + bag house collector), with high and low temperature protection device for the system security.
Bag house collector using USA Dupont NEMEX bags, heat resisting and long life.
5.Mixing Tower
Both aggregate and filler elevators are equipped with a double ring chain bucket, which is more reliable and convenient for maintenance.
Twin shaft compulsory asphalt concrete mixer, high mixing efficiency and long life.
Bitumen is sprayed into mixer through a special designed spray bar with high pressure to reduce feeding time and increase mixing uniformity.
Totally enclosed type circular vibration screen, modular design, vibration motor driving, low maintenance and long life.
Double layer much bigger hot aggregate storage hopper can effectively guarantee the continuity of the supply of hot aggregate; with 50mm insulating layer to avoid heat be lost.
6.Bitumen Supply System
Volume and number of bitumen tanks can be adjusted according to customer's requirement.
Oil heating type, the bitumen can be heated equably.
7.Filler Supply System
The standard stacked filler silo design is more convenient for connection with main tower and requires less space for installation.
Volume and number of filler silos are customizable.
8.Control System
Automatic/manual control system, with fault self-diagnosis process, easy to operate.
SIEMENS PLC electrical control system, reliability is high.
Fully graphic Multilanguage control interface is easy and convenient for different operators.
