• Model NO.：YN959G
• Type：Large Loader
• Transport Package：Naked
• Specification：7960*3070*3400mm
• Trademark：YINENG
• Origin：Shandong Province of China
• HS Code：84295100
• Production Capacity：400 Units,Month

Basic Info.

Model NO. YN959G Type Large Loader Transport Package Naked Specification 7960*3070*3400mm Trademark YINENG Origin Shandong Province of China HS Code 84295100 Production Capacity 400 Units/Month

Product Description

1- FEATURES AND OPTIONALS:
FEATURES:
The most cost-effective
*Caterpillar Technology Shangchai engine is adopted, with large torque backup and strong power.
*ZF Tech gearbox & torque converter from Hangzhou Advance Gear Group
*Electro-hydraulic control, 4 forward and 3 reverse,
*Single lever joystick control system makes operation easy and comfortable.
*Strengthened axles own large bearing capacities and high reliability.
*Twin pump merging hydraulic system makes lower consumption and excellent performance.
*The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
*Air over hydraulic brake system; Eight caliper disc brakes.
*Air break control, expand hoof type parking brake and emergency brake.
*Large space articulated chassis makes operation and traveling stable.
*Working device with automatically leveling ability at high position.
*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

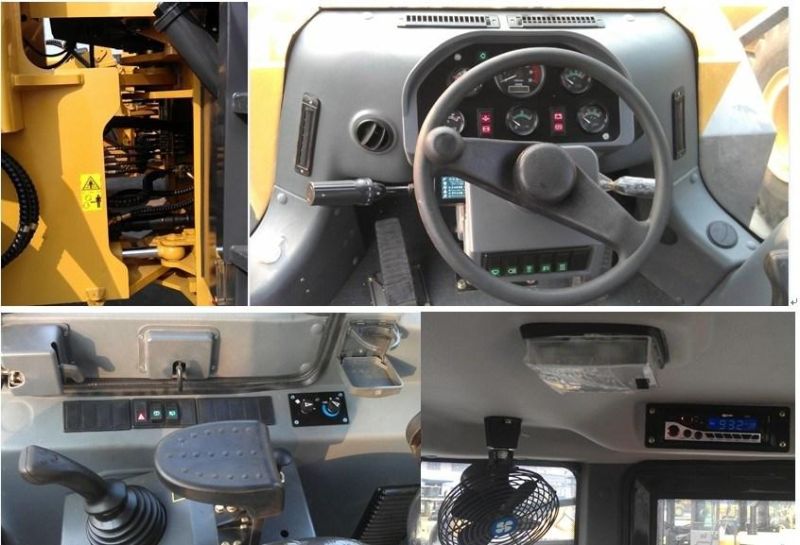

*Integral, luxury instrument board.
*New, luxury cabin.
*CE Approved. *Obtained the certificate of ISO9001: 2000; *Manufacturing license number: TS2510025-2009.

Item	Specification	Item	Specifications
Bucket capacity	3 m 3	Min. turning radius (outside of  rear wheels)	6630mm
Rated load	5000 kg	steering angle	38º
Dumping height	3100 mm	Min. ground clearance	500mm
Dumping reach	1280 mm	Wheel base	3200mm
Boom lifting time	6 S	Tread	2250mm
Total cycling time	12 S	Engine model	C6121ZG50
Max. speed	38 km/h	Rated power	162kW/2200rpm
Max. breakout Force	180 KN	Tyre	23.5-25
Max.drawing force	152 KN	Overall dimensions	7960*3070*3400mm
Max. Gradeability	30°	Operating weight	17000kg

Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
