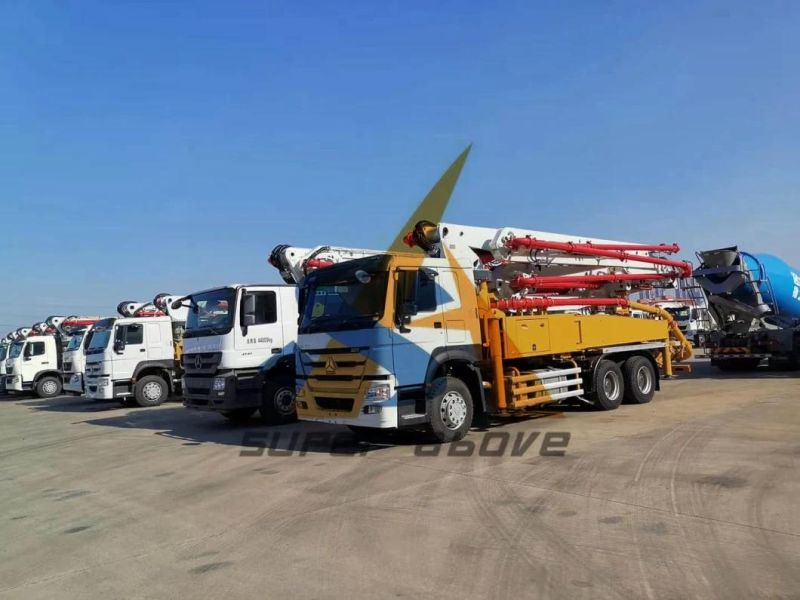

Concrete Machinery 35m 50m 52m Mounted Cement Pump Truck,Concrete Truck 38X,Factory Supply Truck Mounted Tower Concrete Pump by Schaman,Nissan,HOWO,Sinotruck
Uptra Electric & Machinery (Shanghai) Co., Ltd.- Warranty：1year
- Type：Concrete Pump
Base Info
- Model NO.：cp
- Shotcrete Type：Wet
- Machining Process：Welded Molding Machine
- Structure：Cylinder Type
- Productivity：110m3,H
- Feeding Height：1400mm
- Vibrating Amplitude：23t,Min
- Certification：ISO9001: 2000, CE
- Condition：Used
- Color：Red
- Application：Pouring Concrete
- Name：Concrete Pump Truck
- Using：Delivery Concrete
- Truck Brand：Sinotruck
- Control Type：Wireless Remote Control
- Oil Pump：Rexroth
- Boom Length：30m
- Boom Structure：4m
- Weight：23.45t
- Transport Package：40fr
- Specification：11.5*2.6*5m
- Trademark：Super-above
- Origin：China
- HS Code：87059091
- Production Capacity：400sets,Year
- Package size per unit product：1200.00cm * 400.00cm * 300.00cm
- Gross weight per unit product：24000.000kg
Description
Pumping systemMax. Theor. output(high/low pressure) m3/h 66/111 Max. Theor. concrete output Pressure(high/low pressure) MPa 10/6 Rated working pressure MPa 32 Pumping frequency(high/low pressure) min-1 16/27 Hopper capacity L 600 Filling height mm 1400 Hydraulic system type Open loop Distribution valve S valve Oil cylinder dia.×stroke mm φ125×1650 Concrete cylinder dia.×stroke mm φ230×1650 Hydraulic oil cooling Air cooling Recommended concrete slump cm 12~23 Max. aggregate dimension mm 40 Placing boom Structure type 30-4M Placing depth m 37 Horizontal distance m 26 Placing depth m 22 Slewing angle ±270° Pipe diameter mm 125 End hose length mm 3000 Min. height of opening placing boom mm 8000 Outriggers span (front×rear×side) mm 6140×7098×6706 Chassis and the whole machine Chassis model ZZ5207N4617E1 Wheelbase mm 5600 Engine type D10.34-50 Engine power kW 249kw Oil tank cubage L 400 Tail gas exhaust standard Nation V Overall dimensions mm 10340x2496x3770 Others Lubrication mode Mannual Operation and Hydraulic Oil tank volume L 500 Control mode Manual+remote control Maximum water pressure MPa 0.8 Water tank volume L 400 Pipe cleaning mode Water cleaning/dry cleaning
Main Advantages:
1.EquipΦ230mm cylinder, large displacement (125m3 / h) pumping system, the material absorption is more than 88%, the number of
commutation with the same displacement is low, and the wearing parts life is long;
2.The pumping system adopts electronically controlled commutation. The pumping commutation is quick and accurate, for system impact
is small, and the actual pumping efficiency is increased by more than 7% over the conventional hydraulically controlled commutation system.
3.Adopts industrial large pump truck integrated valve, the line is simple, the pressure loss is small, compared to the conventional valve
energy saving 17%. Hydraulic systems are not prone to heat.
4.Equipped high and low pressure pumping switching function, can pump large displacement, high speed and high efficiency. When
encountering poor materials, high-pressure pumping is not easy to block the pipe.
5.Equipped with full power and energy-saving dual pumping mode, the fuel consumption is lower. The engine speed can be adjusted in
conjunction with the pumping volume.
6.Equipped with a dedicated central controller for construction machinery, a large-size high-definition display, and LCD remote control.
The performance of the control system is stronger and the operation is more user-friendly.
7.Adopts imported multi-way valve. and the boom is particularly maneuverable, achieve man-machine integration, the boom can be
immediately and steadily stopped. The end hose is positioned quickly and accurately.
