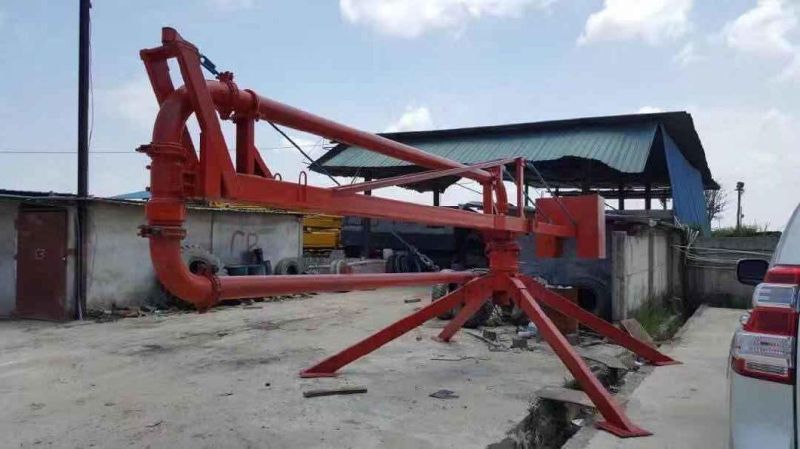

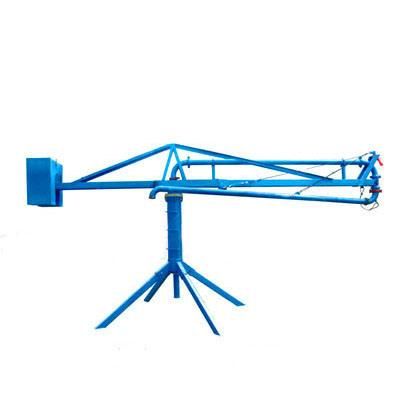

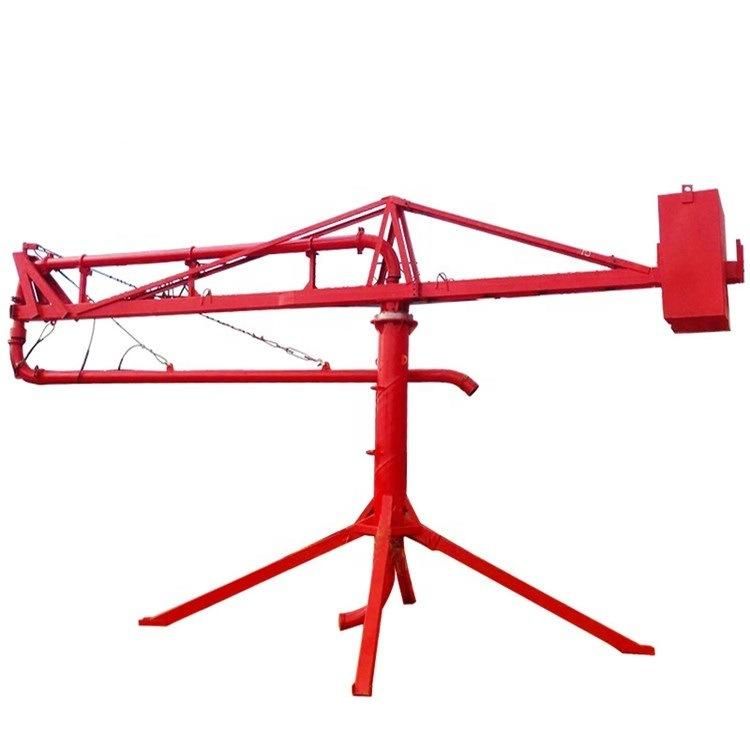

Concrete Pump Boom Placer Machinery for Construction Builders
HEBEI XIMAI MACHINERY EQUIPMENT SALES CO., LTD.- Type：Concrete Pumping Enquipment
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Cylinder Type
- Productivity：240m²,h
- Feeding Height：1370mm
Base Info
- Vibrating Amplitude：1.4mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Red or Customized
- Weight：1200kgs
- Transport Package：Standard Export Packing
- Specification：12m,15m,18m ,20m(manual,electric)
- Trademark：XIMAI
- Origin：China
- Production Capacity：5000sets Per Year
Description
Model
12M
15M
18M
Rotation mode
Manual
Manual
Manual
Max Turning radius
12m
15m
18m
Jib turning radius
6m
7.5m
9m
the height of placing boom
4m
4m
4m
placing area
452m*m
700m*m
1017m*m
Landingleg max span
3.2m×3.2m
4m×4m
4m×4m
Self weight
1100kg
1400kg
1900kg
Counterweight(self-provide)
1200kg
1500kg
20000kg
Main Features:
1. It can be placed in suitable places required without being fixed.
2. It features compact structure ,light weight and can be lifted as a whole by a crane.
3. With excellent maneuverability,it can meet the requirements for concrete placement on different jobsite ,and is ideal for concrete pumping and placing.
4. Easy operation,reliable safety and economical purchase.
5. It can be drived by people and are flexibility .
