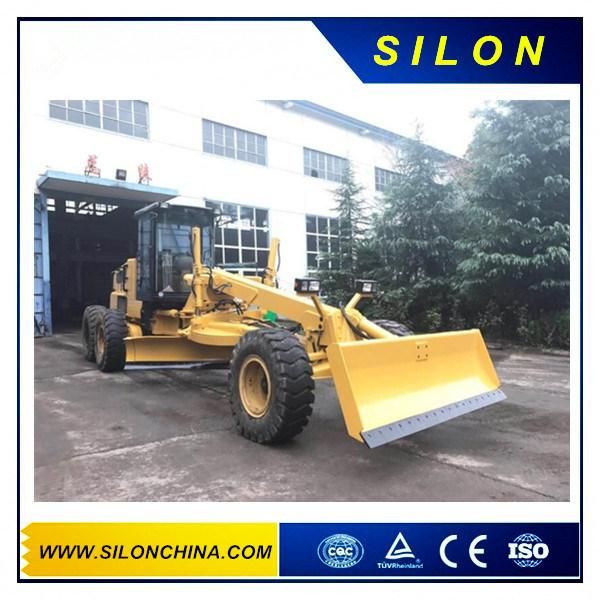

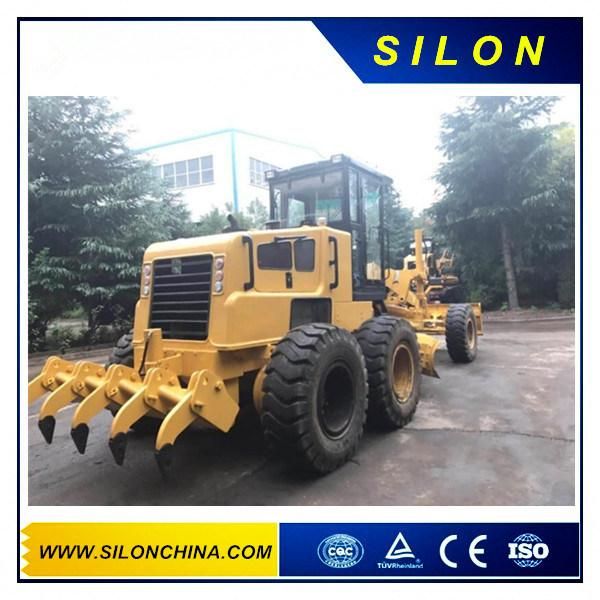

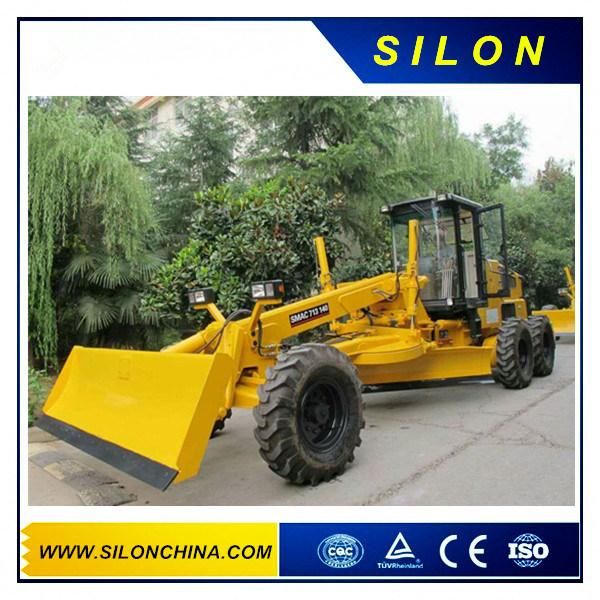

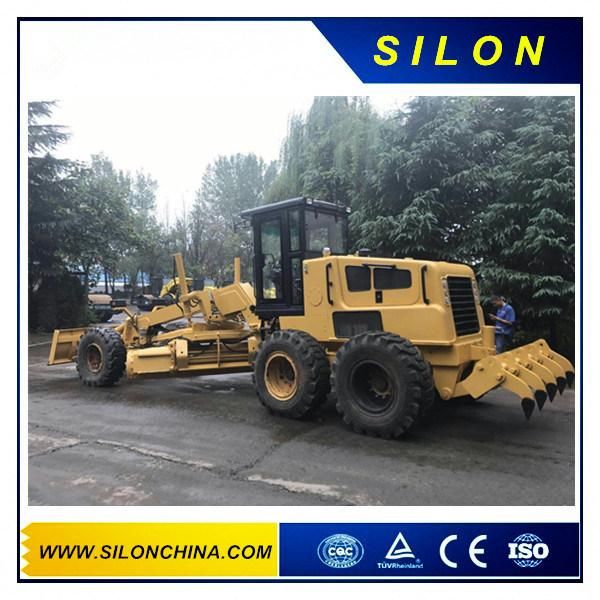

135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)

Luoyang Silon Industrial Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader

Base Info

  • Model NO.：PY165C
  • Engine Power：165HP
  • Engine Model：Cummins 6BTA5.9
  • Dimension(Lxwxh)：8970 X 2625 X3470mm
  • Operating Weight(Standard)：16500kg
  • Blade Width X Height：4270X610mm
  • Min. Turning Radius Using Articulation：7000mm
  • Optional：Ripper & Front Dozer
  • AC：Yes
  • Driving Type：Hydraulic
  • Front and Rear Axle：Double Chain
  • Transport Package：Nude
  • Specification：CE,CCC,ISO,GHOST
  • Trademark：Lutong
  • Origin：Luoyang, China
  • HS Code：84292010
  • Production Capacity：300 Units,Month

Description


Basic specificationEngine model6BTA5.9Rated power/speed125kW/2200rpm Dimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm
Our Product

135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)

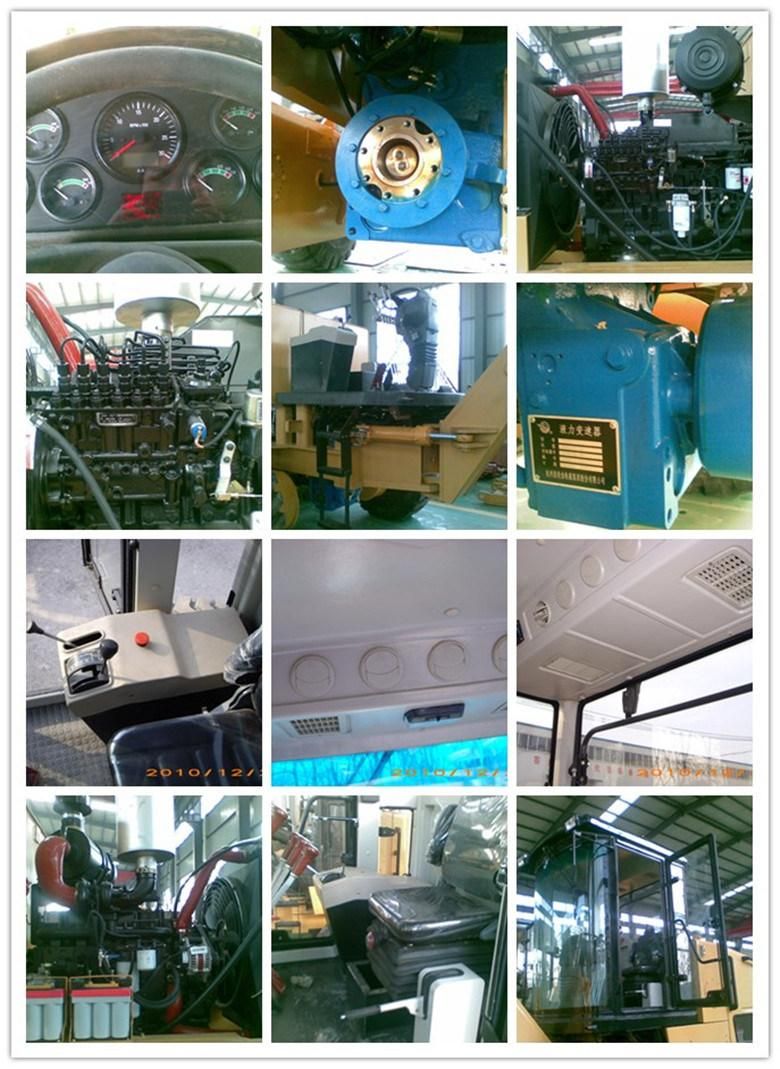

Key Parts of  the Grader

135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)

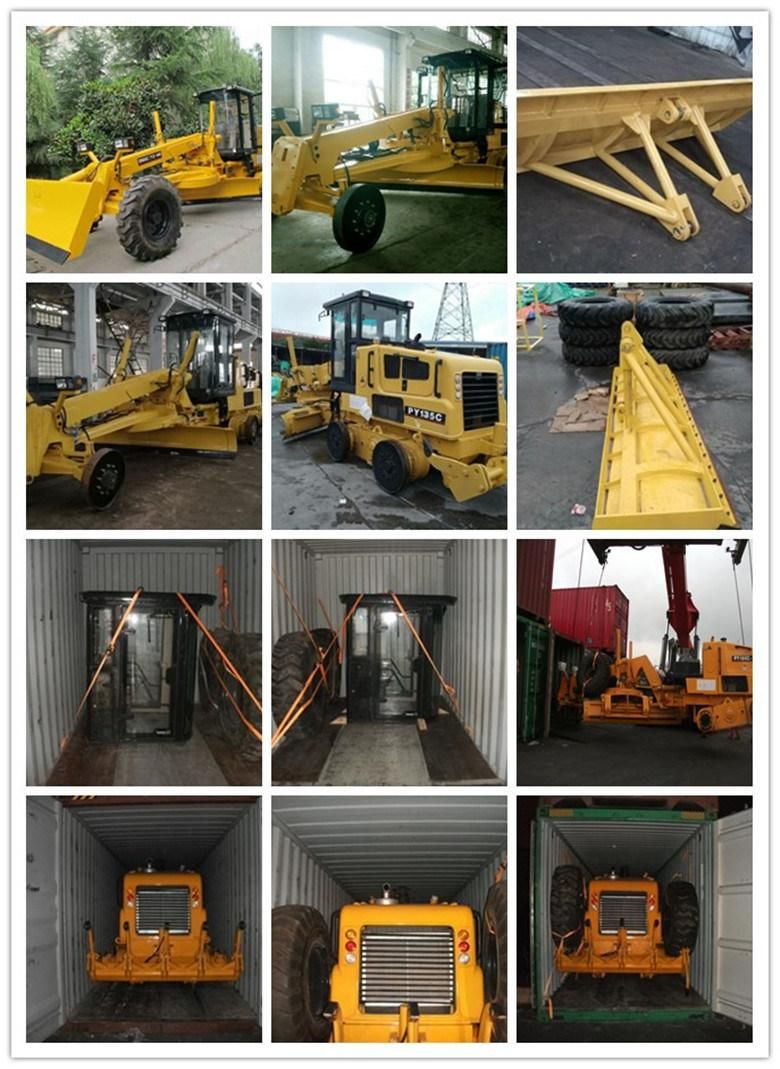

Pushed into container

135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
Our Certificaiton

135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
135HP 160HP 180HP 200HP 220HP Lutong Motor Grader with Front blade and The Ripper (PY165C)
