• Model NO.：PC450,PC460
• Boom Length：15000mm
• Middle Boom Length：2500mm
• Arm Length：8500mm
• Max Reach Height：27200mm
• Max Weight of Crusher：1500 Kg
• Folding Height：3100mm
• Weight：4600kg
• Excavator Tonnage：45ton
• Material：Q690d (Stregnth:690MPa =Weldox700)
• Transport Package：Bubble Film
• Specification：Q345B and Q690D Steel Plate
• Trademark：GD-Haide
• Origin：Dongguan City, Guangdong Province, China
• HS Code：843149
• Production Capacity：500set,Year

Basic Info.

Model NO. PC450/PC460 Boom Length 15000mm Middle Boom Length 2500mm Arm Length 8500mm Max Reach Height 27200mm Max Weight of Crusher 1500 Kg Folding Height 3100mm Weight 4600kg Excavator Tonnage 45ton Material Q690d (Stregnth:690MPa =Weldox700) Transport Package Bubble Film Specification Q345B and Q690D Steel Plate Trademark GD-Haide Origin Dongguan City, Guangdong Province, China HS Code 843149 Production Capacity 500set/Year

Product Description

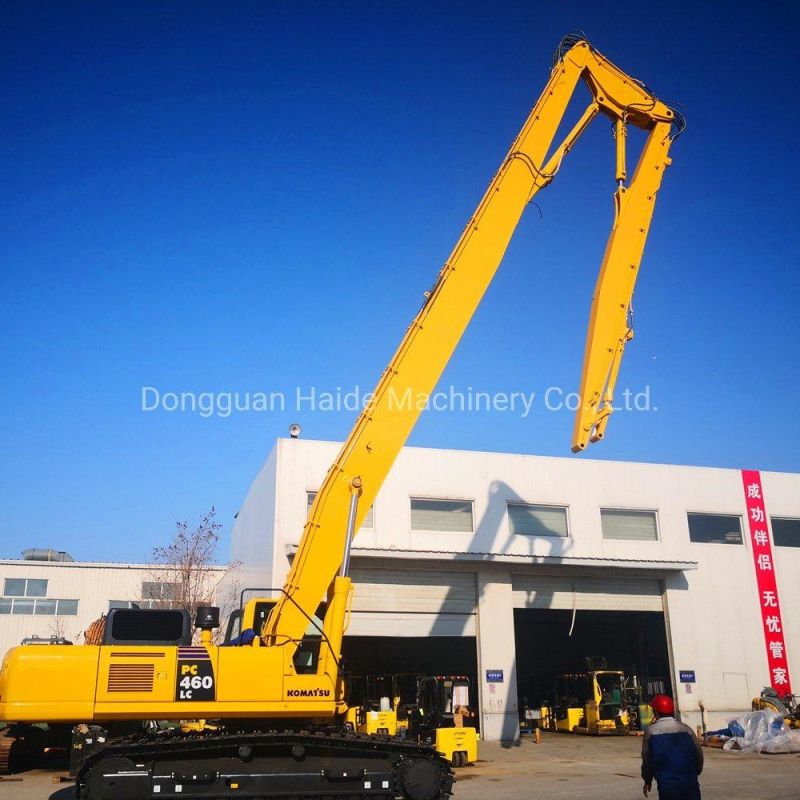

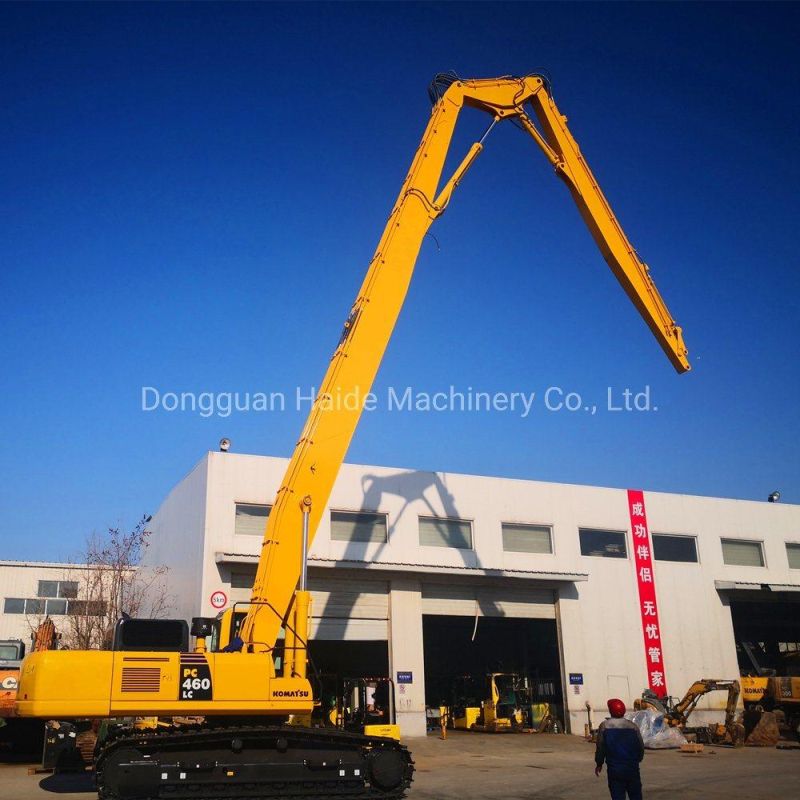

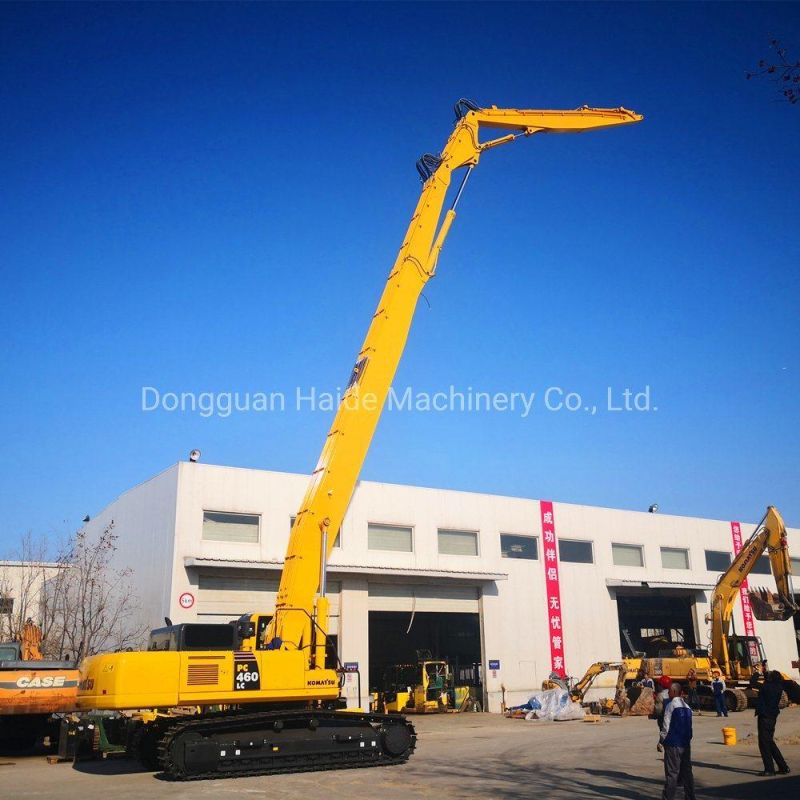

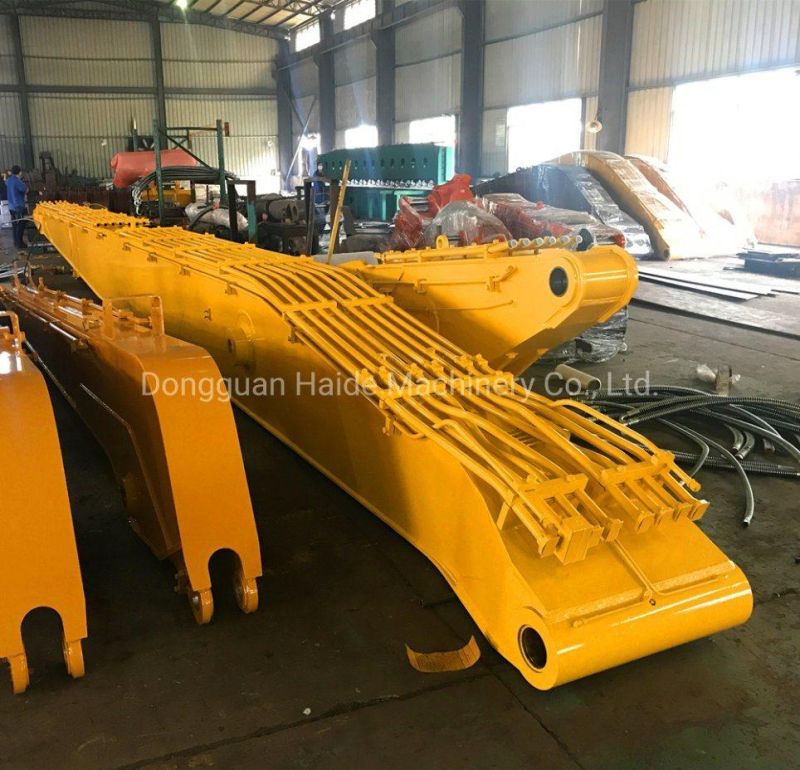

 PC450/PC460 26meters High Reach Demolition Boom

Total Length: 26000mm
Boom Length: 15000mm
Middle Boom Length: 2500mm
Arm Length: 8500mm
Max reach height: 27200mm
Max Weight of Crusher: 1500 Kg
Folding height: 3100mm
Weight: 6500kg
Excavator tonnage: 45T
Material: Q345B (SGC490)+Q690D
Warranty: 6month
Color: Optionald
CE certification is available

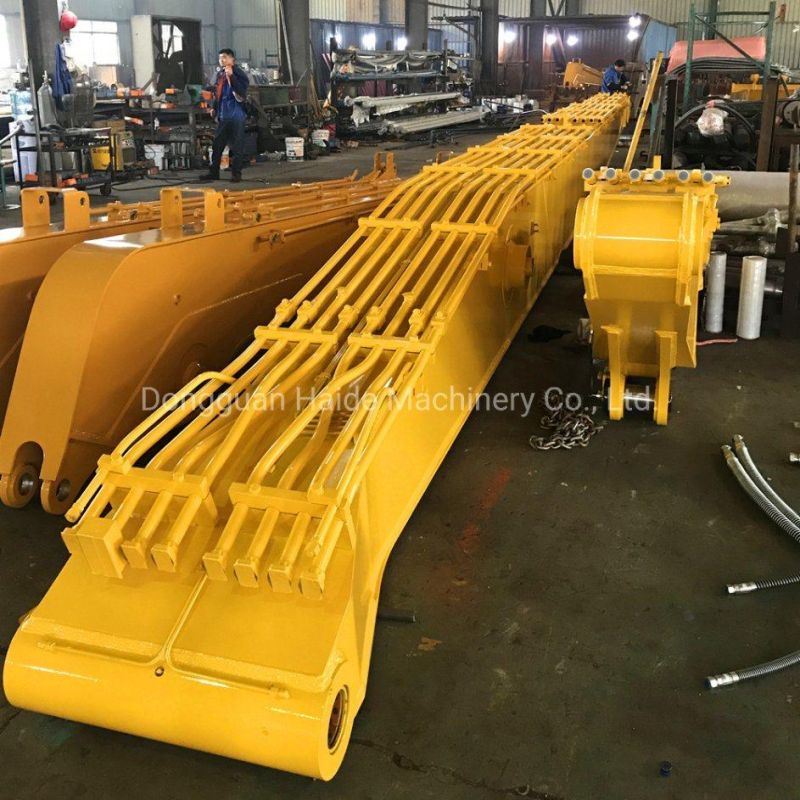

The include parts as following: :
Hydraulic pipe and the Lubricant pipe System, 1*Bucket cylinder, 1*arm cylinder, 1*connect rod, 24*high-pressure hose, 9*pins, Severalshims, installtools, etc
If you need other cylinder and counter weight, we also can prepare for you.
We also can customize all kinds of long boom as per your any requirements.
Mainly used for demolishing high buildings, made of high strength steel plate, completely match with the crusher, designed with spray pipe to reduce dust.

Different material such as Q345B, Q690D, Weldox and so on are for your options or according to your application purpose.
We will provide installation instruction for the demolition boom and counter weight.

If possible visit China, welcom to our factory have a look. It will be our big pleasure to service for you.

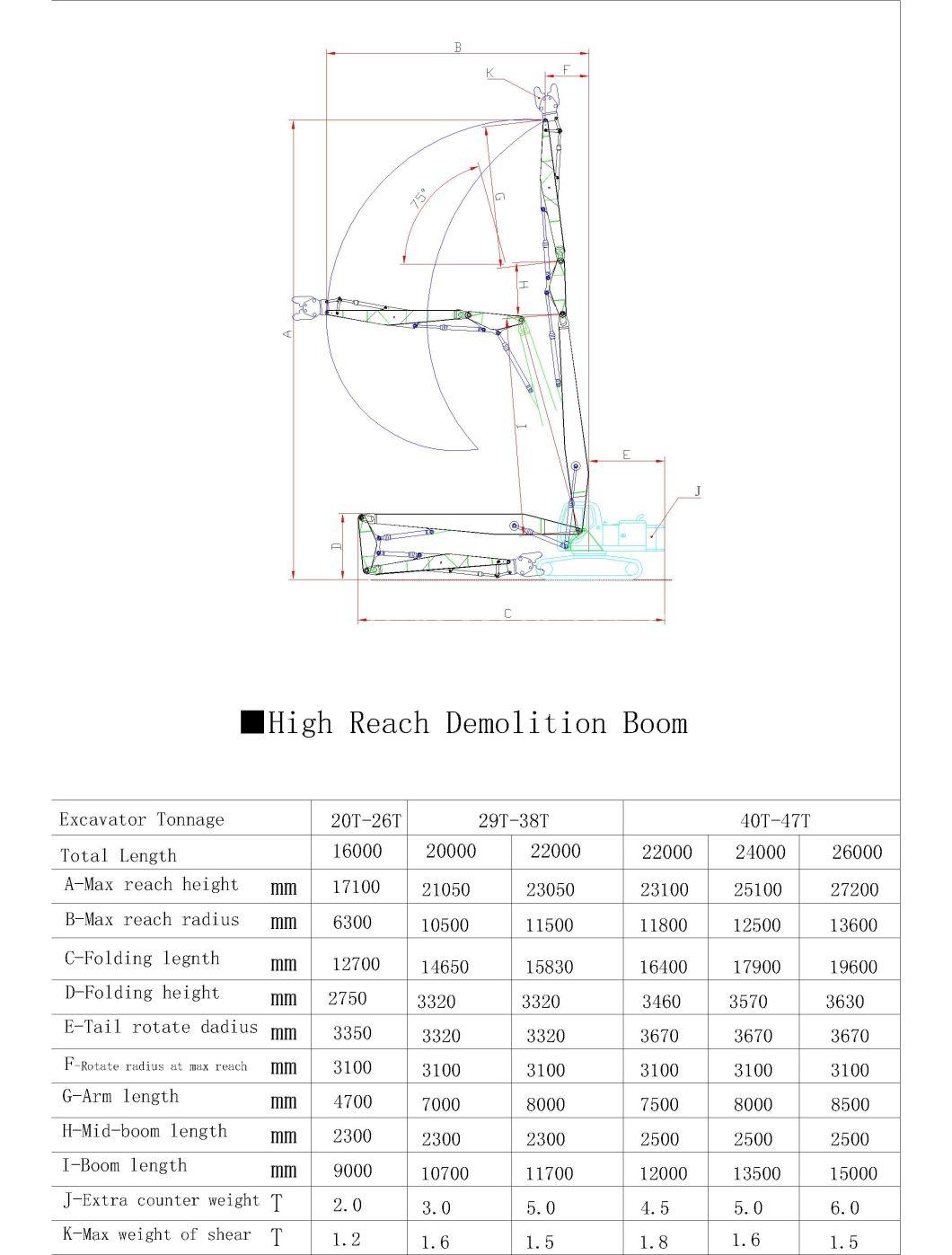

MODEL	LDB200	LDB250	LDB300	LDB350	LDB400	LDB450
boom length(mm)	7800	8500	9500	10500	11500	12500
middle boom length(mm)	2100	2300	2300	2300	2400	2400
arm length(mm)	4600	5200	6200	7200	8100	9100
Weight(kg)	4600	5000	6000	7500	9000	10000
Max. reach height(mm)	15000	16800	18800	21800	25000	27200
folding height(mm)	3100	3160	3290	3290	3420	3420
Max weight of Crusher(kg)	1500	2000	2000	2000	2200	2200
Suit Excavator tonnage(ton)	20	25	30	35	40	45
