• Model NO.：PCF77W
• Travel Speed：15-20m,Min
• Centrifugal Force：13.5KN
• Certification：CE, ISO 9001:2008
• Condition：New
• Frequency Vpm：5600
• Efficiency：660m2,Hr (7100FT2,Hr)
• Plate Size：560*475mm
• Engine：5HP Robin,5.5HP Honda,6HP Diesel
• Road：Paver Compactor
• Gasoline：Honda Plate Compactor
• Double Direction：Reversible Plate Compactor
• Forward：Tamper Compactor
• Soil：Plate Packer
• Hand Held：Small Compactor
• Landfill：Wacker Plate Tamper
• Single Cylinder：Petrol Wacker Plate
• Cast-Iron：Plate Compactor Pad
• Ground：Small Plate Compactor
• Pavement：Stone Compactor
• Transport Package：Export Carton
• Specification：80KG
• Trademark：CAG
• Origin：China
• HS Code：8430610000
• Production Capacity：10000 Sets,Month

Basic Info.

Model NO. PCF77W Travel Speed 15-20m/Min Centrifugal Force 13.5KN Certification CE, ISO 9001:2008 Condition New Frequency Vpm 5600 Efficiency 660m2/Hr (7100FT2/Hr) Plate Size 560*475mm Engine 5HP Robin/5.5HP Honda/6HP Diesel Road Paver Compactor Gasoline Honda Plate Compactor Double Direction Reversible Plate Compactor Forward Tamper Compactor Soil Plate Packer Hand Held Small Compactor Landfill Wacker Plate Tamper Single Cylinder Petrol Wacker Plate Cast-Iron Plate Compactor Pad Ground Small Plate Compactor Pavement Stone Compactor Transport Package Export Carton Specification 80KG Trademark CAG Origin China HS Code 8430610000 Production Capacity 10000 Sets/Month

Product Description

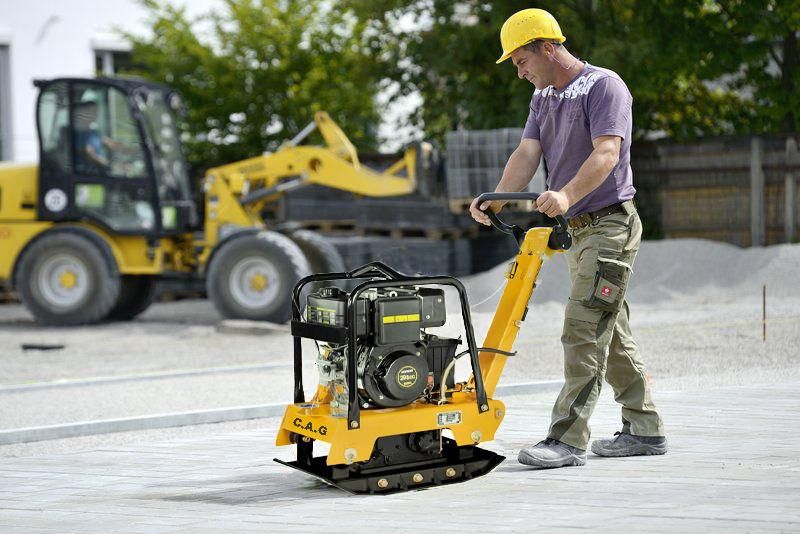

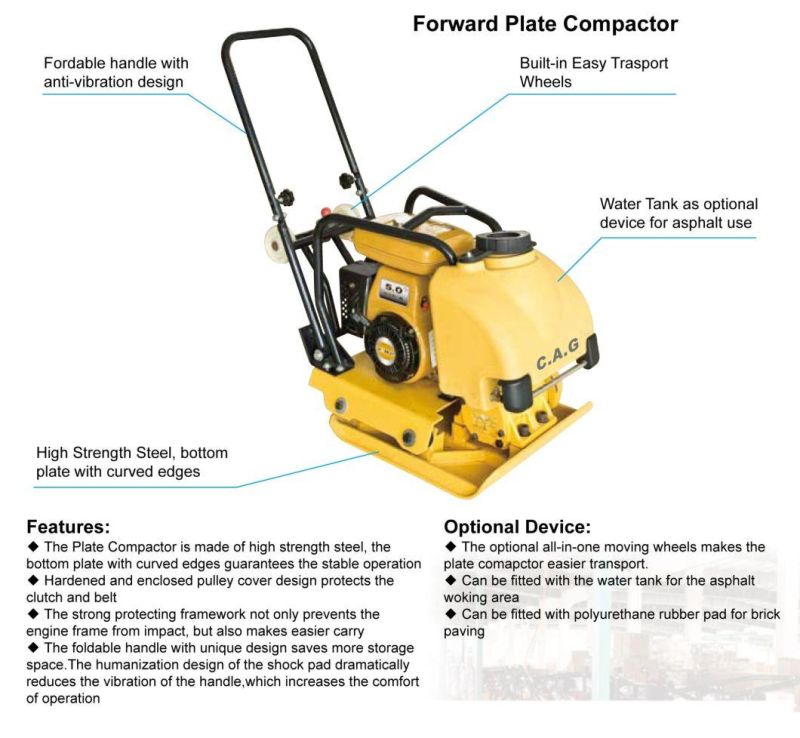

C.A.G's single-direction vibratory plate compactor, model No.: PCF77W, is powered by a 5HP Robin, 5.5HP Honda/ Lifan petrol engine or 6HP diesel enigne, its working weight is 80kg/176 lbs. This vibratory plate compactor delivers 13.5kN of centrifugal force, ensuring it gets the job done quickly. Its compactor plate size is 560 x475mm. with speeds of up to 5,600 vibrations per minute and 450 square meters per hour. This plate compactor is most suitable for compacting your own gravel for patios and finishing asphalt, paths, soil, sand, driveways, and sloping surfaces.






Technical Specification:

Model	PCF77W
Plate size L*W (mm)	560*475
Travel speed (m / min)	15-20
Limited grade ability	20
Vibration Frequency vpm(Hz)	5600
Centrifugal force (KN)	13.5
Engine model Option	Robin EY20-3C @3.7KW (5HP) Honda GX160 @@4.1kW (5.5HP) Lifan G160F  @4.1kW (5.5HP) Diesel Engine D173F @4.4kW  (6.0HP)
Starting system	Recoil starter
Packing size (L*W*H) mm	880*530*670
Net weight (KG)	80
