• Model NO.：W750
• Type：Medium-sized Loader
• Rated Power：50HP,2600rpm
• Rated Bucket Capacity：0.3m3
• Hydraulic Flow Output：50L,Min
• Transport Package：None
• Specification：2900x1400x2050mm
• Trademark：Newland
• Origin：Xuzhou City
• Production Capacity：500pieces,Year

Basic Info.

Model NO. W750 Type Medium-sized Loader Rated Power 50HP/2600rpm Rated Bucket Capacity 0.3m3 Hydraulic Flow Output 50L/Min Transport Package None Specification 2900x1400x2050mm Trademark Newland Origin Xuzhou City Production Capacity 500pieces/Year

Product Description

Description:
NewLand skid steer loaders is a new-generation products designed by ourselves that are efficient, aesthetic, flexible, safe and reliable. By adopting wheeled walking system, all-wheel drive and skid steering, our products can quickly change or hook a variety of auxiliary tools at the job site for adapting different working environments and work fields.

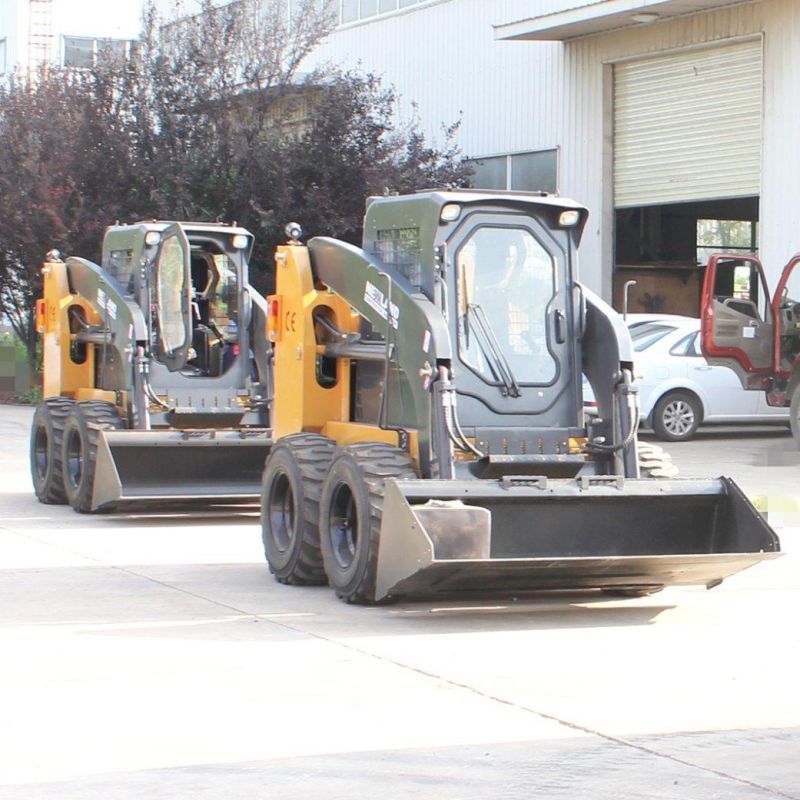

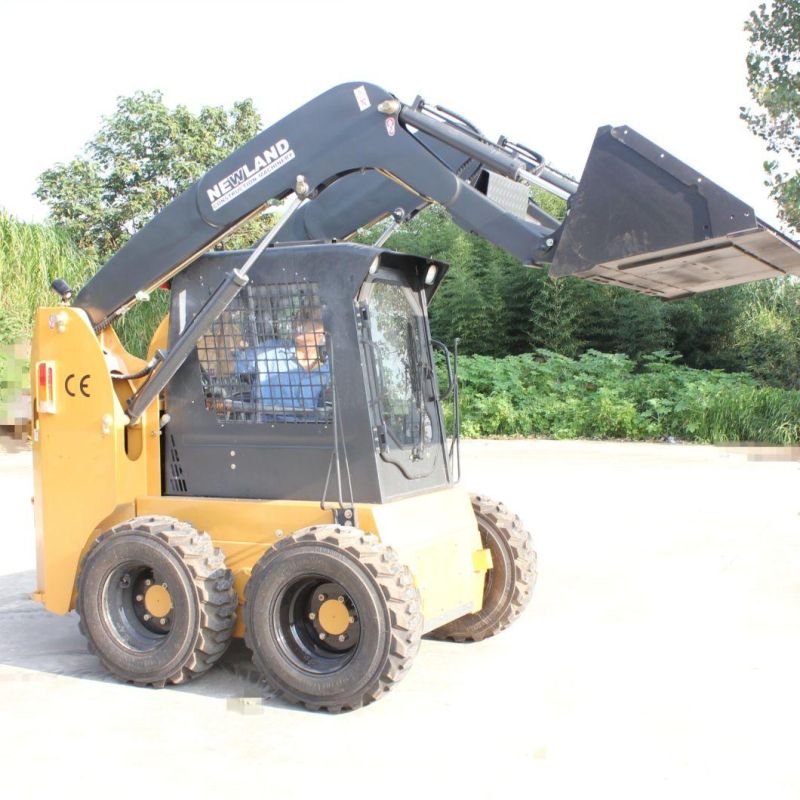

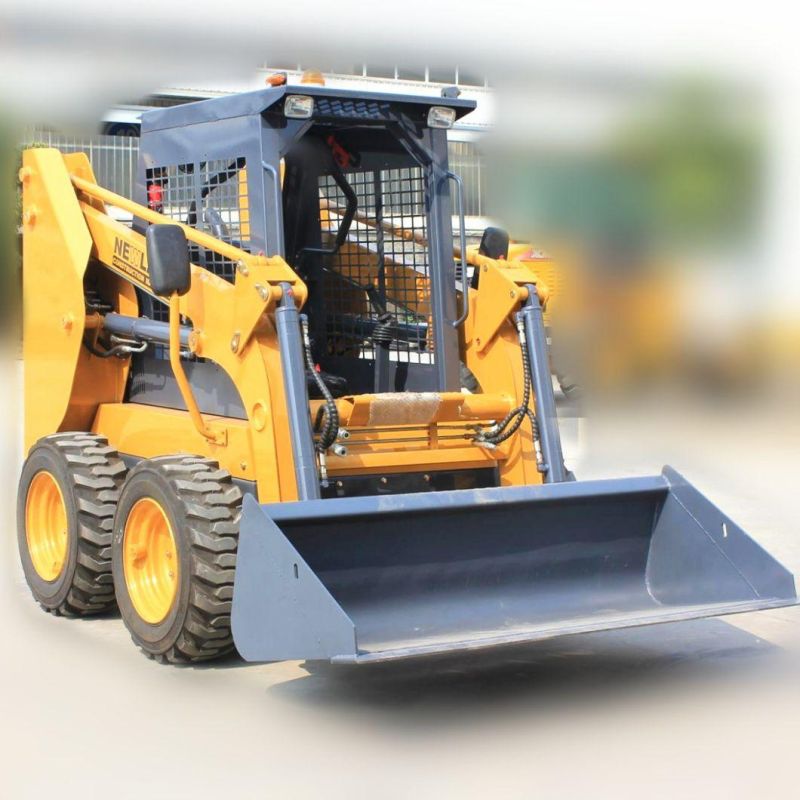

NewLand W750 Wheel Skid Steer Loader, based on a new platform designed to meet global customers' needs for road maintenance, pipeline laying, cable laying, landscaping, snow cleaning, transshipment of goods and farming, can give the operator an improved performance.

1. The overall frame structure has higher strength and good stability.
2. The components of hydraulic system are totally from international famous brands, the system has a pilot control system and hydraulic leveling, which make our products more stable and reliable and can achieve flexible operation and labor saving.
3. The engine power is strong, energy-saving and eco-friendly, it meets the requirement of the national III emission standard.
4. The cab is designed with a large angle and the rear cover can be fully opened to be operated and repaired conveniently.
5. High-intensity cab, with large space, conforming to FOPS/ROPS international safety standards is safe, reliable, and comfortable.
6. The centralized control instrument can be easily operated, and it also adopted the self-locking and inter-locking design to reduce misuse and increase safety factor.
7. Adopting double throttle control, the reason is that manual throttle is more convenient, foot throttle is more suitable for your daily operating habits.
8. Equipped with international quick hitch system for different attachments; hydraulic quick hitch joints can be matched with most manufacturers' accessories or main machine.

W750 Specifications

Rated operating capacity (kg)	500
Tipping load (kg)	1000
Bucket capacity (m3)	0.3
Operating weight (kg)	2200
Max. Travel speed (km/h)	12
Hydraulic pump flow (L/min)	50
Fuel tank capacity (L)	50
Tires	28X9-15
Overall dimensions (mm)	2900×1400×2050

Dimensions

Height at maximum extension (mm)	3300
Height to bucket hinge pin (mm)	2725
Width with bucket (mm)	1300
Track width (mm)	1080
Wheelbase (mm)	891
Ground clearance (mm)	150
Dump angle	40°
Dumping height (mm)	2050
Maximum reach (mm)	790

Engine

Maker/Model	Perkins 404D-22
Net power	35.7Kw (50HP)/2600rpm
Type	4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine
Displacement (L)	2.9

Standard
Perkins Engine:   50horsepower
Type of control:   mechanical
Totally enclosed Cab and air conditioning
Cab fitted with a heater as standard
Cryogenic launch configuration
With fans; No big flow;

Engines: adopting international famous engine brand - perkins engines, which its manufacturer have established a good business relationship with us for many years, to ensure that the machines are capable of working under various environment.

Form: all structural parts are designed and produced by ourselves, possessing aesthetic appearance and durability, which its hydraulic tank, fuel tank and chassis are integrated perfectly in the structure to fully maximize the work performance of the production.

Operation system: the operating system can choose the advanced mechanical control or the pilot control lever. Pilot control lever combining an easy and flexible control for various functions along with various types of instrument parameters can greatly improve degree of comfort for operator.

Leveling system: adopting imported machinery or hydraulic leveling system, which can not only improve the efficiency but also increase the safety factor.

Cab: full closure, big space, objects anti-falling design, anti-turnover design and 360 degree visible design along with seat safety bar can achieve a comfortable work for any physique and a precise control operation. Cab air-conditioning system can be powerful in wide environmental condition (such as scorching weather, bitter winter and excessive dust environment) by virtue of cab enclosure which is inclusive of a roof, rear window and side windows.

Maintenance: open type of the cover, rear cover, and top cover will make the production possible to be inspected in all aspects of production parts including its engine, filter and battery. in the maintenance of Safeway and maintenance without lifting stand-arm, which can efficiently save maintenance time

HCN is specialized in manufacturing construction attachments for skid steer loader, backhoe, excavator and loader. And HCN can also design and produce skid steer loader, compact loader and wheel loader. Xuzhou HCN Machinery Technology Co., Ltd has also a subsidiary brand named Newland, which is specialized in designing and producing skid steer loader, compact loader and loader.

HCN has the ability of providing clients around the world with good quality products, customized service (such as customized product, techinical analysis, product refit) and competitive price based on strong technical foundation that has been gradually formed during the past 14 years.

HCN company is located in Xuzhou city, Jiangsu Province. Xuzhou city is the capital of China's construction machinery, whose history of machinery manufacturing can be traced back to the year of 1943 (China's first crane truck and road roller). There are more than 300 large, medium and small machinery factories in the city. And Xuzhou city has some international famous manufacturers like Caterpillar, Liebherr,  Doosan, Global Casting, Kennametal, etc. In this kind of atmosphere in which HCN company immerses, the factory possesses the nearly same level with the top brand factory on product-producing process.
