Engineering & Construction Machinery

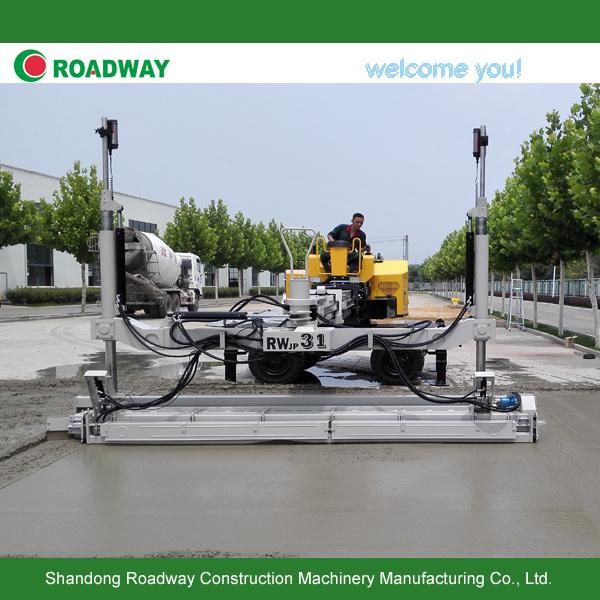

Concrete Laser Screed Boom Type Concrete Flooring Making Machine

Shandong Roadway Construction Machinery Manufacturing Co., Ltd.
  • Type:Floor Construction
  • Shotcrete Type:Wet
  • Machining Process:Paving
  • Structure:Cylinder Type
  • Productivity:200m2,H
  • Certification:CE

Base Info

  • Model NO.:RWJP31
  • Condition:New
  • Color:Yellow
  • Transport Package:Container
  • Trademark:ROADWAY
  • Origin:China
  • HS Code:84791021
  • Production Capacity:10sets,Month

Description

ModelRWJP31TypeBoom typeEngine ModelYanmar 4TNV98T-ZNLYSTypeDiesel Engine, Liquid cooled, 4 stroke, 4 cylinderPower57.3kW/2400rpmEngine oil volume10.2LFuel consumption252g/kwhRunning device Driving4 Hydraulic drive motorWheelAntiskid tyreSteeringFront Wheel/ 4-Wheel/ Crab-shaped turnOutrigger4 legs, Self-levelingWorking Speed0-8km/minDriving Speed22m²/minScreed head TypeSelf-levelingArm Length6000mmWidth3850mmPaving typeWith augerAuger forceHydraulic motorExciting force2000NVibration frequency60HzSwing Angle±45°Screed head controlRatio controlHeight of screed head560mmControl accuracy±1.5mmLaser control system Control typeMicrocomputer laser scanControl effectFlat, slope or double slopeOperation mode Chair positionRide-on forward typeForward and reverseHandle control, stepless speed walkingTelescopic armHandle control, stepless speedSteeringHydraulic intelligent controlCleaning system PowerHydraulic motorTheoretical flow20L/minThe Max pressure of inlet0.5MpaRated pressure7MPaFuel tank volume150LHydraulic oil volume150LSize and Weight Outline dimension5200×4350×3700mmWeight8200kg ModelRWJP32TypeBoom typeEngine ModelHONDA GX630TypeGasoline engine, Air cooled, 4 stroke, 4 cylinderPower20hp/3600rpmEngine oil volume1.8LFuel consumption313g/kwhRunning device Driving3 Hydraulic drive motor WheelAntiskid tyreSteeringFront Wheel/ 3-Wheel/ Crab-shaped turnOutrigger4 legs, Self-levelingWorking Speed16m2/minDriving Speed0-6km/hScreed head TypeSelf-levelingArm Length4000mmWidth2500mmPaving typeWith auger Auger forceHydraulic motor Exciting force500NVibration frequency50HzScreed head controlRatio controlHeight of screed head560mmControl accuracy±1.5mmLaser control system Control typeMicrocomputer laser scan Control effectFlat, slope or double slopeOperation mode Chair positionRide-on forward type Forward and reverseHand control, stepless speed walkingTelescopic armHydraulic intelligent controlSteeringHydraulic control Cleaning system PowerHydraulic motor Theoretical flow20L/minThe Max pressure of inlet0.5MpaRated pressure7MPaFuel Volume60LHydraulic oil volume60LSize and Weight Outside size(Working)3800×2800×1700mmWeight2250kg Concrete Laser Screed Boom Type Concrete Flooring Making Machine
