Jzc500dh Diesel Hydraulic Concrete Mixer with Self Loading
HANGZHOU TOB ENGINEERING MACHINERY CO., LTD.- Type:Concrete Mixer
- Shotcrete Type:Semi-Dry
- Machining Process:Welded Molding Machine
- Structure:Rotor Type
- Productivity:25m²,h
- Feeding Height:1370mm
Base Info
- Model NO.:JZC500DH
- Vibrating Amplitude:0.8mm
- Certification:ISO9001: 2000, CE, Coc
- Condition:New
- Color:Orange
- Loading Capacity:800L
- Bags of Cement Per Batch:3 Bags Cement
- Drum Thickness:10mm
- Drum Size:1588*2070mm
- Drum Rotation Speed:13rpm
- Max.Size of Aggregate:80mm
- Tyre Size:6.50-16
- Discharging Size:500L
- Overall Size:3600*2400*3200mm
- Packing Size:2500*2200*2500mm
- Engine Option:Diesel Engine with 22 HP
- Container Loading Plan:2 Sets Per 20gp, 5 Sets Per 40hq
- Color Option:Yellow or Green
- Transport Package:Packed with Bubble Wrap Outside
- Specification:800l
- Trademark:TOBEMAC
- Origin:Zhejiang, China
- HS Code:84743100
- Production Capacity:30PCS,Month
Description
Basic Info.
Model NO. JZC500DH Vibrating Amplitude 0.8mm Certification ISO9001: 2000, CE, Coc Condition New Color Orange Loading Capacity 800L Bags of Cement Per Batch 3 Bags Cement Drum Thickness 10mm Drum Size 1588*2070mm Drum Rotation Speed 13rpm Max.Size of Aggregate 80mm Tyre Size 6.50-16 Discharging Size 500L Overall Size 3600*2400*3200mm Packing Size 2500*2200*2500mm Engine Option Diesel Engine with 22 HP Container Loading Plan 2 Sets Per 20gp, 5 Sets Per 40hq Color Option Yellow or Green Transport Package Packed with Bubble Wrap Outside Specification 800l Trademark TOBEMAC Origin Zhejiang, China HS Code 84743100 Production Capacity 30PCS/MonthProduct Description
1.Why choose us?
TOBEMAC----CHINA Leading Construction Machinery Manufacturer- We are manufacturer of Concrete Mixers Since 1991.
- We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015

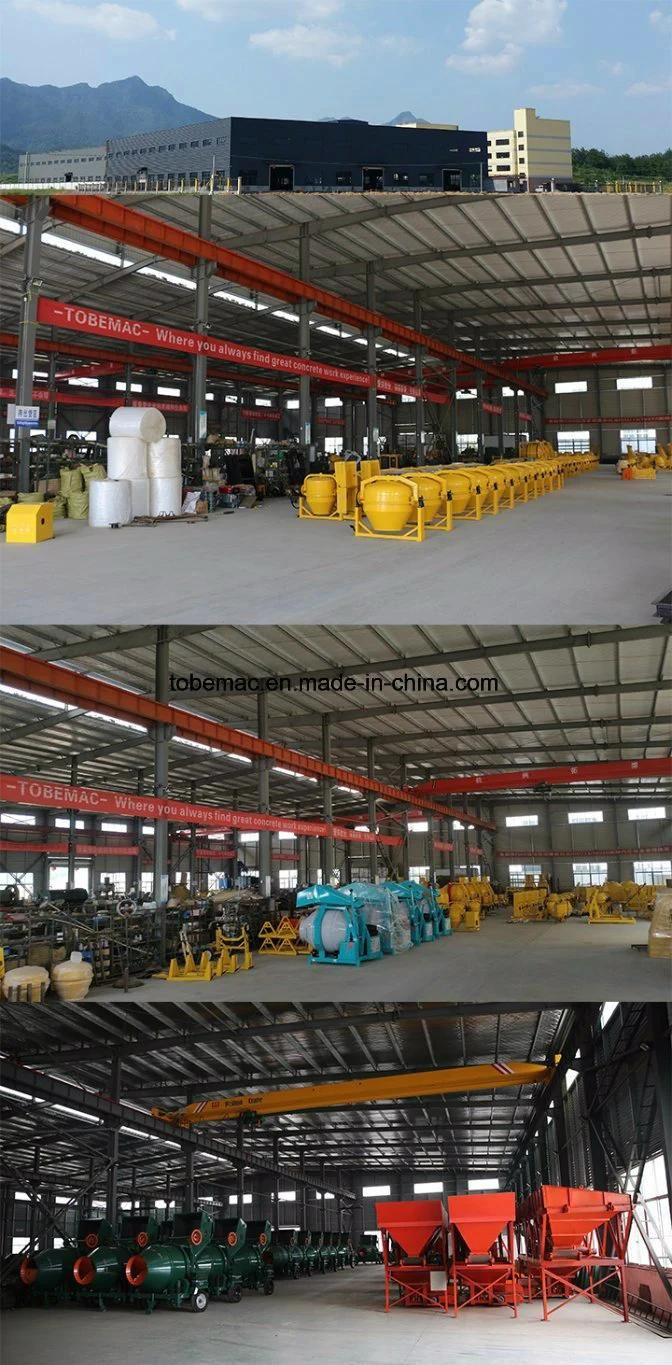

- We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery.
- Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc.
- Our company is near the NINGBO port , you are very welcome to come to our company.
2.Products Specification:
Model | JZC500-DH |
Discharging Capacity | 500 L |
Loading Capacity | 800 L |
Productivity | 18-22 m3/h |
Bags of Cement per Batch | 3 Bags Cement |
Drum Thickness | 8 mm |
Engine Option | Water-cooled Diesel Engine 22HP |
Displacement of Hydraulic Pump | 25 mL/r |
Drum Rotation Speed | 13RPM |
Max. Size of Aggregate | 80 mm |
Tyre Size | 7.50-16 |
Total Weight | 2100 kg |
Overall Size (L×W×H) | 3150×2200×3200 mm |
Packing Size (L×W×H) | 2500×2200×2500mm |
Container Loading Plan | 2 Sets Per 20GP, 5 Sets Per 40 HQ |
We are leading factory with almost 30 years in machinery export business, engoy an excellent reputation in circle of construction equipment. Also, we participate in the Canton Fair every year. We sincerely invite customers who wish to have a long-term cooperation to visit our factory and have business discussion.
To give you a general idea of our products, we are enclosing our catalog for your reference to your email box after your permission. For more information about our company and products, you may also visit our web site: tobemac.en.made-in-china.com
Note: Best price according to quantity and engine option. Pls contact us for more information.
3.Product Application

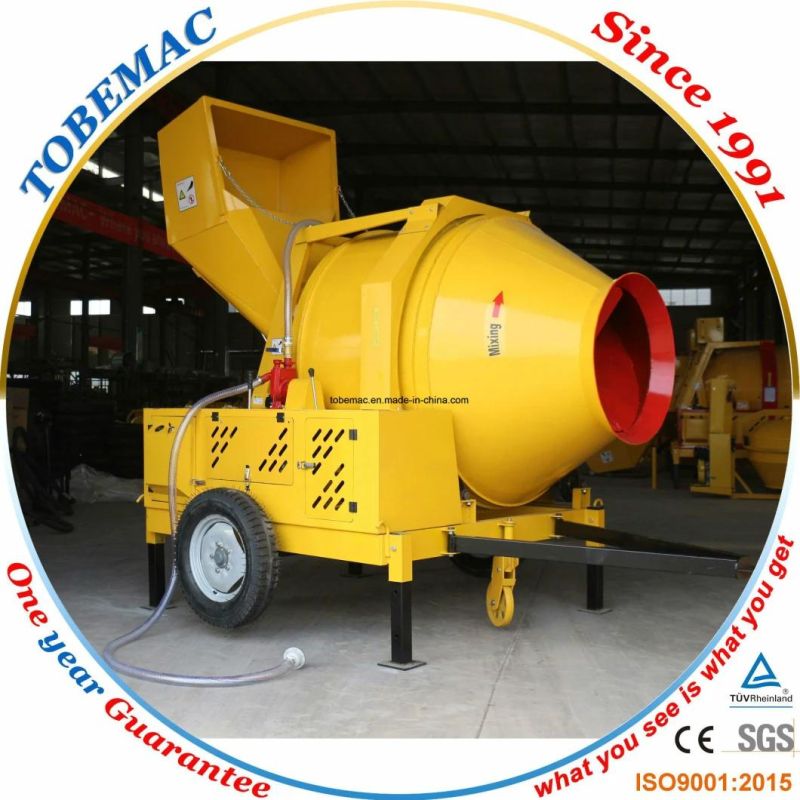

JZC500-DH Concrete Mixer with Diesel Engine Power and Hydraulic Tipping Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The JZC500-DH Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
4.Main Features
1) Chassis- mounted Big Water Tank
2) Steel Flexible Guide Wheel
3) Robust and Strong Trailing Rod
4) Hydraulic Tank with Large Volume
5) China TOP Brand CHANGFA Powerful Diesel Engine
6) Middle Situated and Bolt Connected Design of Grand Gear Ring.

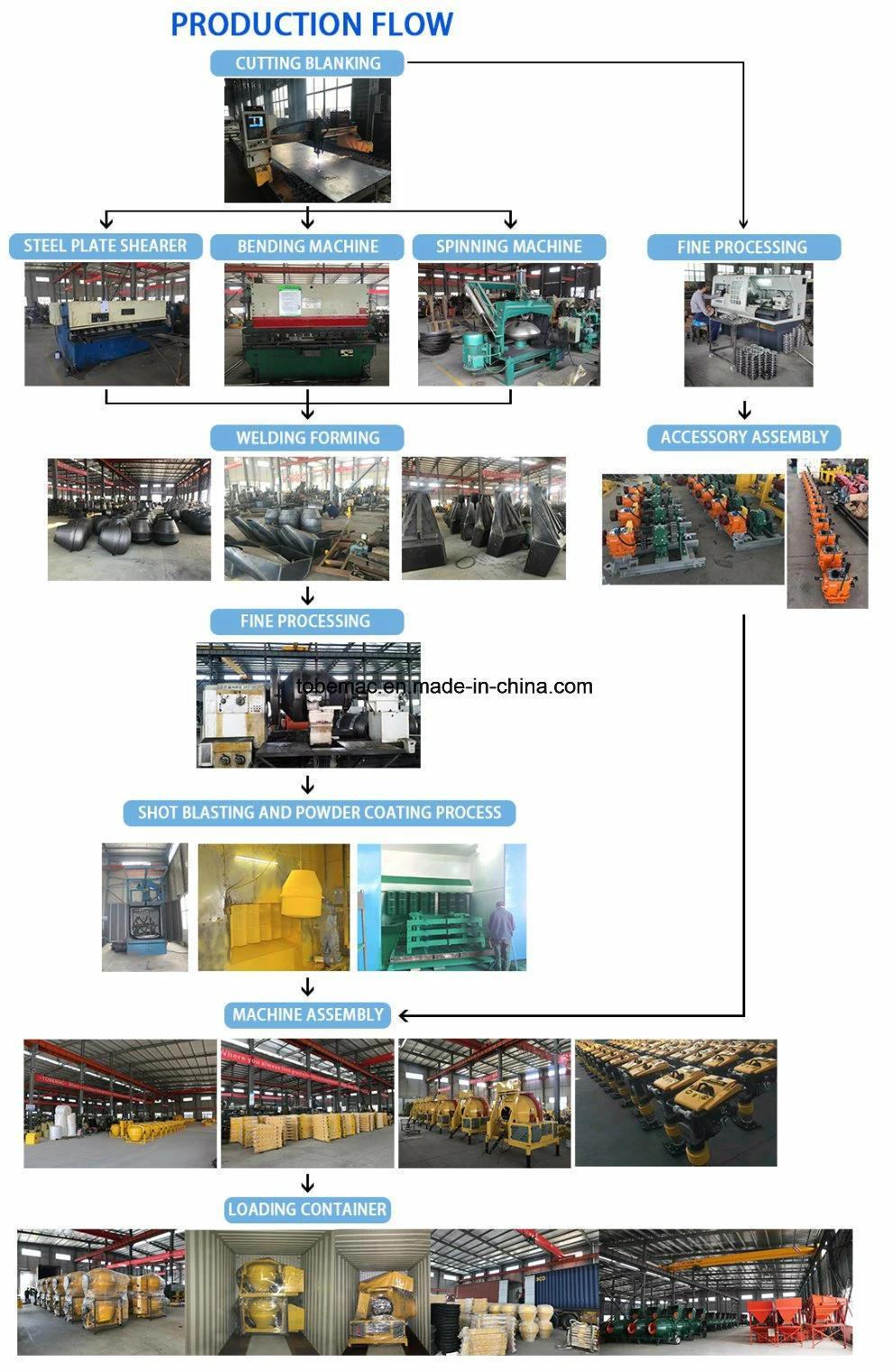

5.Production Flow
6.Packaging&Delivery
Size | 2500 (L) * 2200 (W) * 2500(D) mm |
Weight | 2100 kg |
Packaging Details | The normal package is by big PLASTIC BAG . 2 Sets Per 20GP, 5 Sets Per 40HQ |
7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
