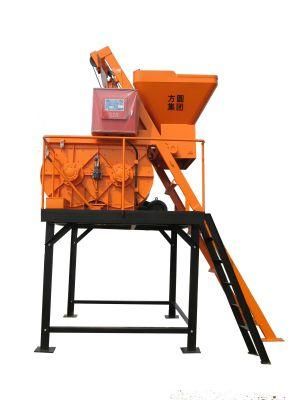

Double Horizontal Shaft Forced Type Concrete Mixer
FANGYUAN GROUP CO., LTD.- After-sales Service：Oversea
- Warranty：One Year
- Type：Concrete Mixer
- Productivity：25m²,h
- Certification：CE, Eac
- Condition：New
Base Info
- Model NO.：JS500
- Color：Orange
- Transport Package：4485*3030*5280
- Specification：4485*3030*5280
- Trademark：FYG
- Origin：China
- HS Code：8474310000
- Production Capacity：1000 Pieces a Year
Description
Basic Info.
Model NO. JS500 Color Orange Transport Package 4485*3030*5280 Specification 4485*3030*5280 Trademark FYG Origin China HS Code 8474310000 Production Capacity 1000 Pieces a YearProduct Description
The JS500 series of ready-mix concrete is a double horizontal shaft forced mixer which can mix dry concrete, plastic concrete, flowing concrete, light aggregate concrete and various kinds of mortar. It is widely used.| item | unit | JS500-1.5 | JS500-2.7 | JS500-3.8 |
| Charging | L | 800 | 800 | 800 |
| Output | L | 500 | 500 | 500 |
| Nominal output/h | m3/h | ≤25 | ≤25 | ≤25 |
| Tatal power | kW | 26.75 | 26.75 | 26.75 |
| Aggregate size(pebble/macadam) | mm | 80/60 | 80/60 | 80/60 |
| Speed of mixing blade | r/min | 35 | 35 | 35 |
| Mixing blade | Qty. | 2×7 | 2×7 | 2×7 |
| Mixing moter power | kW | 18.5 | 18.5 | 18.5 |
| Lifting motor power | kW | 7.5 | 7.5 | 7.5 |
| Length of steel wire rope | M | 14m | 17m | 22m |
| Water pump power | kW | 0.75 | 0.75 | 0.75 |
| Hopper lifting speed | m/min | 18 | 18 | 18 |
| Dimension (L×W×H) | mm | 4485×3030×5280 | 5200×3140×6480 | 6400×3160×8580 |
