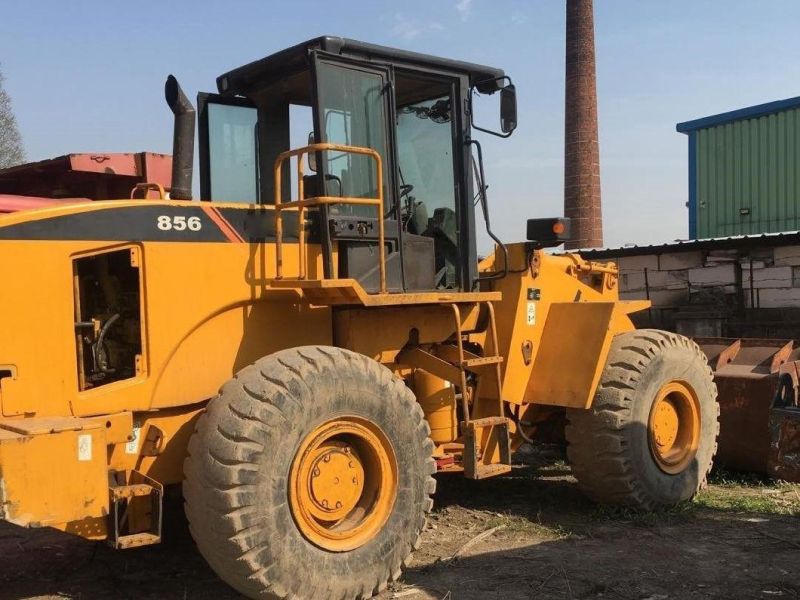

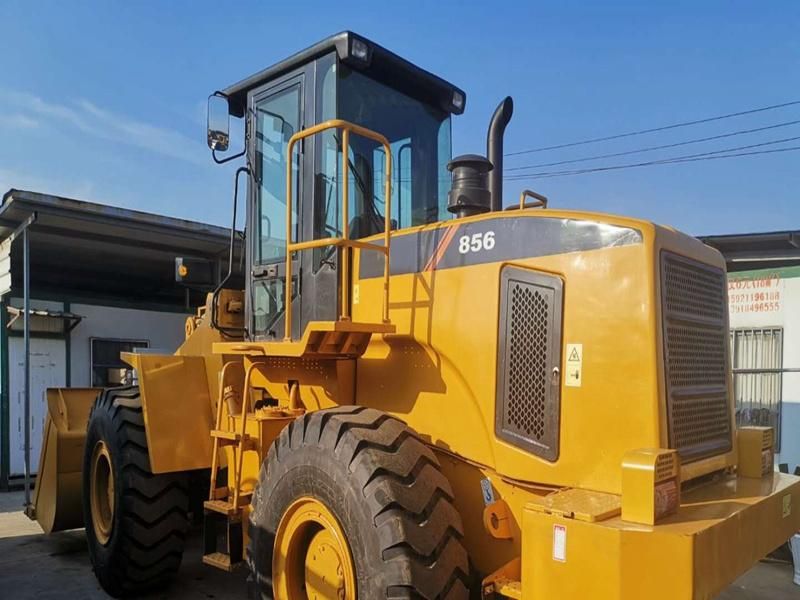

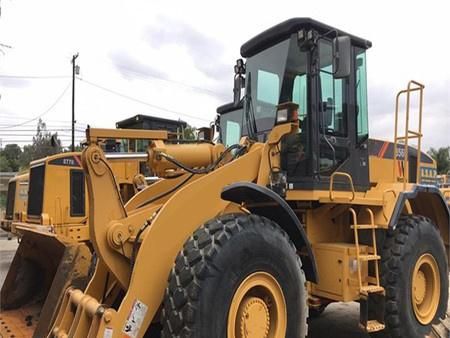

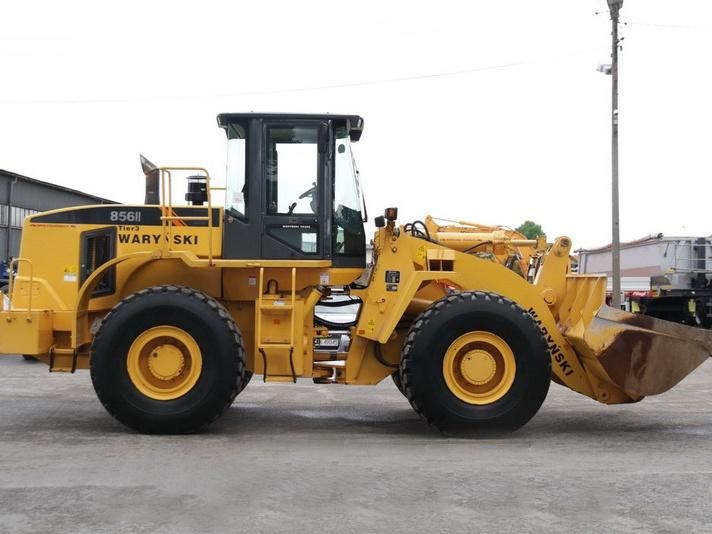

Chinese New Hot Sale 5 Ton Wheel Loader High Quality with Low Price 856h
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
Base Info
- Model NO.：856H
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Power：162kw
- Bucket Capacity：3cbm
- Machine Weight：17250kg
- Bucket Breakout Force：165kn
- Dump Reach：1126mm
- Width Over Tires：2750mm
- Specification：8357*2750*3450 mm
- Origin：China
- HS Code：8501109190
- Production Capacity：200
Description
Operating weight
17000~19300 kg
Standard bucket
3.0 m³
Gross power
162 kW (220 hp) @ 2200 rpm
Net power
149 kW (202 hp) @ 2200 rpm
Rated load
5000 kg
Total cycle time
10 s
Tipping load full turn
10800 kg
Bucket breakout force
172 kN
Dump clearance, full height discharge
3100 mm
Dump reach, full height discharge
1126 mm
Emissions
EPA Tier 2 / EU Stage II
Cooling system
Charge air cooling
Length with bucket down
8357 mm
Width over tires
2750 mm
Cab height
3450 mm
Turning radius, outside of tire
6205 mm
Bucket capacity
2.6~5.6 m³
General Purpose
3.0 m³
Light material
4.2, 5.2, 5.6 m³
Heavy rock
2.7 m³
