• Model NO.：TT-FCP180-I
• Origin：China
• Production Capacity：1000units,Month

EngineROBIN 6.0HP gasoline enginePaint pumpauto-shuttle plunger pumpDelivery Rate9L/min (single)Suitable TypeSuitable for solvent-based paint and water-born paintMarking line width100-400mm (adjustable)Spray gun Number2 hand spray guns (one of them is 6m longer)Dimensions1750mm(L) x1000mm(W) x 1250mm(H)Weight150Kg

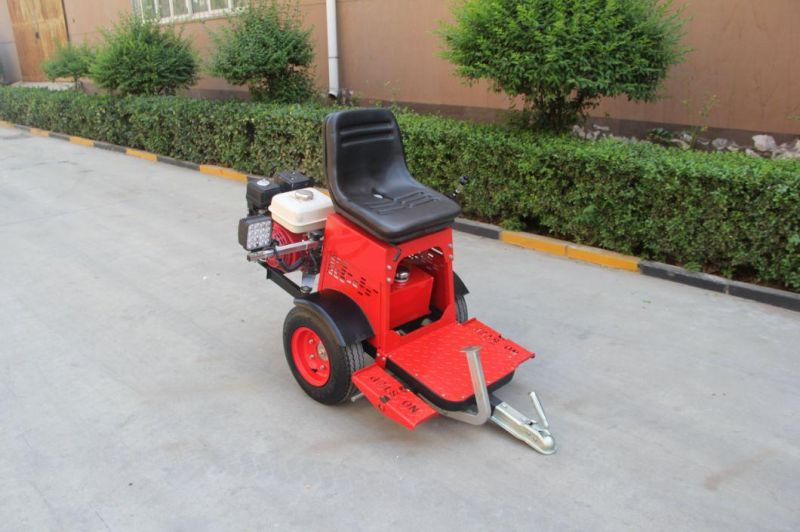

TT-ZT-IIF Roll Booster

Technical Data

EngineHonda or Robin 6.0HP gasoline engineDrive Unitoriginal imported infinitely variable transmissionDrive Speedforward 0-4km/h, backward 0-3.2km/hHill-climbing Ability15°Suitable Equipmenthand-pushed type equipmentOverall Dimension1400mm(L) x 720mm(W) x 108mm(H)Weight140 Kg

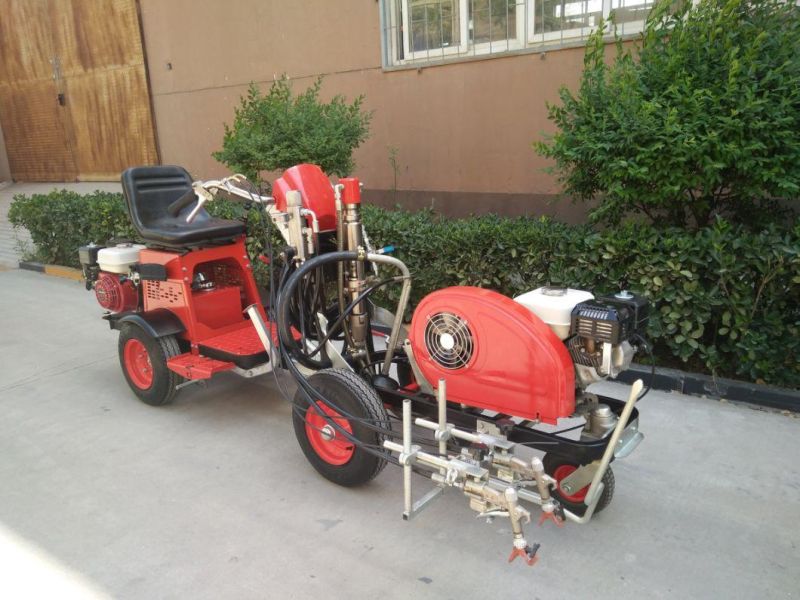

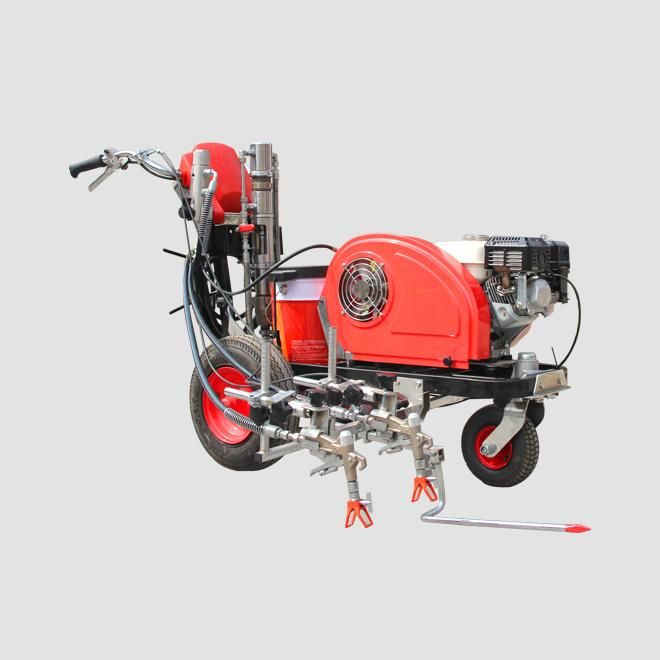

TT-SCP90-I Hand-pushed Cold Paint and Cold Plastic Road Marking Machine
+ TT-ZT-IIF Roll Booster



TT-FCP180-I Stand driving type cold paint road marking machine


Cold plastic road marking paint machine
full automatic road line marking equipment for two component paints
 Technical Data:Engine13HP Gasoline EngineDriving Speed0-22km/hClimbing slope15°Material tank capacity2x45LPaint pump flow9L/minWorking pressure10-15MpaLine Width50-500mmSpraying gun numberTwo pneumatic spraying gunDimension2100x1400x1350mmWeight650kg

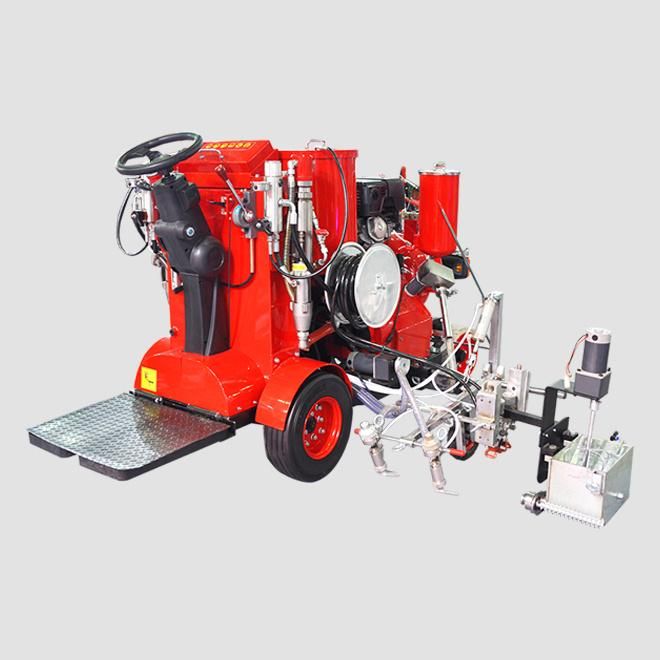

TT-C01-RKJ200

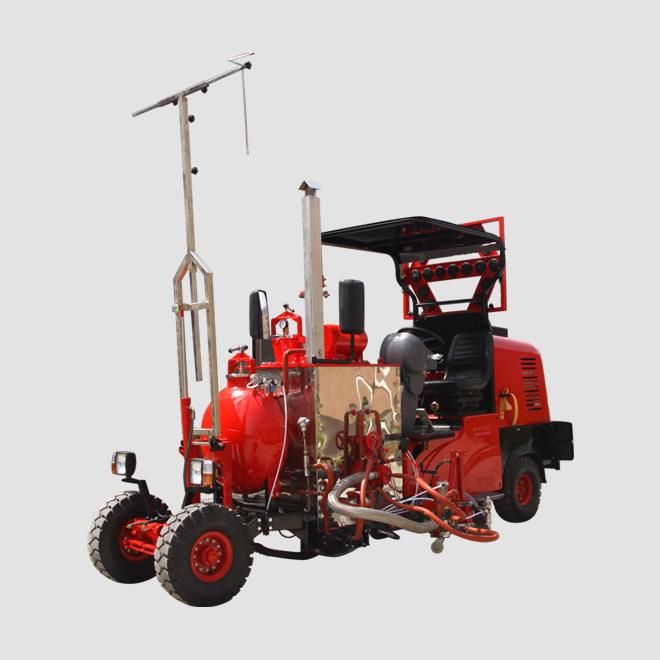

Driving Type Thermoplastic Spraying-Extrusion-screeding Road Marking Machine

Technical Data

Marking MethodExtrusion, Spraying or Screeding (change spray gun, extrusion or screeding device)Material Container Volumematerial container (pressurized) 200Lglass bead container50LAir Compressor Delivery Rate1m³/minHeating Methodenergy efficient LPG, infrared burner or fuelHeat Preservation Methodheat preservation cotton, or heat transfer oil with heat preservation cottonTemperature Control Methodauto temperature controlMarking Line Width

50/100/150/200/250/300, optional for standard equips of 150mm convex box;

Extrusion 100/150/200/250/300mm, optional for standard equips of 200mm;

spraying 50-300mm, adjustable;

Overall Dimension4000 mm(L)×1900 mm(W)×2100 mm(H)

Chassis Specification

Engine Power22.5KW or 37KW four cylinders water-cooled diesel engineDrive Unithydraulic drive infinitely variableDriving Direction & Speedforward or backward, 0-22km/hGlass Bead Container Volume50LWeight2-3T
TT-ZCP200 Truck-mounted Cold Paint Road Marking Machine

Technical Data

EngineHonda 13HP gasolineMarking Methodhigh pressure airless sprayingMaterial Container Volume2×110L(Optional)Air Compressor Air Output0.366m³/minDelivery Rate15-30L/minPump Control Methodoil cylinderMarking Line Width50-500mmSpray Gun Number2 automatic spray gunGlass Bead Dispensing Typegravitational flow or sprayableOverall Dimension1200mm(L) × 780mm(W) × 1250mm(H)Mixing system (optional)Single bucket: 120L
Double bucket: 2X120L
Engine: Honda 6HP gasoline engine
Air compressor: 0.72m³/minWeight305Kg

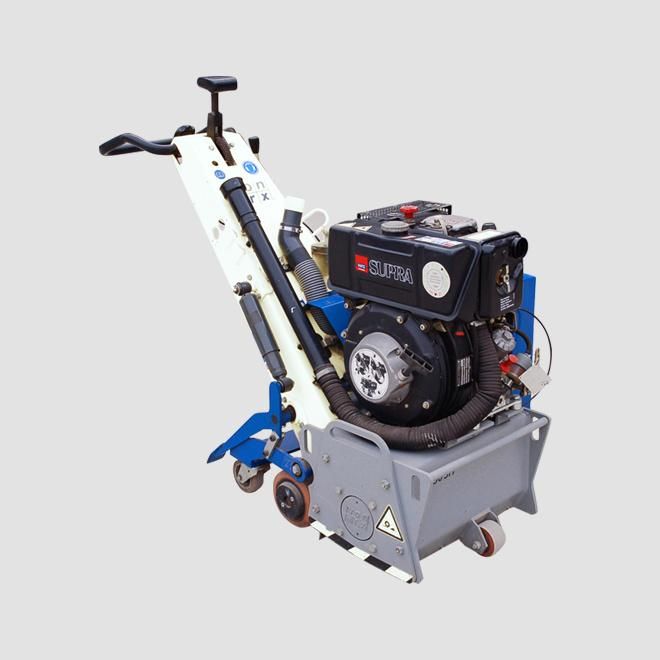

Pavement Marking Remover

Technical Data

EngineHonda or Robin 18.0HP gasoline engineDrive Unithydraulic drive, infinitely variable, 0-3.0km/h (off-work condition)Milling Headcarbide bladeWorking Methodmilling planer typeMilling Width100-300mmMilling Depth0-10mm (adjustable)Main Function

executing rumble, remove thermoplastic marking, mill road water burst & inclusions, and sculpture concrete road surface

Overall Dimension1350mm(L) x 555mm(W) x 1100mm(H)Weight275 Kg
