• Outlet Size：75mm
• Max.Diameter of Flowed Particle Flowed：62mm
• Transport Package：Wooden Case
• Specification：Overall dimension: 4180*5200
• Origin：Jiangsu Changzhou
• HS Code：8430313000
• Production Capacity：5000 Sets Per Year

Basic Info.

Outlet Size 75mm Max.Diameter of Flowed Particle Flowed 62mm Transport Package Wooden Case Specification Overall dimension: 4180*5200 Origin Jiangsu Changzhou HS Code 8430313000 Production Capacity 5000 Sets Per Year

Product Description

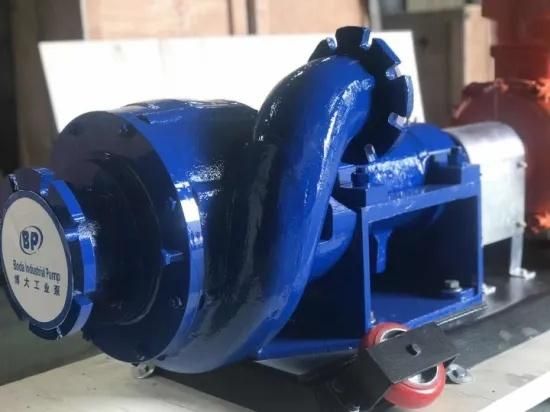

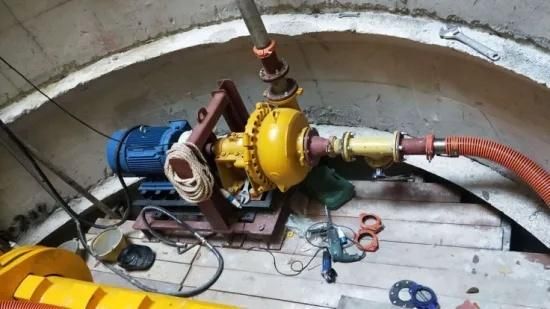

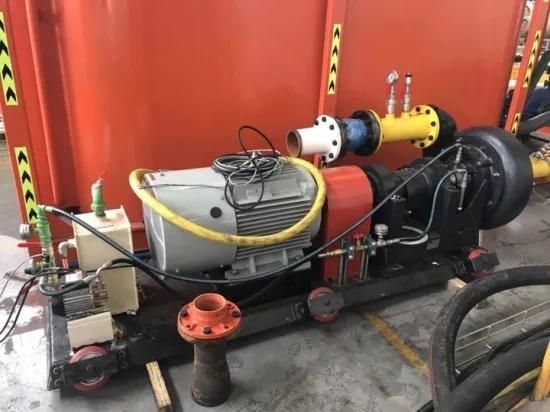

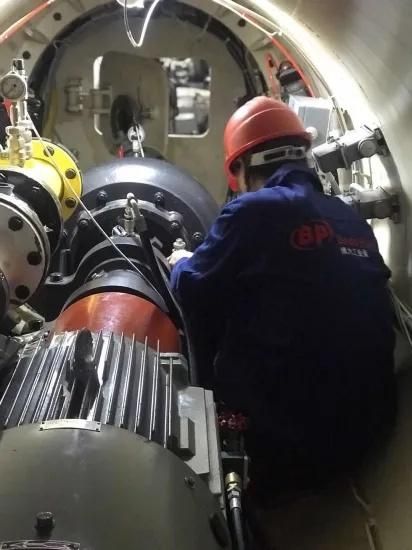

 Type TZS series pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed to handle high abrasive, high density slurries in tunnel shield and pipe-jacking.

Product Feature:

-High abrasion metal wet end parts, long service life.
-Wide options for impeller(special designed large channel impeller to meet very big particle.
-Various types of pump seals to suit different working condition,no leakage.
-Discharge branch can be positioned at intervals of 45 degrees
-Can be installed in multistage series

Performance Table:

Type	Capacity (l/s)	Head (m)	Speed (r/min)	Efficiency (%)	NPSHr (m)	Inlet Size (mm)	Outlet Size (mm)	Max.Diameter of flowed particle (mm)
75TZS-PD	24-55	9-52	1000-2200	30-71	4-6	100	75	62
100TZS-PE	40-100	12-56	800-1600	30-65	5-8	150	100	44
150TZS-PR	100-230	10-61	500-1140	30-72	2-9	200	150	63
200TZS-PST	65-380	11-82	400-1000	45-71	2-10	250	200	80
250TZS-PST	75-500	10-84	300-950	60-80	3-8	300	250	86
300TZS-PST	170-770	13-81	300-700	60-77	3-10	350	300	90
350TZS-PTU	380-850	11-63	250-550	60-82	4-10	400	350	135
450TZS-PTU	700-1500	13-57	200-400	75-85	5-10	500	450	130
