• Model NO.：ZDB35CL
• Specification：Standard
• Trademark：ANT
• Origin：Jiangsu, China
• Production Capacity：500 Units,Month

Basic Info.

Model NO. ZDB35CL Specification Standard Trademark ANT Origin Jiangsu, China Production Capacity 500 Units/Month

Product Description

ZDB35CL China new design high quality construction machinery backpack concrete vibrator

Air bubbles in wet concrete are detrimental to the strength of concrete. It is necessary to remove them from the concrete before the mixture hardens. Our vibratory poker is designed to effectively performed to expel the entrapped voids and compact the concrete.

Based on pendulum motion, the high rotation of drive unit transmits as high as 9, 000 vibrations per minute into the poker head through the flexible shaft, ensures maximum compaction for the best possible finish.

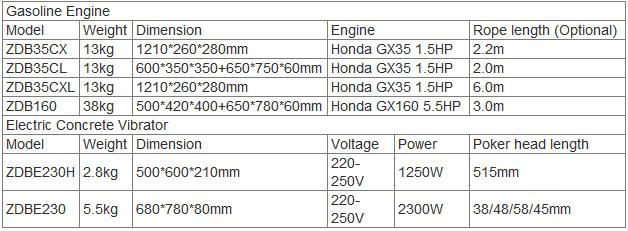

Specification

Model	ZDB35CL (backpack)
Engine	Honda GX35 1.5HP
Weight	13KG
Poker head diameter	32/35/38/45mm
Engine speed	6500rpm
Vibration frequency	9000vil/min
Rope length	2.0m
Dimension	600*350*350+650*750*60mm



Features
1. Powered by 4 stroke Honda engine, No oil/gasoline mixture, low noise and low emission petrol engine.
2. Optimal frequency to relieve air and voids in concrete mix.
3. Comfortable and lightweight backpack.
4. Engine base is swivel-designed both for right-and left-handed users.
