• Model NO.：SD16F
• Wrecker Truck：Pump Truck
• Concrete Mixer Truck：Mixer Plant
• Specification：5345*3388*3032mm
• Trademark：SHANTUI
• Origin：China
• Production Capacity：100 Per Month

Basic Info.

Model NO. SD16F Wrecker Truck Pump Truck Concrete Mixer Truck Mixer Plant Specification 5345*3388*3032mm Trademark SHANTUI Origin China Production Capacity 100 Per Month

Product Description

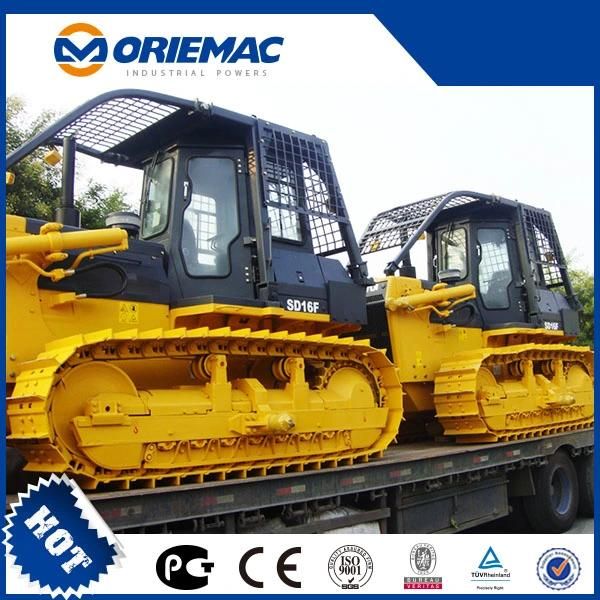

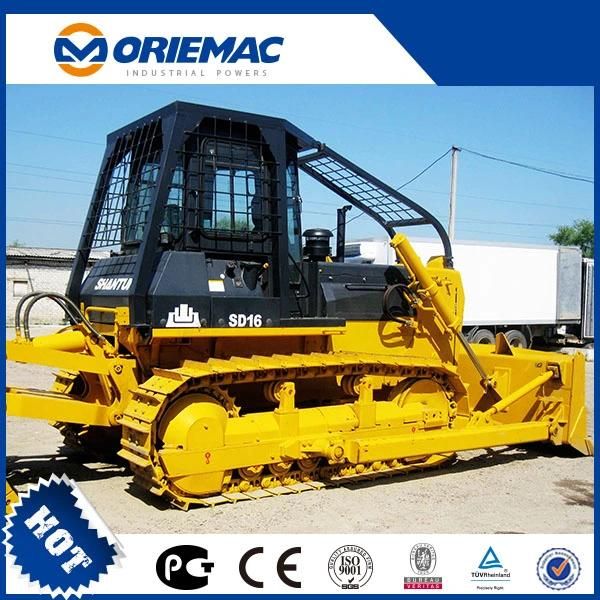

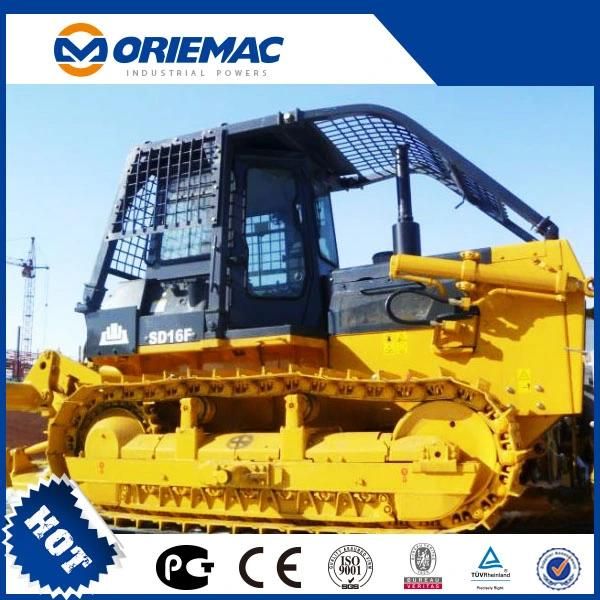

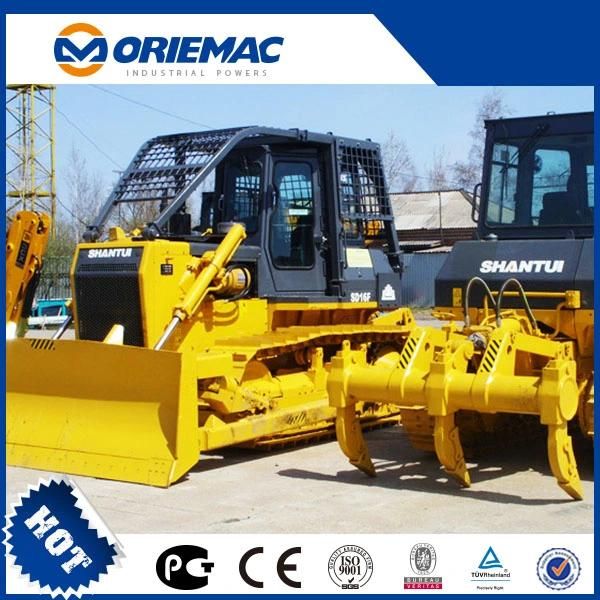

2017 new price 4.5m3 Shantui SD16/SD16F mini Bulldozer used sale


ENGINE

Model........................…....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower....................120kW
Rated revolution.........................1850r/min
Cylinder number-bore×stroke................6-126×130mm
Piston displacement...............…...9.726L
Min.fuel consumption.....................214g/KW.h
Max. torque.....................…....764N.m



UNDERCARRIAGE SYSTEM
Type................................Splayed beam suspended structure of equalizer
Carrier rollers(each side)...............….2
Track rollers(each side)..................6
Track type.................................Assembled,single-grouser
Width of track shoes..................…..510mm
Pitch...............................203.2mm
OVERALL DIMENSION
Straight-tilt 5410×3388×3032mm
