• Model NO.：JCC303
• Certification：ISO9000
• Condition：New
• Fuel：Diesel
• Engine Type：4 Stroke
• Volume：<10000L
• Payload：3t
• 0perating Mass：3000
• Static Linear Load(F/R)：120,153
• Vibration Amplitude：0.5
• Vibration Frequency：50
• Centrifugal Force：32
• Max. Travel Speed：7.8
• Transport Package：by Sea Required
• Specification：ISO
• Trademark：kudat
• Origin：China
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. JCC303 Certification ISO9000 Condition New Fuel Diesel Engine Type 4 Stroke Volume <10000L Payload 3t 0perating Mass 3000 Static Linear Load(F/R) 120/153 Vibration Amplitude 0.5 Vibration Frequency 50 Centrifugal Force 32 Max. Travel Speed 7.8 Transport Package by Sea Required Specification ISO Trademark kudat Origin China Production Capacity 50, 000 PCS/Year

Product Description

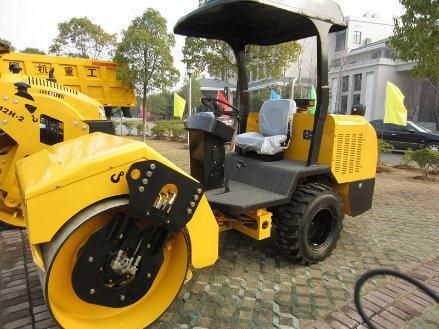

The tandem vibratory rollers are small-size tandem vibratory roller, applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

Feature:
1. Adopt ZN385Q/ZN390Q engine manufactured by Changchai Co., Ltd. With good starting performance.
2. The rear-drum drive with side gear transmission and vibration in the front drum.
3. The front and rear frame articulated and power steering; Fork-type drum brackets with more than 600mm drum-side clearance.
4. The gearbox uses Japanese technology with easy gearshift; And three travel speeds posses good compaction and fast transportation.
5. Platform trailer as option.
6. Two the state patents.

Model	JCC303	JCC204
0perating mass	3000	4000
static linear load(F/R)	120/153	150/184
Vibration amplitude	0.5	0.5
Vibration frequency	50	50
Centrifugal force	32	39
Max. travel speed	7.8	8
Gradeability	20	20
Turning radius	4500	6000
Drum width	1100× 780	1200× 900
