China Top Quality 16ton Single Drum Mechanical Operate Xs163j Tandem Vibratory Roller
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Tire Grind
- Compaction Depth：25cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：XS163J
- Travel Speed：25cm,s
- Centrifugal Force：27KN
- Certification：CE
- Condition：New
- Product Name：China Top Quality 16ton Single Drum Mechanical Ope
- Engine Model：Sc4h115.4G2b
- Rated Power：103kw
- Dimension(Lxwxh)：6150X2300X3200mm
- Total Weight(Standard)：16000kg
- Max. Gradeability：30%
- Working Hydraulic Pressure：18MPa
- Transport Package：Nude
- Specification：6220*2340*3200MM
- Trademark：ORIEMAC
- Origin：Xuzhou
- Production Capacity：100unit,Month
Description
Basic Info.
Model NO. XS163J Travel Speed 25cm/s Centrifugal Force 27KN Certification CE Condition New Product Name China Top Quality 16ton Single Drum Mechanical Ope Engine Model Sc4h115.4G2b Rated Power 103kw Dimension(Lxwxh) 6150X2300X3200mm Total Weight(Standard) 16000kg Max. Gradeability 30% Working Hydraulic Pressure 18MPa Transport Package Nude Specification 6220*2340*3200MM Trademark ORIEMAC Origin Xuzhou Production Capacity 100unit/MonthProduct Description

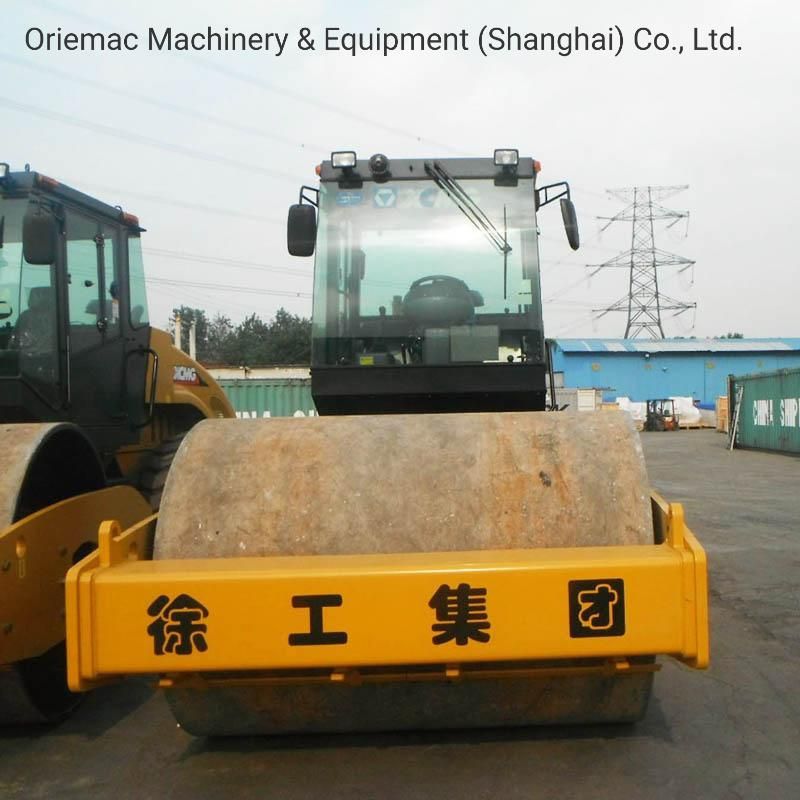

China hot XS163J rubber buffer road roller for sale
XS163J full-hydraulic single-drive vibratory roller is more comfortable to maneuver with superior compaction performance and efficiency. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.
Specifications:
| Item | Specification | Unit |
| Engine model | SC4H115.4G2B | |
| Rated power | 103 | kW |
| Dimension(LxWxH) | 6150×2300×3200 | mm |
| Total weight(Standard) | 16000 | kg |
| Forward speed | 2.93-12.2 | km/h |
| Reverse speed | 2.93-5.76 | km/h |
| Max. gradeability | 30 | % |
| Working hydraulic pressure | 18 | MPa |
| Maximum working weight | 16000 | kg |
| Min. turning radius | 6800 | mm |
| Min. ground clearance | 440 | mm |
| Compaction width | 2130 | mm |
