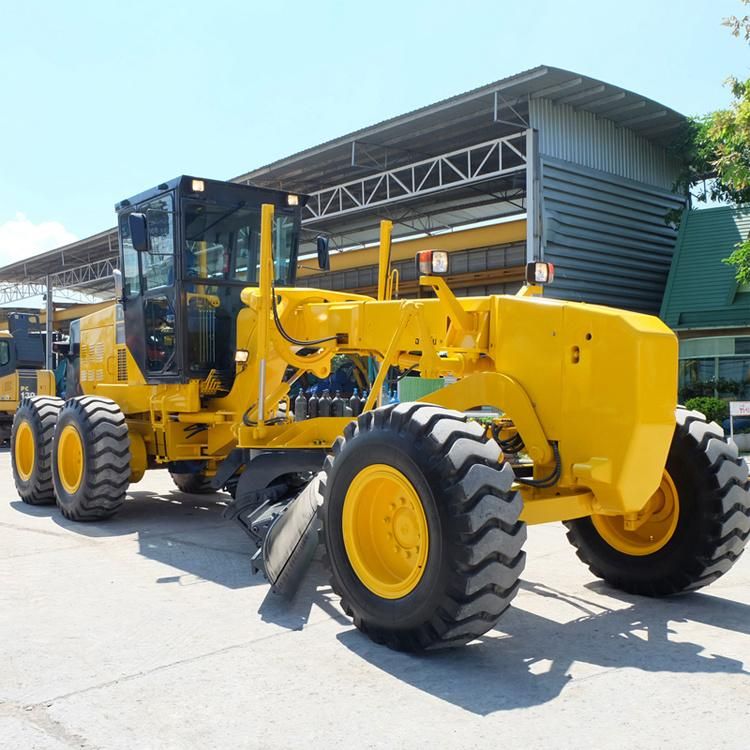

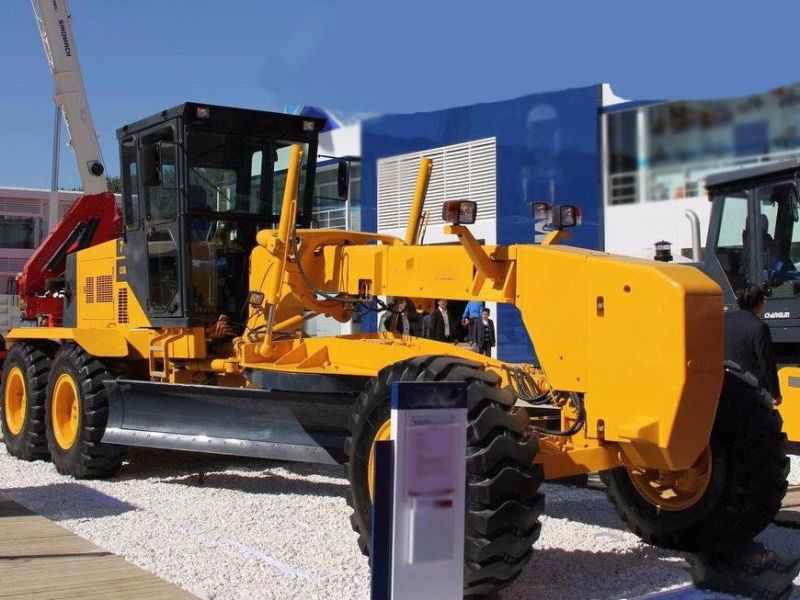

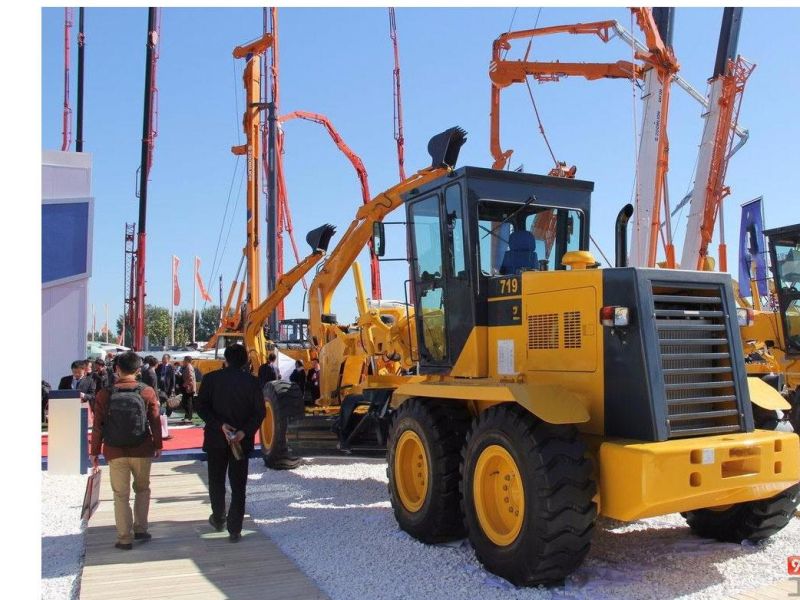

190HP Motor Grader China Motor Grader with The Best Price 719h

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：1 Year
  • Certification：ISO, CE
  • Condition：New
  • Application：Construct Work
  • Transmission：Hydraulic

Base Info

  • Model NO.：719H
  • Walking Mode：Wheeled
  • Type：Small Grader
  • Rated Power/Speed：143,2200rpm
  • Total Weight：16000kg
  • Max Grading Depth：535mm
  • Wheel Base：6100mm
  • Maximum Lift Height：450mm
  • Specification：8630*2600*3370mm
  • HS Code：8501109190
  • Production Capacity：200

Description

DescriptionUnitParameter valueRated power/speedkW/rpm143/2200Overall dimension (standard) 9235*2600*3370Total weight (standard)kg16000Tire specification 17.5-25-12PRGround clearance (front axle)mm610Treadmm2120Min. specific fuel consumption g/Kw.h230Wheel base mm6100Max lifting height mm450Max grading depthmm535Min. turning radius mm7400Total exhaust of cylinder L10.45Max. Torque (N.M)/rpm748/1400 Gear shift position   6 Forward and 3 reverse gears Size of tire  17.5-25-12PR(standard) Pivot angle frame  ±26°Max turning angle(front wheel) ±49°Oscillating angle of front axle  System pressure  MPa 17.5Fuel tankL340Engine lubricating oil L27Oil for converter and gear boxL28Oil for hydraulic system L90Oil for driving rear axlesL18Tandem box L90
