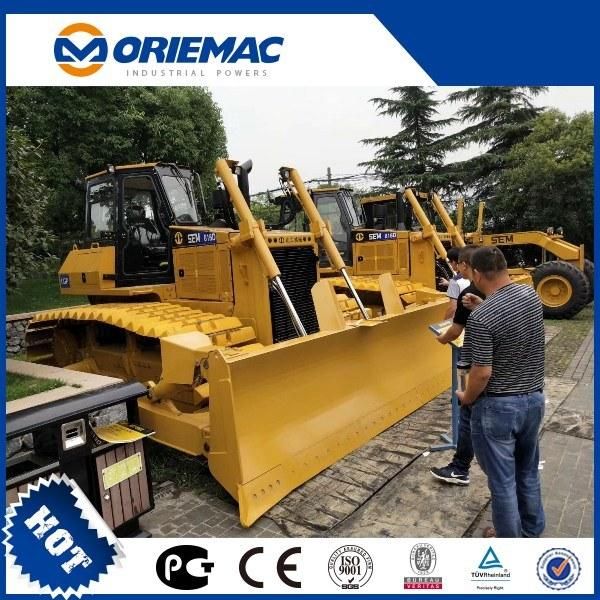

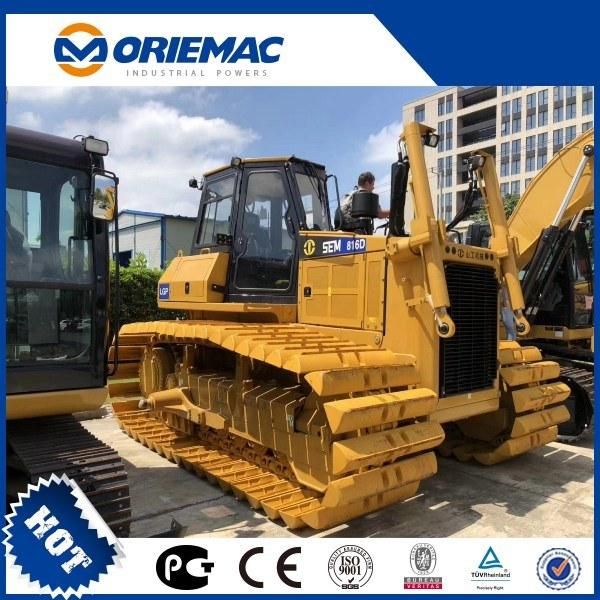

5% off Sem Bulldozer 17 Ton 190HP Crawler Bulldozer Sem816D

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：on Site Service
  • Warranty：One Year
  • Type：Universal Type
  • Transmission：Hydraulic Transmission
  • Walking Mode：Crawler
  • Load and Unload Method：Front Discharge

Base Info

  • Model NO.：SEM816D
  • Engine Power：74~147kw
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Color：Yellow
  • Product Name：Sem Bulldozer
  • Operating Weight：17230kg
  • Model Engine：Weichai Wd10g178e25 131kw
  • Blade Capacity：4.3m3
  • Transport Package：Nude Packing
  • Specification：6600*3075*2995MM
  • Trademark：SEM
  • Origin：China
  • HS Code：87051092
  • Production Capacity：100 Units,Month

Description

ModelOperating Weigh t17,230 kgGround Pressure68 kPaGround Clearance410 mmMax.Slope30°EngineModelWeichai WD10G178E25Rated Power131 kW / 175 hpWorking ToolBlade TypeSUBlade Capacity4.3 m³ ( S 3.4 m³ )Blade Width3 , 140 mm ( S 3,490mm )Blade height1,240mm ( S 1,165mm )Max. Blade Digging Depth430 mmMax. Blade Lift Ground Clearance1,041 mmMax.Output Rimpull280 kNMaximum Digging Depth Of Ripper584 mmMaximum Clearance Under Tip615 mmPowertrainTypeElectronic control, Dual-path, Hydrostatic DriveTravel Speed- F/R0 - 10 km/hr (Infi nitely Variable Speed Control)Steering & BrakeHydrostatic Steering, Wet, Multiple-Disc BrakesMinimum Streeing Radius3610 mm (Counter-rotated avaliable)UndercarrigeTrack Shoe Width510 mmTrack Shoe Quantity37 pieceLength Of Track On Ground2,430 mmTrack Gauge1,880 mmTrack Roller Quantity6/SideCarrier Roller Quantity2/SideHydraulic SystemTypePilot ControlImplement Hydraulic System Pressure19 Mpa
