• Model NO.：PZ-5
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Original：China
• Warranty：1 Year
• Electric Motor Type Voltage：220V, 380V, 400V,440V, 50,60Hz
• Delivery Time：in Stock or 10 Days
• Transport Package：Wooden Case
• Trademark：ETERNOO
• HS Code：84743100

Basic Info.

Model NO. PZ-5 Certification ISO9001: 2000, CE Condition New Color Yellow Original China Warranty 1 Year Electric Motor Type Voltage 220V, 380V, 400V,440V, 50/60Hz Delivery Time in Stock or 10 Days Transport Package Wooden Case Trademark ETERNOO HS Code 84743100

Product Description

APPLICATION:

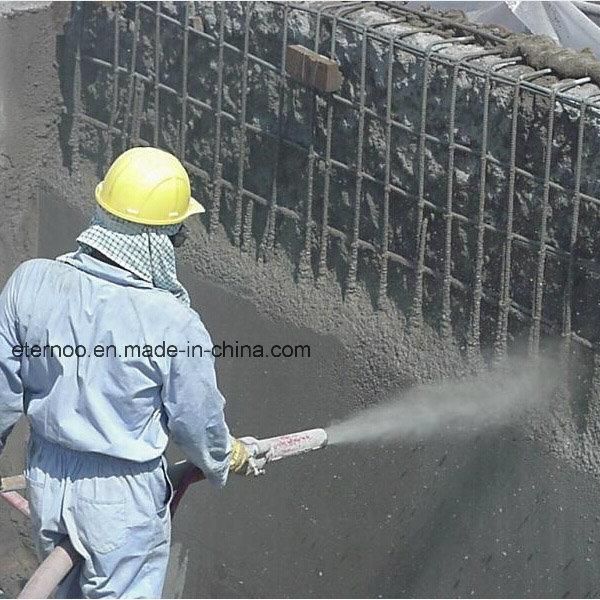

Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns' inner liner.

TECHNICAL DATA:
Output Capacity: 5 cubic meter/hour
Maximum Conveying Distance: 200 m (660 ft)
Desired Shotcrete Ingredient Ratio: Cement/sand and gravel < 0.4
Maximum Aggregate Size: 15 mm
Inner Diameter of Conveying Hose: 51 mm (2")
Working Compressed Air Pressure: 0.2 ~ 0.6 MPa
Conveying Air Consumption: 7 ~ 8 cubic meter / min)

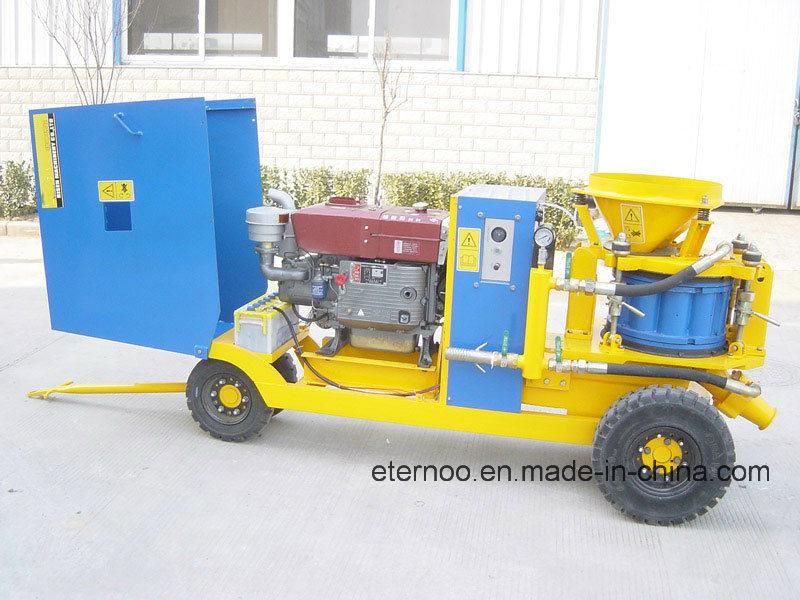

Diesel Engine: 7.7kW (10 HP)
Dimensions: 2255 x 750 x 1250 mm
Net Weight: 950 Kg


EATURES:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
5. Three drive models: By Electric motor, air motor or diesel engine.
6. CE safety standard.
