• Model NO.：YX620
• Type：Small Loader
• Transport Package：Container
• Specification：5827*2150*3019
• Trademark：ENSIGN
• Origin：China
• HS Code：84295100
• Production Capacity：5000 Units,Year

Bucket capacity1.0m3Total cycle time(lift, dump& lower)≤9sRated load2000kgDump height/Dump angle2518mmOverall operating weight6200kgDump distance/Dump angle946mmMax. traction force≥56kNMin. ground clearance293mmMax. breakout force≥58kNWheel base2260mmGrade ability30°Wheel tread1630mmMin. turning radius(outer side of the bucket)5143mmDeparture angle30°Min. turning radius(outer side of the tire)
 4661mmSteering angle(left & right)35°
Overall dimension (standard configuration)      mm  5827*2150*3019

Core componentsEngineDrive SystemmodelYC4D80-T20Torque converter typesingle stage, 3 elementstypeVertical, in-line, water cooling, four-stroke, naturally aspTransmission typefixed shaft, power shiftRated power58KWGears2 forward, 2 reverse  Main drive typespiral bevel gear, first reduction  Hub reduction typeplanetary  Drive axledry tpe axleSteering SystemBraking Systemtypeload sensing hydraulicService brakeAir-over-oil caliper discoil pump typegear pumpParking brakeflexible shaft internalWorking Device Hydraulic SystemTireControl typepilotSpecification 16/70-20-14PROil pump typegear pumpTread patterngeneral pattern

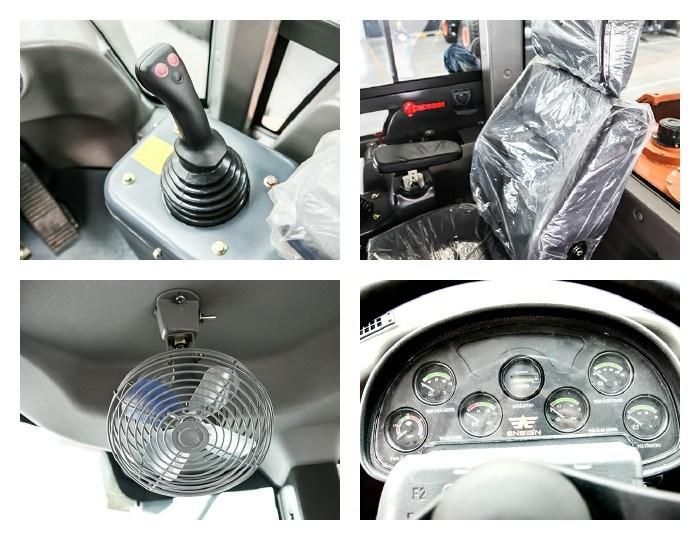

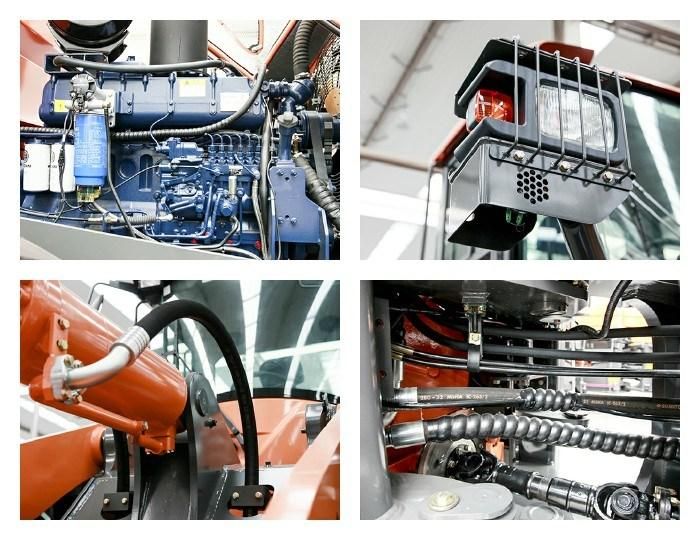

Details of the loader:

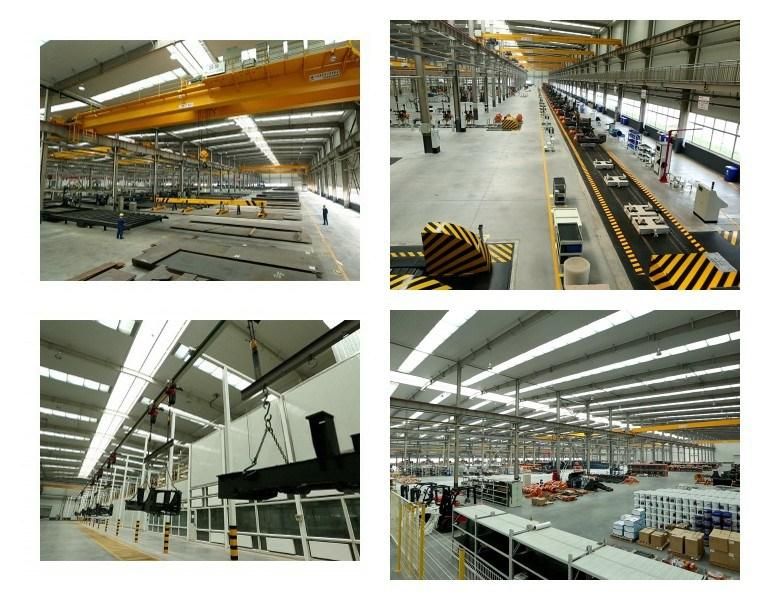

Our production line:


COMPANY OVERVIEW:

ENSIGN loaders on the professional international fair!
ENSIGN loadrs at working sites:


Certificates:




Our Service:

Why choose us?
1). The quality is guaranteed due to strong technical support, high quality component, advanced production line and strict quality control system.
2). One-stop service with a large spare parts warehouse and professional service team. No matter where you are, you are guaranteed of ENSIGN' s warm reception, trustworthy and efficient professional services and persistent care.

Other terms:
1). Delivery: 30 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF or CFR your destination for your choice
