600~1200mm Diameter Small Rotary Drilling Rig Ycr60d with Max Depth 28m

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Online Video Support
  • Warranty：One Year
  • Pressure Pile Driver Type：Hydraulic Pile Driver
  • Pile Hammer Type：Hydraulic Hammer
  • Power Source：Diesel
  • Motor Power：86kw

Base Info

  • Model NO.：YCR60D
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Track Shoe Width：600mm
  • Traction Force：104kn
  • Max Drilling Diameter：600~1200mm
  • Max Drilling Depth：28m
  • Total Working Weight：20t
  • Engine：Cu-Mmins
  • Transport Package：Nude Packing
  • Trademark：YUCHAI
  • Origin：China
  • Production Capacity：50units,Month

Description

Basic Info.

Model NO. YCR60D Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Track Shoe Width 600mm Traction Force 104kn Max Drilling Diameter 600~1200mm Max Drilling Depth 28m Total Working Weight 20t Engine Cu-Mmins Transport Package Nude Packing Trademark YUCHAI Origin China Production Capacity 50units/Month

Product Description

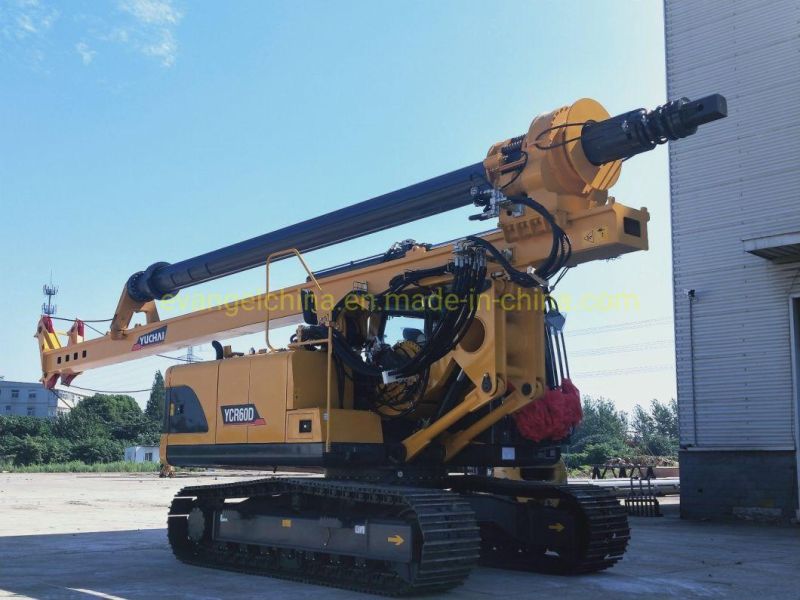

600~1200mm diameter small rotary drilling rig YCR60D with max depth 28m

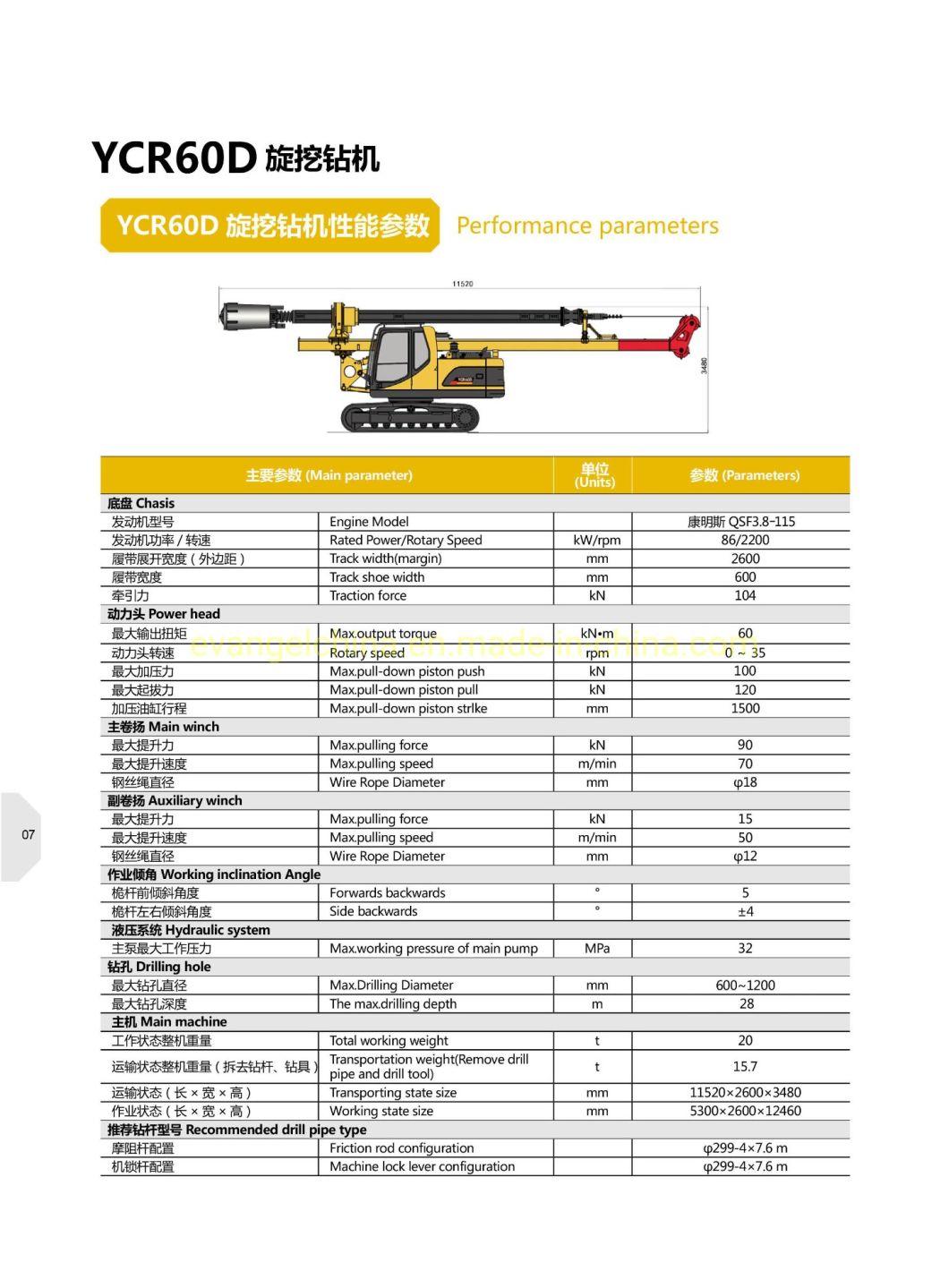

Parameters

Engine type:QSF3.8-115

Power/ revolution:86kW/2200rpm

Deployment speed (margin):2600mm

Track shoe width:600mm

Traction:104KN

(Power head)The maximum out torque:60kN·m

Power head revolution:0~35rpm

The maximum pressure increased:55kN

The maximum pullout force:80kN

Pressurizing oil cylinder stroke:1500mm
