Multifuctional Woodworking Machine Wood Sawing Machine Wood Planer Integrated Machine
Inner Mongolia Rephale Technology Co., Ltd.- Type：Cutting Machine
- Shotcrete Type：Dry
- Machining Process：Vacuum
- Structure：Rotor Type
- Feeding Height：1380mm
- Condition：New
Base Info
- Model NO.：120A,B 150B
- Transport Package：Wooden Case
- Specification：1590*1100*2100mm
- Trademark：Rephale
- Origin：China
Description
Basic Info.
Model NO. 120A/B 150B Transport Package Wooden Case Specification 1590*1100*2100mm Trademark Rephale Origin ChinaProduct Description
Woodworking machine wood sawing machine wood planer integrated machineBrif introduction
This machine can be a sawmill,a planer and wood working machine.It has diffirent models with diffirent motor power,

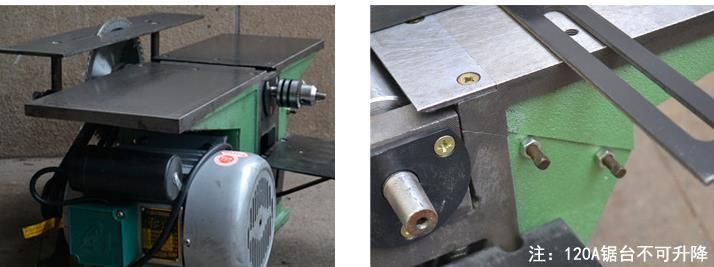

The table board is liftable,the saw table is also liftable,High quality copper core motor makes working efficiency.

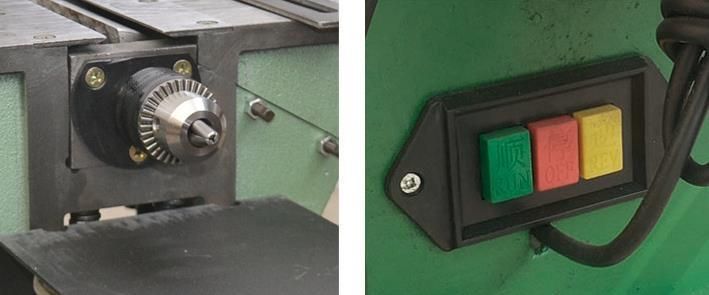

Driing cutting and planing itergrated.
parameter:
model:120A
RPM:3800r/m 220v 50hz,1.3kw
Max thichness for the plate:80mm depth:0.8mm with:120mm
tableboard size:560x225
packing size:580x300x235mm WEIGHT:38kg
model:120B
RPM:3800r/m 220v 50hz,1.3kw
Max thichness for the plate:80mm depth:0.8mm with:120mm
tableboard size:600x225
packing size:620X340X260mm weight:42kg
model:150B
RPM:3800r/m 220v 50hz,1.5kw
Max thichness for the plate:80mm depth:0.8mm with:150mm
tableboard size:680x300mm weight 53kg
