• Model NO.：YX636
• Type：Medium-sized Loader
• Trademark：ENSIGN
• Origin：China
• HS Code：84295100
• Production Capacity：20000 Units,Year

Bucket capacitym31.2~3.0(standard bucket 1.8)Total cycle time(lift, dump& lower)s≤9.2Rated loadkg3000Dump height/Dump anglemm/ °2950/45Overall operating weightkg10300Dump distance/Dump anglemm/ °1040/45Max. traction forcekN≥100Min. ground clearancemm371.5Max. breakout forcekN≥100Wheel basemm2700Grade ability°30Wheel treadmm1850Min. turning radius(outer side of the bucket)mm6055Departure angle°30Min. turning radius(outer side of the tire)mm5461Steering angle(left & right)°35Overall dimension (standard configuration)      mm 6868*2520*3255
Core components:EngineDrive Systemmodel
Weichai Deutz WP6G125E23Torque converter typeSingle stage, 3 elementstypeVertical, in-line, water cooling      four-stroke, direct injectionTransmission typeFixed shaft, power shiftRated power92KWGears4 forward, 2 reverse  Main drive typeSpiral bevel gear, first Reduction  Hub reduction typePlanetary  Drive axleDry type axleSteering SystemBraking SystemTypeLoad sensing hydraulicService brakeAir-over-oil caliper discOil pump typeGear pumpParking brakeFlexible shaft caliper discWorking Device Hydraulic SystemTireHydraulic system pressure16MpaSpecification 17.5-25Control typeMechanicalTread patternGeneral patternOil pump typeGear pump

Main Features of YX636 wheel loader:

Efficiency

• High travel speed
• Small turning radius and good adaptability to various working sites
• Short total cycle time with flexible movement

Safety

• Reinforced ROPS & FOPS cab
• Reliable braking system
• Safe and comfortable operating environment

Energy Saving & Green Initiative

• Remarkable fuel and energy conservation
• Optimum radiation
• Low noise

Reliability & Durability

• Reliable drive system
• Upgraded hydraulic system
• New design concept of electrical system
• Optimal designed structural components

Comfort & Convenience

• Cab space enlarged by 15%
• Low noise, shock-absorbed and dust proof cab
• Back-flipped engine hood, easy for maintenance
• Humanization-designed operating lever

Energy Saving & Green Initiative
       Weichai WP6G125E23 engine is adopted for strong power, large torque reserve and excellent performance. Pumps with large displacement are equipped, which greatly increases working efficiency and decreases fuel consumption and noise, together with short total cycle time.

Reliability & Durability

• Structural components are of advanced design and manufacture, featuring excellent impact resistance, reliability and load capacity.
• Countershaft transmission is adopted, which is compact in structure. With high transmission efficiency, low failure rate, tiny impact of shifting and easy maintenance, it suits well to 3 MT loaders.



ENSIGN in the world:

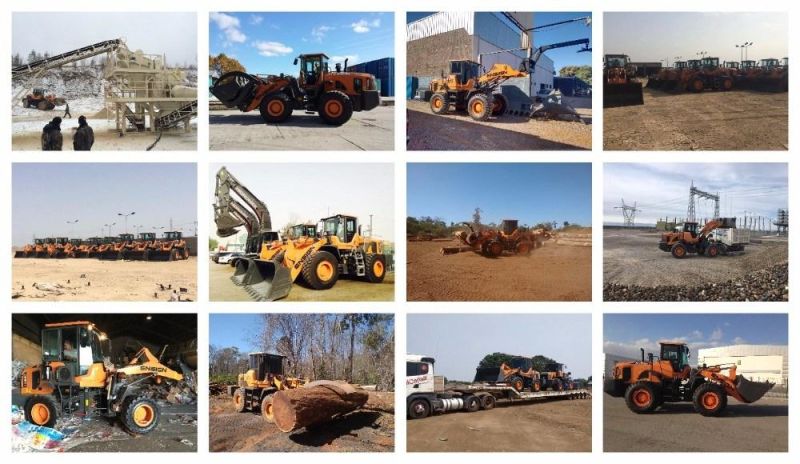

ENSIGN wheel loaders have been exported to more than 30 overseas countries like USA, Australia, Russia, Brazil, Argentina, Saudi Arabia, Iraq, Indonesia, The Philippines, Sudan, Ghana etc. Ensign has built a win-win relationship with dealers in these markets. Thanks to the both efforts, Ensign is becoming more and more popullor in the world.




Our company:

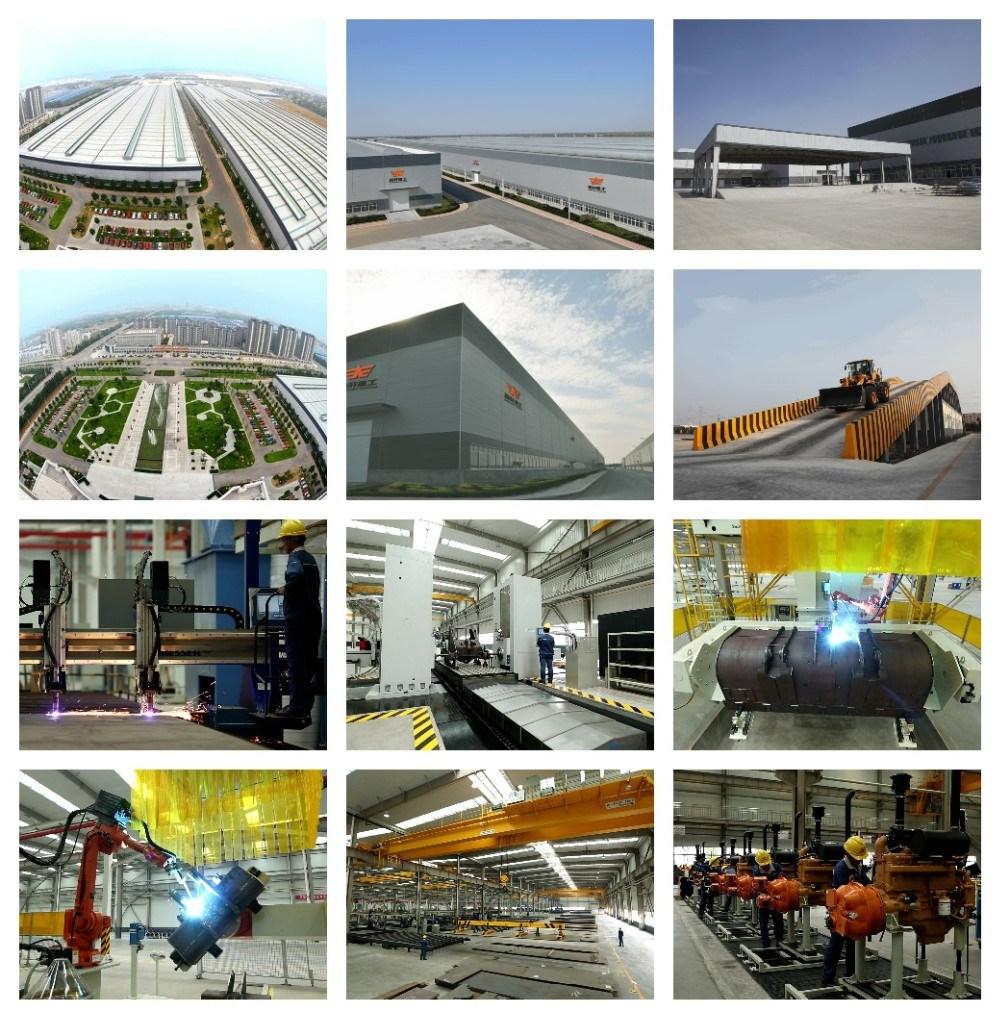

We have the longest wheel loader workshop in China and comprehensive facilities.  The testing ground is also biggest in China. By the advanced processing technology and strict quality control system, we can ensure each product delivered to the customers is with the best quality.




Our Service:
