• Model NO.：XS183J
• Power(W)：115kw
• Compacting Width：2390 mm
• Load Applied on Front Drum：9000 Kg
• Exiting Force(High/Low)：320,160 Kn
• Weight：18000kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：6320*2300*3200mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XS183J Power(W) 115kw Compacting Width 2390 mm Load Applied on Front Drum 9000 Kg Exiting Force(High/Low) 320/160 Kn Weight 18000kg Transport Package Comply with Export Packaging Requirements Specification 6320*2300*3200mm Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description

Product Description

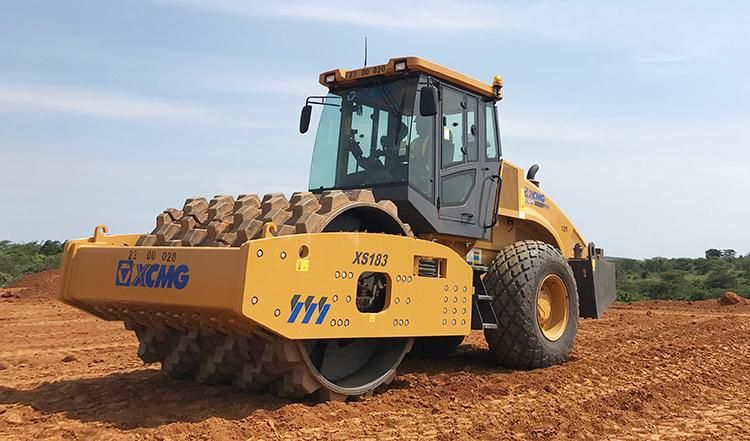

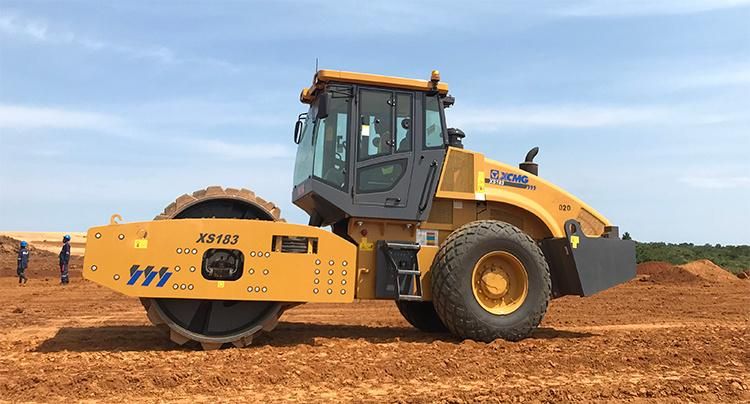

XCMG Official 18 ton single drum road roller XS183J



XCMG XS183J is the most popular model of China 18t vibratory compactor ,is a kind of heavy duty self-propelled vibratory compactor.

It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.



Reliable and durable hydraulic system The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.



Energy-saving and environmental friendly power Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.



High efficient and reliable vibratory compacting system Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum. The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate. Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.



Convenient maintenance The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible. The high positioned air intake prolongs the maintenance interval of the air filter.

Specifications

Type	Unit	XS183J
Operating weight	kg	18000
Load applied on front drum	kg	9000
Compacting width	mm	2300
Static linear load	N/cm	422
Vibration frequency(Low/High)	Hz	28
Nominal amplitude(High/Low)	mm	1.9/0.95
Exiting force(High/Low)	KN	320/160
Travel speed	km/h	2.54~10.51
Steering angle	°	±33
Swing angle	°	±11
Theoretical  gradeability	%	50
Min. Outer turning radius	mm	6500
Engine model		Shangchai
Engine power	kw	115
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	310

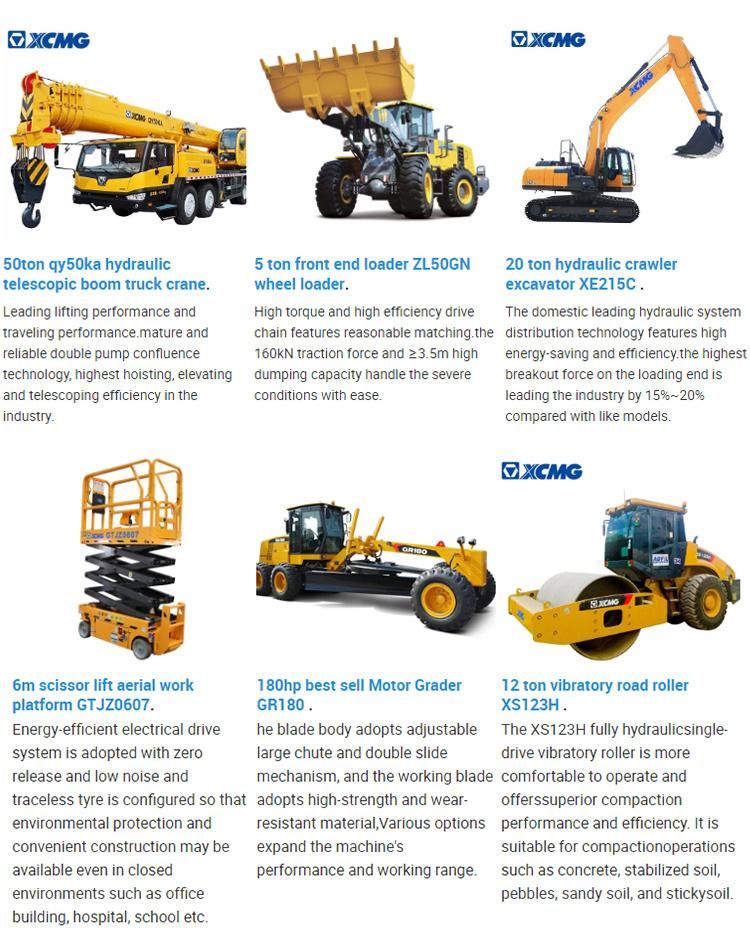

Top Selling
