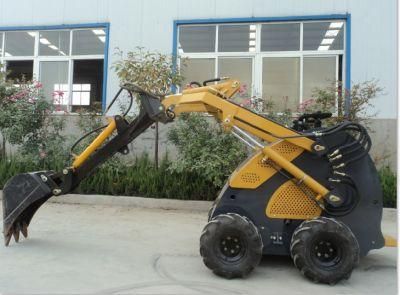

Mini Digger Like Dingo with B&S Engine
Taian Hengrong Import and Export Co., Ltd.- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Certification：CE
- Condition：New
- Style：Wheel or Crawl Can Be Choosed
- Overall Dimension：2206*1150*1233mm
Base Info
- Model NO.：HR300
- Control System：Hydraulic System
- Driven：4 Drivers
- Transport Package：LCL
- Specification：CE
- Trademark：HR
- Origin：Shandong Taian
- HS Code：842951000
- Production Capacity：30 Per Month
Description
Engine Model B&SRated Power(KW) 15.435(23HP) Rotating speed(rpm) 3600 noise (Db) LESS95 Hydraulic system System Pressure(Mpa) 17 Working time(s) lift tipping bucket landing 4.27 1.34 3.31
Performance parameters
metric imperial Rated Load 300 kg 441 lb Bucket Capacity 0.15 m 3 5.33 ft 3 Max heavily lift 375 kg 827 lb Max.Travel Speed 0-5.5 km./h 0-3.4 mile/h
Operating Weight
Solid tyres bodywork 940 kg 2072 lb
Ordinary tire body 886 kg 1953 lb
Widened tire body 850 kg 1874 lb
Caterpillar vehicle 1068 kg 2355 lb
Tire model Solid tyres 16*6-8 Ordinary tire 5.00-8 Widened tire KT-302 18*9.5-8 6p/TL Herringbone engineering births 18*6.5-8
rim Solid tyres 4.33R-8 Ordinary tire 3.50D Widened tire 8*6.5 Fuel tank capacity 25 L Oil tank capacity 27 L Engine displacement 627 ml Bucket breakout force 550Kg Tipping load 325kg
