• Model NO.：RDCM500-17EHS
• Vibrating Amplitude：1.0mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Capacity of Discharge：500L
• Capacity of Loading：750L
• Loading Hopper：Wire Rope Slide Hoisting
• Drum Rotating Speed：13-15 r.p.m
• Capacity Per Hour：18-22m3,H
• Mixing Motor：11kw
• Hoist Motor：5kw
• Max. Towing Speed：20km,H
• Overall Size：3900*2300*3750mm
• Weight：2350kg
• Transport Package：Nude in Container
• Specification：ISO9001
• Trademark：KUDAT
• Origin：China
• HS Code：8430
• Production Capacity：100 Units,Month

Basic Info.

Model NO. RDCM500-17EHS Vibrating Amplitude 1.0mm Certification ISO9001: 2000, CE Condition New Color Yellow Capacity of Discharge 500L Capacity of Loading 750L Loading Hopper Wire Rope Slide Hoisting Drum Rotating Speed 13-15 r.p.m Capacity Per Hour 18-22m3/H Mixing Motor 11kw Hoist Motor 5kw Max. Towing Speed 20km/H Overall Size 3900*2300*3750mm Weight 2350kg Transport Package Nude in Container Specification ISO9001 Trademark KUDAT Origin China HS Code 8430 Production Capacity 100 Units/Month

Product Description

Description:

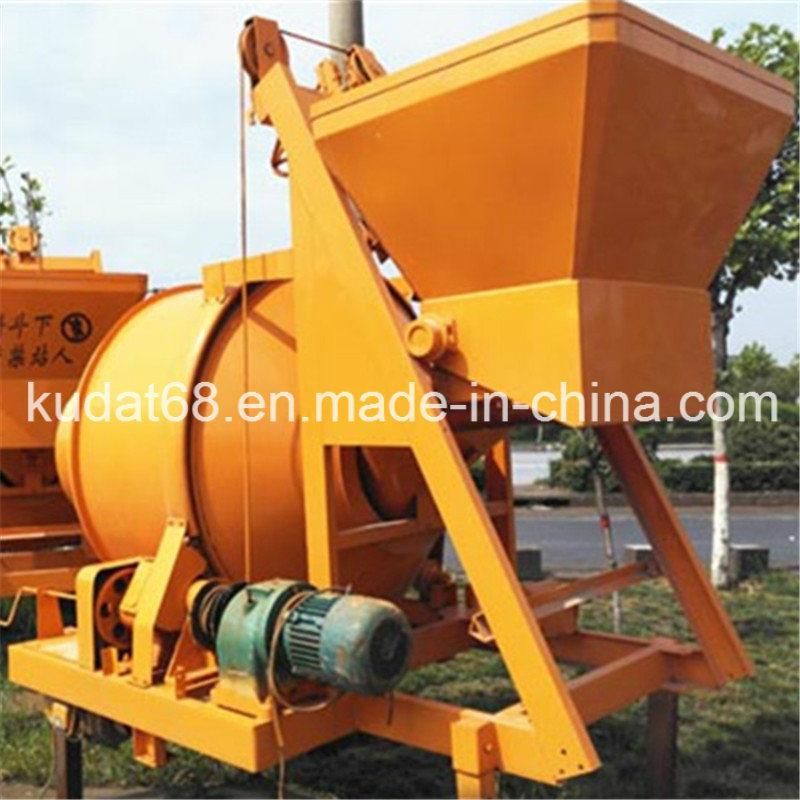

Diesel Concrete Mixer  is  mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.

Diesel Concrete Mixer is featured by diesel engine power, wire rope tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

RDCM350-11D diesel concrete mixer
Capacity of discharge 350L
Capacity per hour 10~14m3
Power of diesel engine 15HP
Diesel and Wire rope tipping hopper

Model	RDCM500-17EHS(JZC500)
Power supply (V/HZ)	380/50
Power of mixing electromotor (KW)	11
Power of lifting electromotor (KW)	5.5
Pump power (KW)	0.75
Charge capacity (m3)	0.8
Discharge capacity (m3)	0.5
Rotating speed of drum (r/min)	14.7
Productivity (m3/h)	18-20
Total weight (kg)	3400
Dimension (transportation) (mm)	3400*2300*3000
