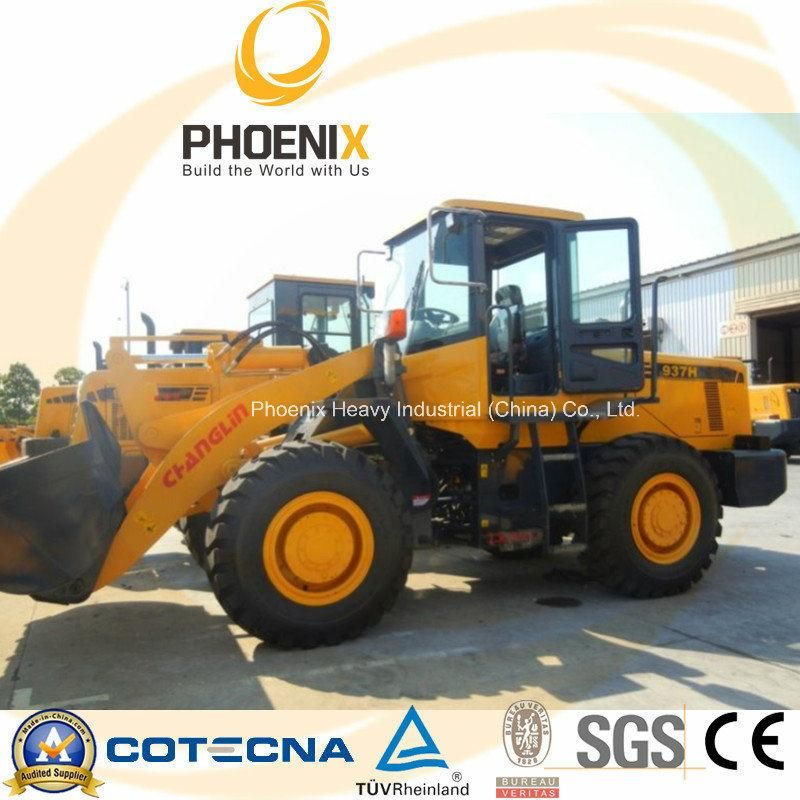

• Model NO.：ZL30H
• Condition：New
• Color：Orange
• Engine：Cummins Engine
• Transport Package：Nude Packing
• Specification：CE, ISO9001
• Trademark：CHANGLIN
• Origin：China Mainland
• HS Code：84295100
• Production Capacity：10, 000units,Year

Overall Dimension1
Length(with bucket on ground)7425(mm)2
Width(to outside of wheels)2305(mm)3
Bucket width2462(mm)4
Height(To the top of the cab)3095(mm)5
Wheel base2750(mm)6
Tread1855(mm)7
Min. ground clearance370(mm)
Main Technical Specification1
Rated load3000(Kg)2
Operating weight10200KG3
Rated bucket capacity1.7(m 3 )4
Max. breakout force96kN5
Max. dump clearance2850(mm)6
Dump reach1030(mm)7
Dump angle at any position≥45 08
Min. turning radius

(1) Outside of bucket5600(mm)
(2) Outside of rear wheel5205(mm)9
Pivot angle frame38 + 1 010
Oscillating angle of rear axle+ 11 o11
Lifting time of bucket≤5.1(sec.)12
Lowering time of bucket≤3.0(sec.)13
Dumping time≤1.1(sec.)14
Traveling speed(Km/h),3 forward and 3 reverse

(1) 1st gear forward7.3
(2) 2nd gear forward15.7
(3) 3rd gear forward35
(1) 1st gear reverse7.8
(2) 2nd gear reverse16.8
(3) 3rd gear reverse36
Diesel engine1
ModelDongfeng Cummins 6BT5.9-C1202
TypeDirect injection. Turbocharged. Water cooling3
Rated output87(KW)4
Inter-bore of cylinder/stroke102/120 (mm)5
Total exhaust of cylinder5.9 (L)6
Voltage of starting motor24(V)7
Rated speed2200(r/min)8
Max. Torque440(N.M)/1500rpm9
Starting typeElectric10
Min. specific fuel consumption220(g/Kw.h)

Changlin wheel loader models are as follows:

Changlin Wheel Loader

Model

Engine Model

Rated power

Standard bucket capacity

Operating weight

ZL30H

Dongfeng

87KW

1.7m³

10200kg

933

Yuchai YC6B125-T20

92KW

1.7m³

10200kg

947H

Dongfeng

128KW

2.3m³

13200kg

957H

Shangchai C6121

162KW

3.0m³

16700kg

967H

Shangchai

177KW

3.5m³

18600kg
