• Model NO.：SYM5180THBES 30C-8
• Condition：New
• Color：Yellow Red etc
• Empty Weight：18000kg
• Vertical Reach：30.1m
• Horizontal Reach：26.5m
• Reach Depth：15.2m
• Pressure：6MPa
• Axle：Two
• Transport Package：Nude Packing
• Specification：10690x2500x3760mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：50units,Month

Basic Info.

Model NO. SYM5180THBES 30C-8 Condition New Color Yellow Red etc Empty Weight 18000kg Vertical Reach 30.1m Horizontal Reach 26.5m Reach Depth 15.2m Pressure 6MPa Axle Two Transport Package Nude Packing Specification 10690x2500x3760mm Trademark EVANGEL Origin China Production Capacity 50units/Month

Product Description

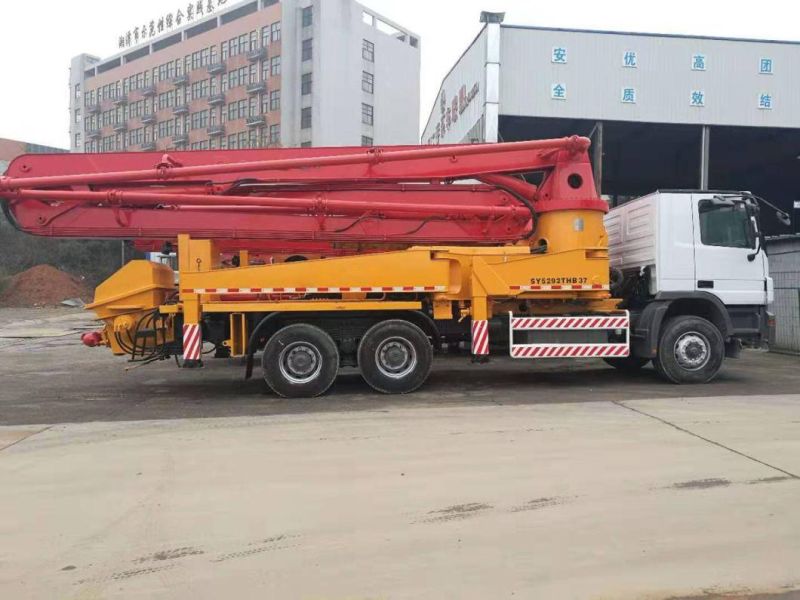

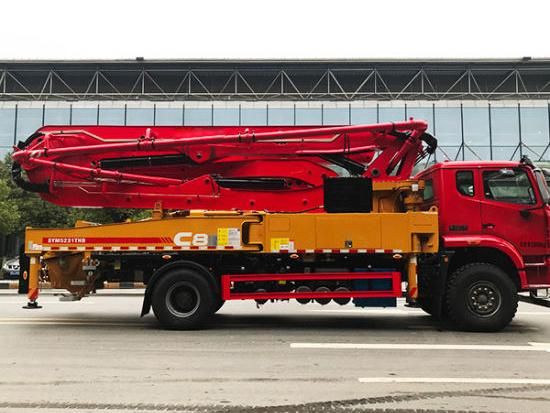

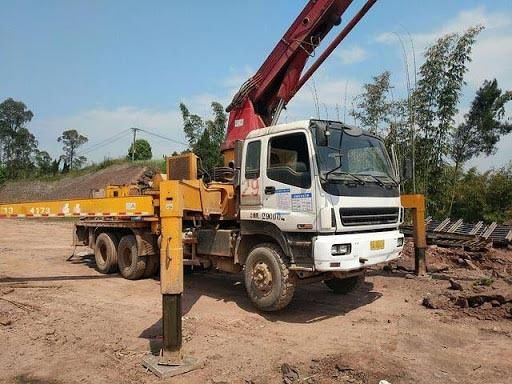

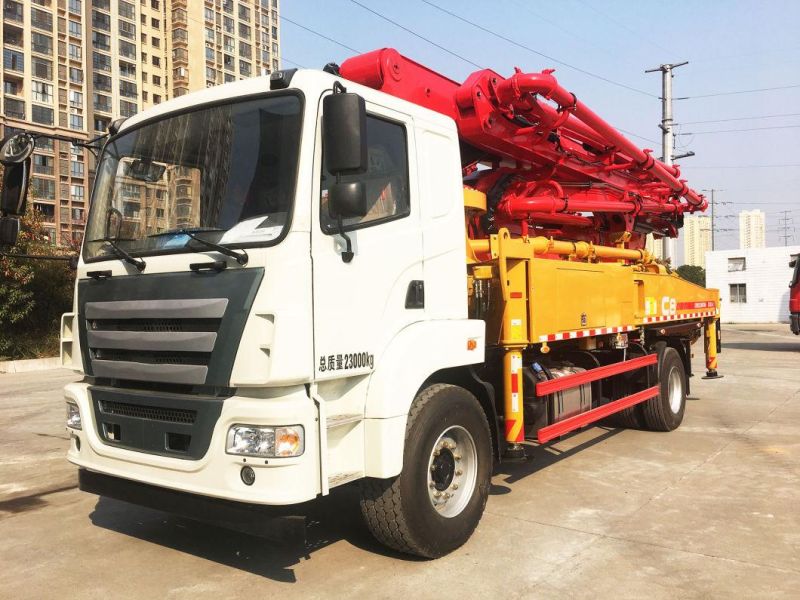

25m/30m/37m Small concrete pump truck Cheap Factory Price

Energy-saving Technology
When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.
Anti Overswing Technology
To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.
Longer Life Time Wearing Parts
Delivery pipe
Discharge port/transition bushing
Concrete piston
Wear plate/cutting ring
Delivery cylinder
Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Safety Protection Technology
Overload protection for boom cylinders
Agitator safety switch off
Boom interference preventing technology

SYM5180THBES 30C-8
Length: 10690mm
Width: 2500mm
Height: 3760mm
Empty Weight: 18000kg
Vertical Reach: 30.1m
Horizontal Reach: 26.5m
Reach Depth: 15.2m
Output: 101m³/h
Pressure: 6MPa
Chassis Model: SYM1180T1E
