• Model NO.：SEM
• Travel Speed：35cm,s
• Centrifugal Force：30.5KN
• Certification：EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Nude Package
• Specification：6250*2310*3200 mm
• Trademark：SEM
• Origin：China

Main Specifications

Emission

China StageII

Standard rated power-gross(kW)

97.5

Rated speed (r/min)

2200

Peak torque/speed-gross(N.m/rmp)

560/1400-1600

Sound level-spectator (dB(A))

112

Sound level-operator position with cab  (dB(A))

86

Compaction (% of XS122)

100

Composite work cycle fuel consumption (1/hr)(% of XS122)

100

Ambient capability-STD sea level (Deg C)

Ambient capability-HA sea level (Deg C)

49

Ambient capability-Cold weather (Deg C)

-10

Operating Specifications

Machine mass w/std config (kg)

12000±3%

Weight at drum w/std config (kg)

6900±3%

Weight on rear axle (kg)

5100

Static linear load (N/cm)

310

Max.grade ability w/o vibbration ((%)

45

Articulated angle (°)

33±1

Turning radius inside drum edge (mm)

5990

Compaction width (mm)

2130

Ground clearance (mm)

442

Travel speed

Lo range (km/h)

0 to 5.5

Hi range (km/h)

0 to 12

Hydraulic cycle time

Full turn time (s)

6±0.5

Vibratory system

Freqency-hi  (HZ)

33

Freqency-lo (HZ)

30

Amplitude-hi (mm)

1.80

Amplitude-lo (mm)

0.90

Centrifugal force-hi (kN)

245

Centrifugal force-lo (kN)

150

Dimensions

Machine dimensions (mm)

5815*2290*3130

Oscillation angle (°)

10±1

Wheelbase (mm)

2900

Tread width (mm)

1600

Drum width (mm)

2130

Drum diameter (mm)

1600

Tire specs

23.1-26 12PR12

Tire pressure setting (Mpa)

0.35

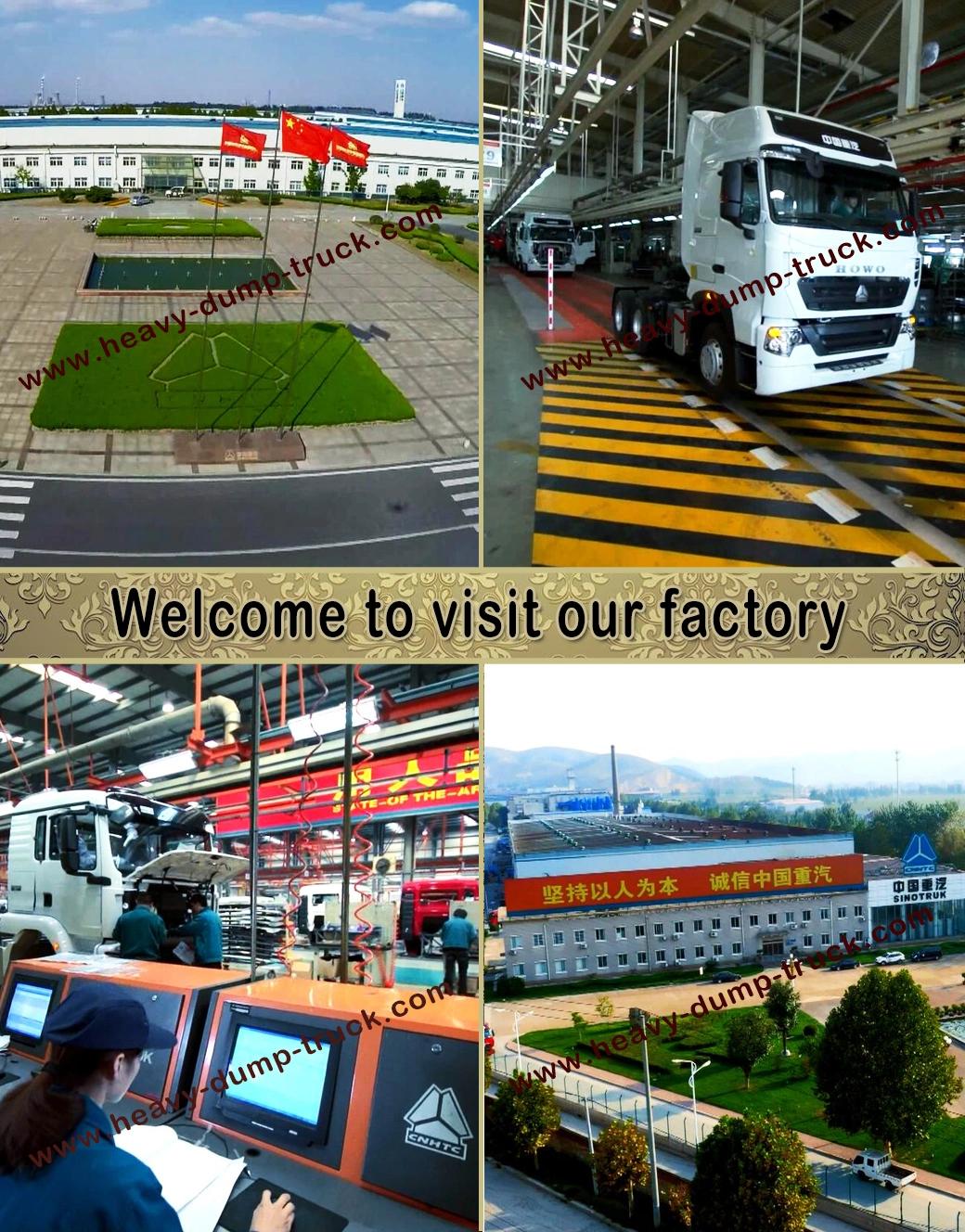

Our company
Jinan Quanyu Import and Export Co., Ltd. is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce, and our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck.In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
