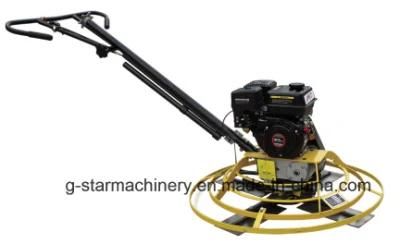

Walk Behind Trowelling Machine (WH80/100)

NANTONG ANT MACHINERY CO., LTD.
  • Type：Power Trowel
  • Shotcrete Type：Wet
  • Machining Process：Welded Molding Machine
  • Structure：Rotor Type
  • Productivity：180m²,h
  • Feeding Height：1390mm

Base Info

  • Model NO.：WH80,100
  • Vibrating Amplitude：1.6mm
  • Certification：CE
  • Condition：New
  • Color：Yellow
  • Working Diameter：800-980mm
  • Speed：60-100,125-140
  • Transport Package：Plywood Case,Wood Case
  • Specification：CE
  • Trademark：G-STAR
  • Origin：China
  • HS Code：84294090
  • Production Capacity：300PCS,MONTH

Description

Basic Info.

Model NO. WH80/100 Vibrating Amplitude 1.6mm Certification CE Condition New Color Yellow Working Diameter 800-980mm Speed 60-100/125-140 Transport Package Plywood Case/Wood Case Specification CE Trademark G-STAR Origin China HS Code 84294090 Production Capacity 300PCS/MONTH

Product Description

We have powerful ability and technical ability. Our power trowel have following characteristics:
1. This power trowel is equipped with over-built gearbox assures long service life.
2. Heavy-weight design of this power trowel to assure a superior finish.
3. Height adjustable handle assure operator comfort and easy control.
4. Lifting tube as standard feature allows power trowel to be transported on the job site with only two people.
5. Equipped with centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit.
6. Featured with screw control ensuring precise blade adjust.
7. Throttle control is available as optional.

Power Trowels WH80/100 (walk behind)
Engine: Loncin 5.5HP
Dia: 800-980mm
Max Output: 5.5HP
Speed: 60-100(with pan disc)/125-140(with blade) rpm
Blade Adjustment: 0-15°
Optional engines: B&S, Honda, Loncin, Robin, Chiese engine


Company introduction

Nantong G-Star International Trading Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta

The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields.

Looking forward to your inquiry!
