• Model NO.：QY100K
• Base Boom：11m
• Min. Rated Working Radius：3m
• Max. Grade Ability：40%
• Max. Lifting Torque：1764kn.M
• Brake Distance：24m
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• HS Code：8705109100
• Production Capacity：100PCS,Month

Basic Info.

Model NO. QY100K Base Boom 11m Min. Rated Working Radius 3m Max. Grade Ability 40% Max. Lifting Torque 1764kn.M Brake Distance 24m Transport Package Nude Specification CE Trademark KUDAT Origin China HS Code 8705109100 Production Capacity 100PCS/Month

Product Description

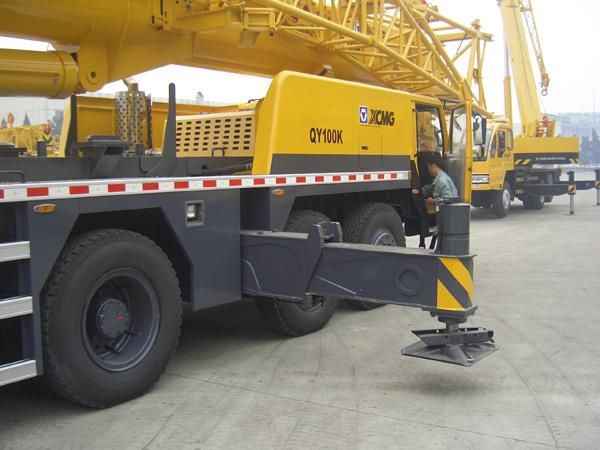

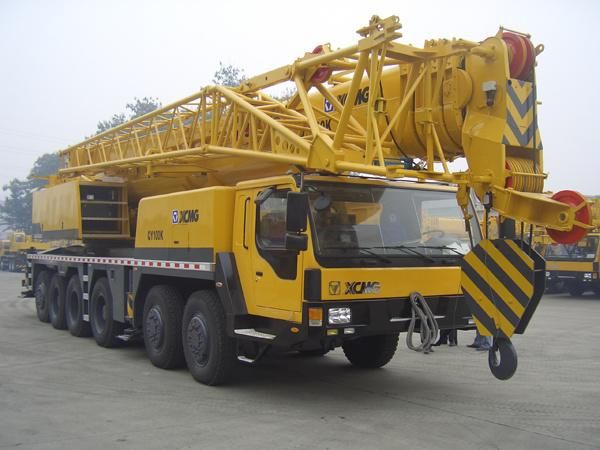

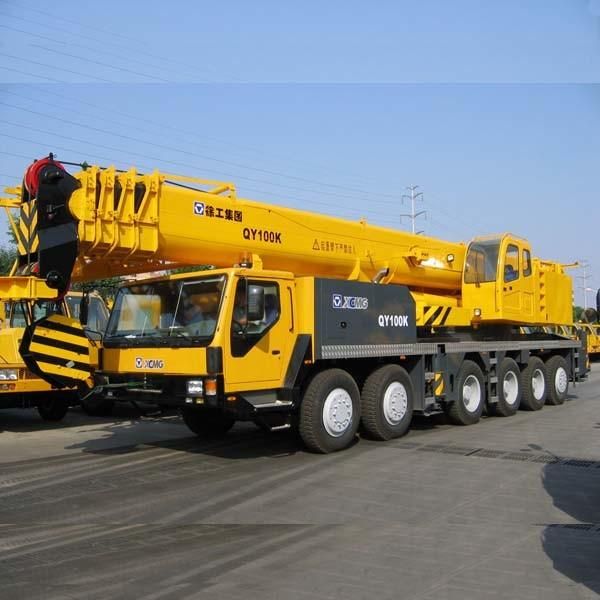

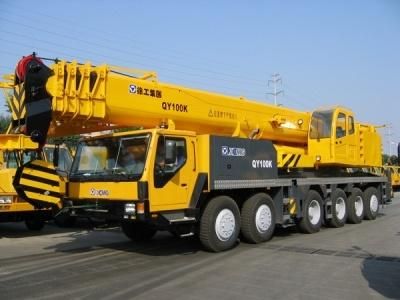

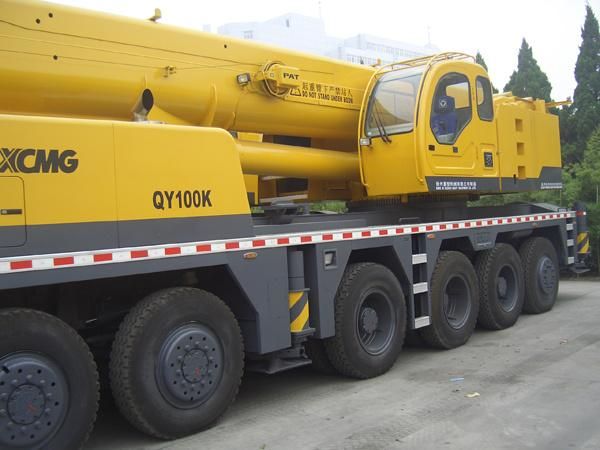

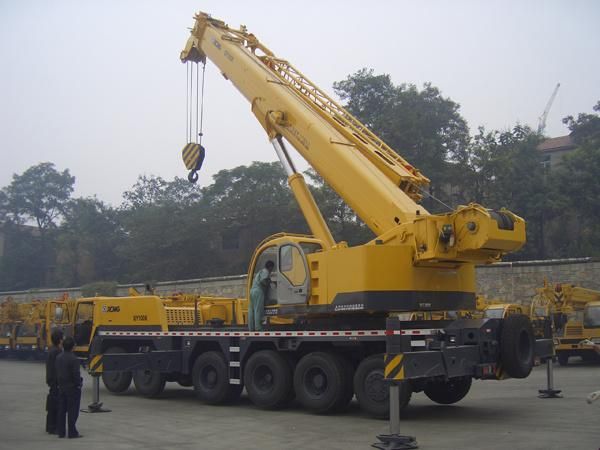

Main Specification for the QY100K Truck Crane
Technical Data for Lifting Operationsss
Classificatory Item Unit Parameter
Outline dimension
Overall length  mm 15230
Overall width  mm 3000
Overall height  mm 3860
Mass  Total mass in travel state  kg  65000
Travel performance
Travel
speed
Max. travel speed  km/h  75
Min. stable travel speed  km/h  0.5
Turning
diameter
Min. turning diameter  m  24
Min. turning diameter at boom tip  m  26.6
Power ratio  kW/t  7.3
Min. ground clearance  mm  310
Approach angle  (°)  23
Departure angle  (°)  15
Braking distance (at 30km/h)  m  ≤10
Max. grade-ability  %  40
Power
Engine rated output  kW/(r/min.)  324/1800
Engine rated torque  N.m/(r/min.)  2100/1200
Main Technical Data for Lifting Operation
Classificatory Item Unit Parameter
Lifting
performance
Max. total rated lifting capacity  t  100
Min. rated working radius  m  3
Max. load moment
Base boom  kN.m  3238
Fully extended boom  kN.m  1670
Fully extended boom + Jib  kN.m  1127
Outrigger span
Longitudinal  m  7.56
Lateral  m  7.6
Boom length
Base boom  m  12.8
Fully extended boom  m  48
Fully extended boom + Jib  m  48 + 18.1
Jib offset angle  °  0, 15, 30
Working
speed
Boom elevating time  Boom raising  s  60
Boom telescoping time  Full extending / Full retracting  s  140
Max. swing speed  r/min  2
Hoist speed (single line at 4th layer)
Main winch  m/min  110
Aux. winch  m/min  85
