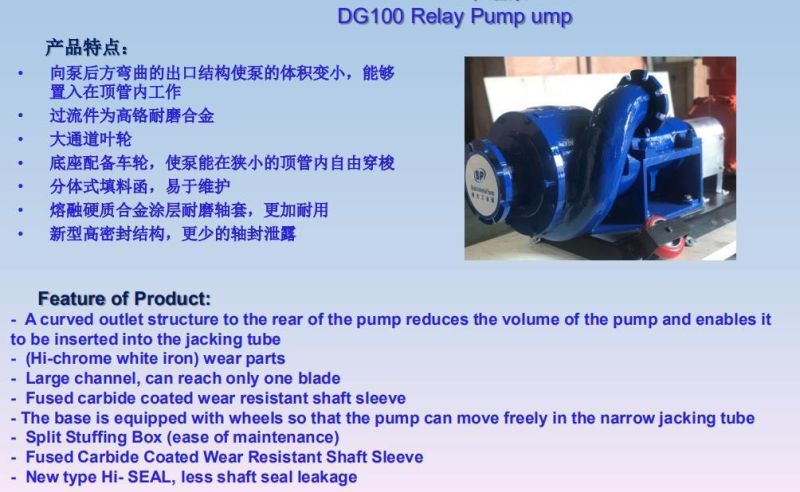

Anti-Abrasion Tunnelling Application Relay Pump

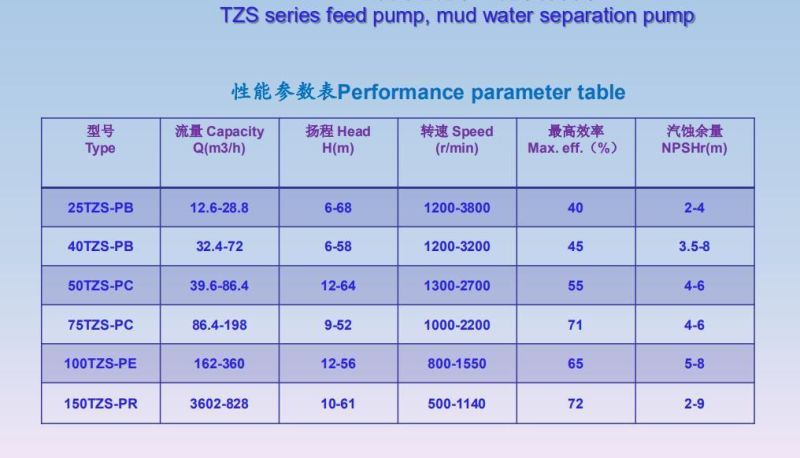

JIANGSU XUAN XUAN HEAVY MACHINERY CO., LTD.- Type：75tzs-Pd
- Capacity：25-55 Ls
- Head：9-52m
- Speed：R,Min
- Efficiency：30%-71%
- Inlet Size：100mm
Base Info
- Outlet Size：75mm
- Max.Diameter of Flowed Particle Flowed：62mm
- Transport Package：Wooden Case
- Specification：Overall dimension: 4180*5200
- Trademark：Xuanxuan
- Origin：Jiangsu Changzhou
- HS Code：8430313000
- Production Capacity：5000 Sets Per Year
Description
Basic Info.
Outlet Size 75mm Max.Diameter of Flowed Particle Flowed 62mm Transport Package Wooden Case Specification Overall dimension: 4180*5200 Trademark Xuanxuan Origin Jiangsu Changzhou HS Code 8430313000 Production Capacity 5000 Sets Per YearProduct Description

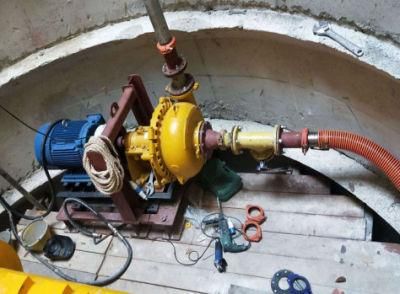

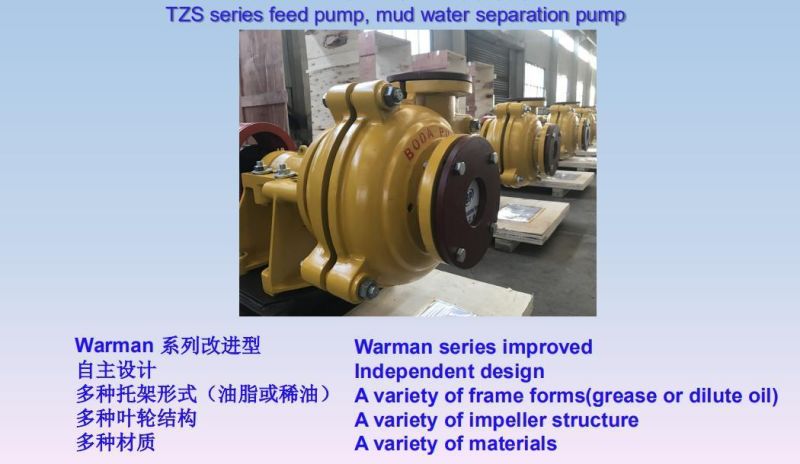

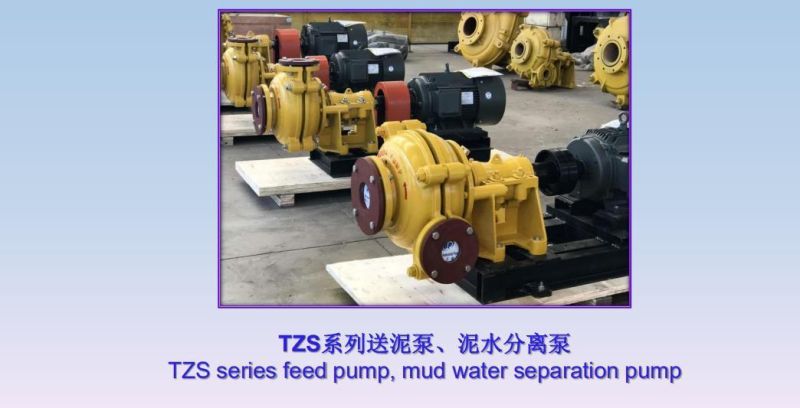

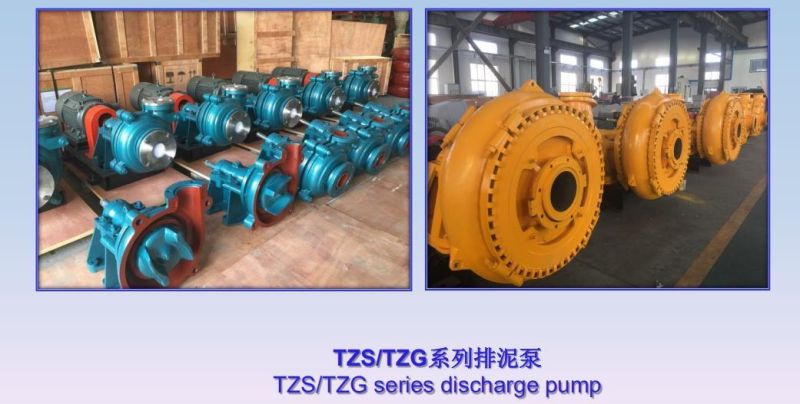

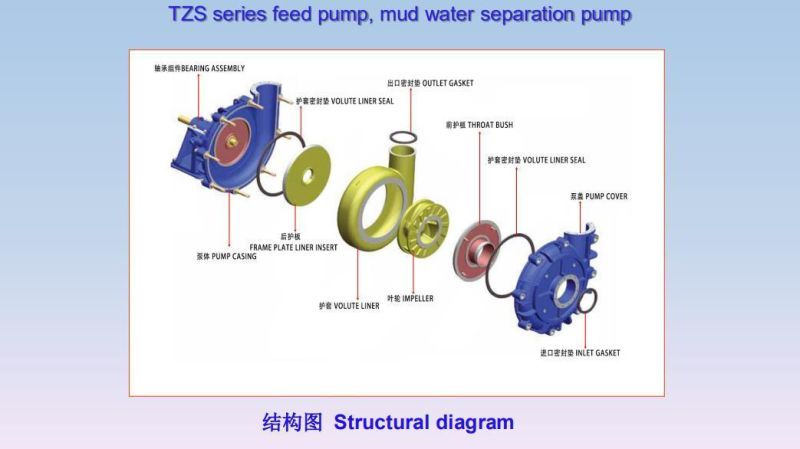

Anti-Abrasion Tunnelling Application Pump Type TZS series pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed to handle high abrasive, high density slurries in tunnel shield and pipe-jacking.Product Feature

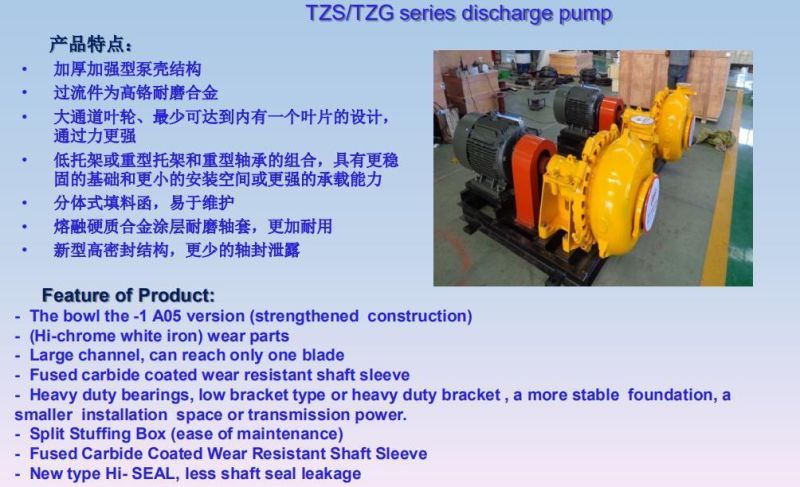

-High abrasion metal wet end parts, long service life.

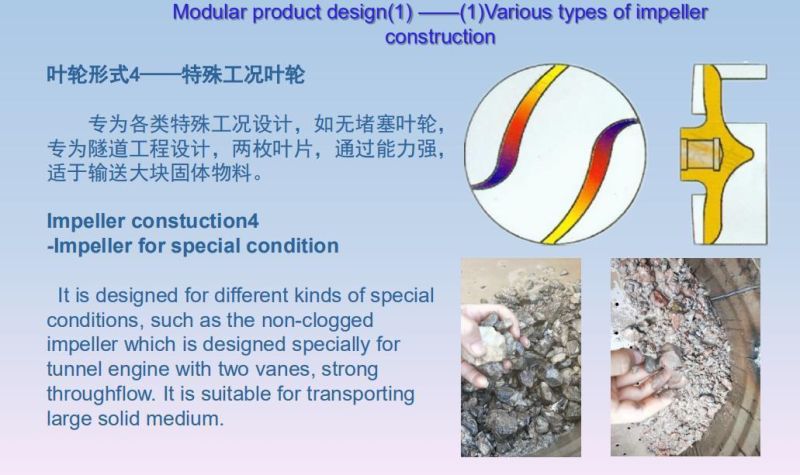

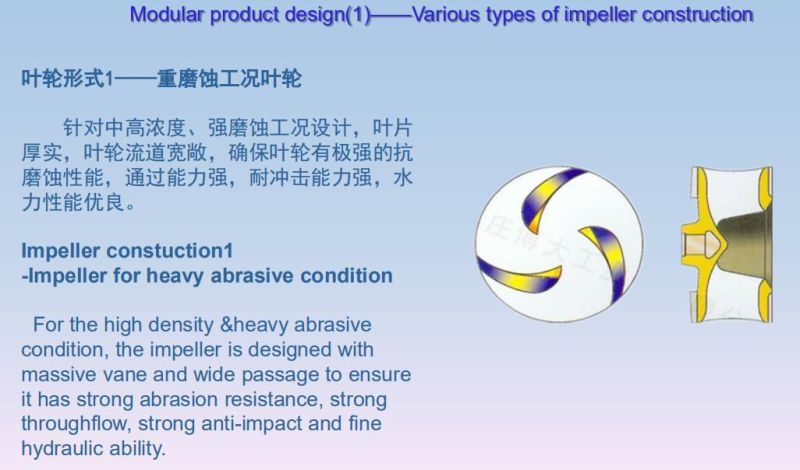

-Wide options for impeller(special designed large channel impeller to meet very big particle.
-Various types of pump seals to suit different working condition,no leakage.
-Discharge branch can be positioned at intervals of 45 degrees
-Can be installed in multistage series
