China EXW Price Lutong Sem Shantui Lonking Liugong Single Double Drum Compactor 3 Ton 8 Ton 15 Ton 23 Ton Road Roller (LTS723H)
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Support or Field Maintenance
- Warranty：One Year Warranty
- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Slot Grind
Base Info
- Model NO.：LTS723H
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Centrifugal Force：40KN
- Certification：CE, ISO 9001:2008
- Condition：New
- Operating Mass：23000 Kg
- Static Linear Load：560 N,Cm
- Vibration Amplitude：1.9,0.95 mm
- Vibration Frequency：28,35 Hz
- Gradeon Ability：30%
- Diesel Power：140 Kw
- Transport Package：Container
- Specification：6665*2340*3250mm
- Trademark：Lutong
- Origin：Henan, China
- Production Capacity：100units,Month
Description
Overview

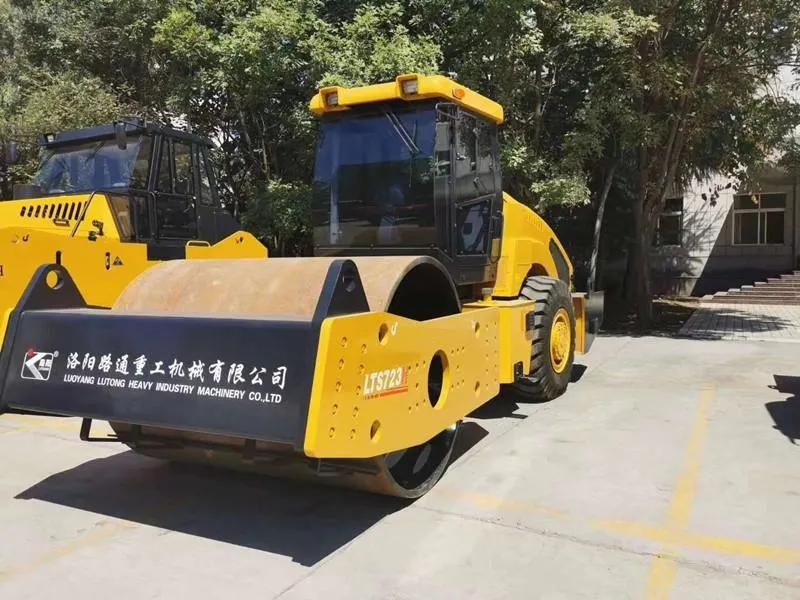

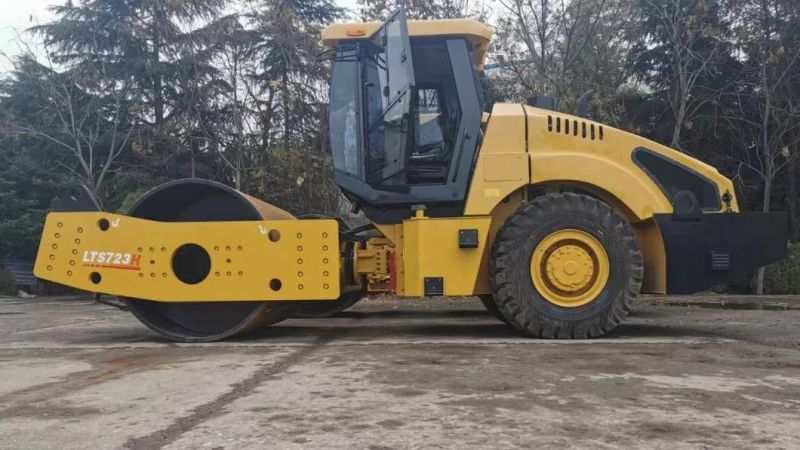

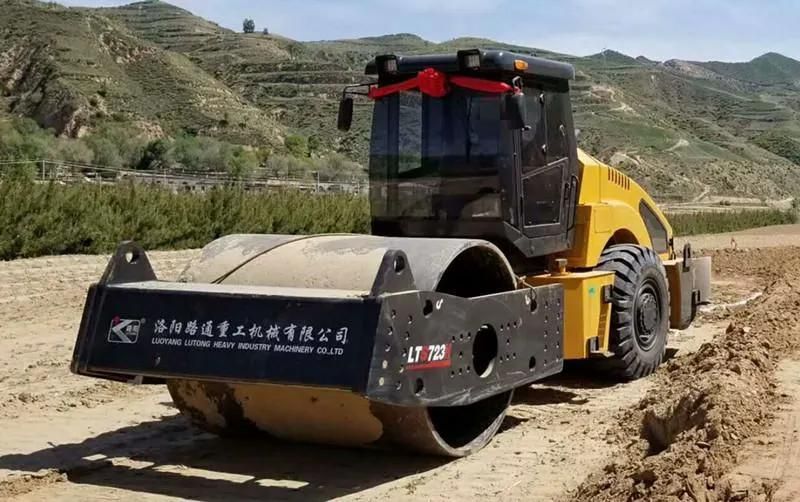

Product DescriptionA full hydraulic vibratory roller produced with foreign advanced technology and imported key components. This machine is an ultra-heavy vibratory road roller with large working quality and strong excitation force, so it is the best compaction equipment in large-area, high-quality, high-efficiency, and mechanized construction. It is suitable for rolling non-cohesive materials, such as gravel, crushed stone, sand and gravel mixture, sandy soil, etc. It also has a good compaction effect on low-material materials. This machine is an ideal equipment for foundation compaction in projects such as highways, mine roads, large dams, important ports and industrial sites.Detailed Photos
MODEL
LTS723H
Operating mass
Kg
23000
Static linear load
N/cm
560
Vibration amplitude
Mm
1.9/0.95
Vibration frequency
Hz
28/35
Centrifugal force
kN
410/300
Travel speed
km/h
11
Gradeon ability
%
30
Turning radius
mm
7500
Overall dimension
mm
6665*2340*3250
Vibration round width
mm
2130
Wheelbase
mm
3500
Diesel model
WP6G190
Diesel power
KW
140
